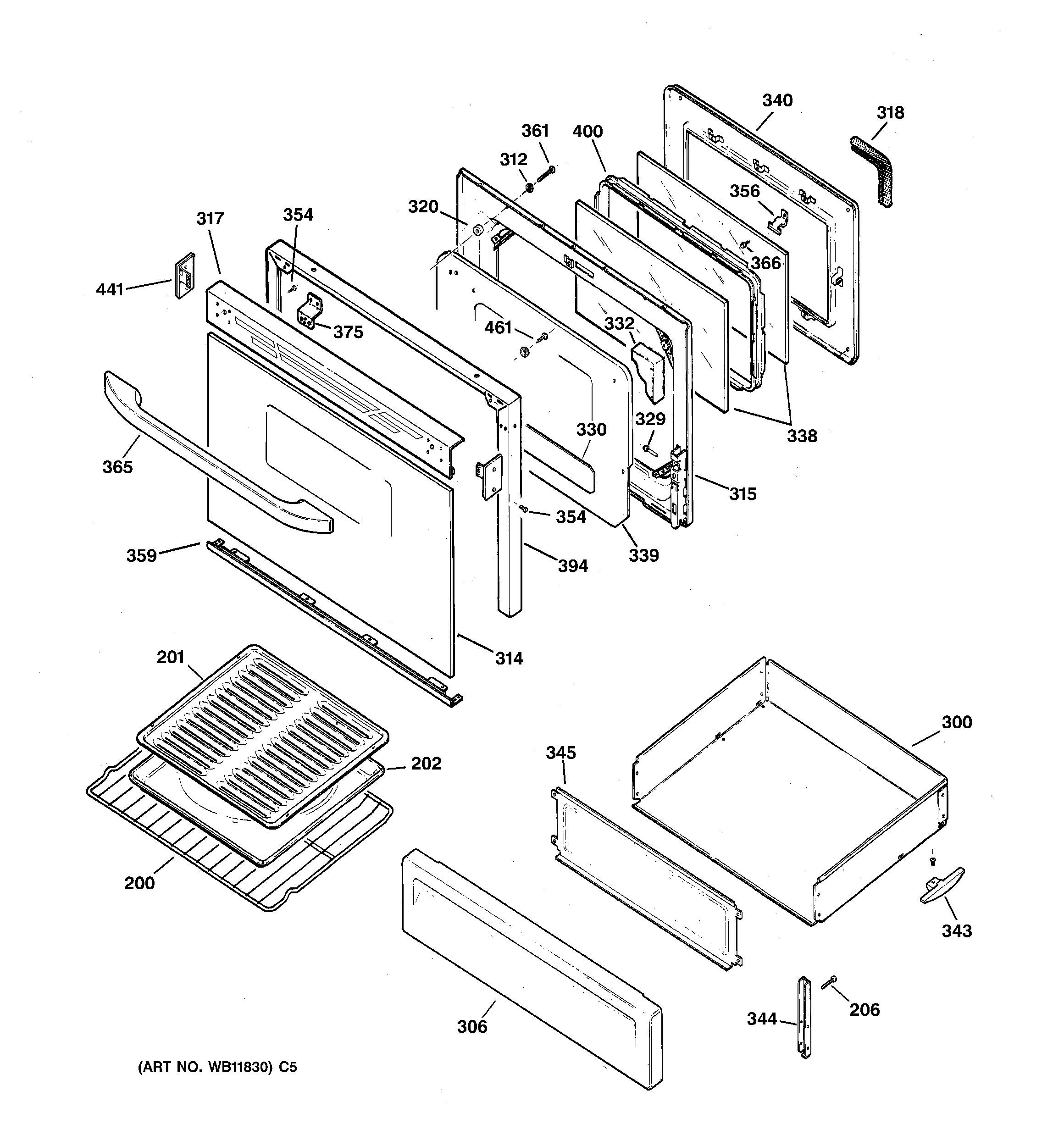

RGB845WEC1WW DOOR & DRAWER PARTS

RGB845WEC1WW DOOR & DRAWER PARTS

Written by

in

RGB845WEC1WW DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
201GEN WB48K0002
202GEN WB49K0002
206WR01X10065 GE Screw
300GEN WB58K10001
306WB36K10033 GE Oven Drawer Panel (White)
312WB1X119D GE Oven Range Washer
314WB57K5 GE Oven White Glass Door
315GEN WB55K0025
317GEN WB07K10073
318WB4K1 GE Oven Gasket Door
320WB2K14 GE Oven Spacer
329WB1X558D GE Oven Screw Package
330GEN WB35K0033
330GEN WB35K0022
332GEN WB35K0024
332GEN WB35K0025
338CRYSTAL WINDOW
339WB56K12 GE Oven Insulation Guard
340WB55K13 GE Oven Panel Weld
343WB2K68 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
345GEN WB35K10007
354WB1K67 GE Oven Screw 8-22
356GEN WB02K0056
359TRIM BOTTOM ASM
361WB1X5731D GE Oven Nut Package of 12
365WB15X10048 GE Oven Door Handle White
366WB1X536 GE Oven Screw
375CLIP WINDOW
394GEN WB07K0268
400WB34K10087 GE Oven Window Spacer Assembly
441WB7K266 GE Oven Door End Cap
