RGBS100DM1WW GAS & BURNER PARTS

RGBS100DM1WW GAS & BURNER PARTS

Written by

in

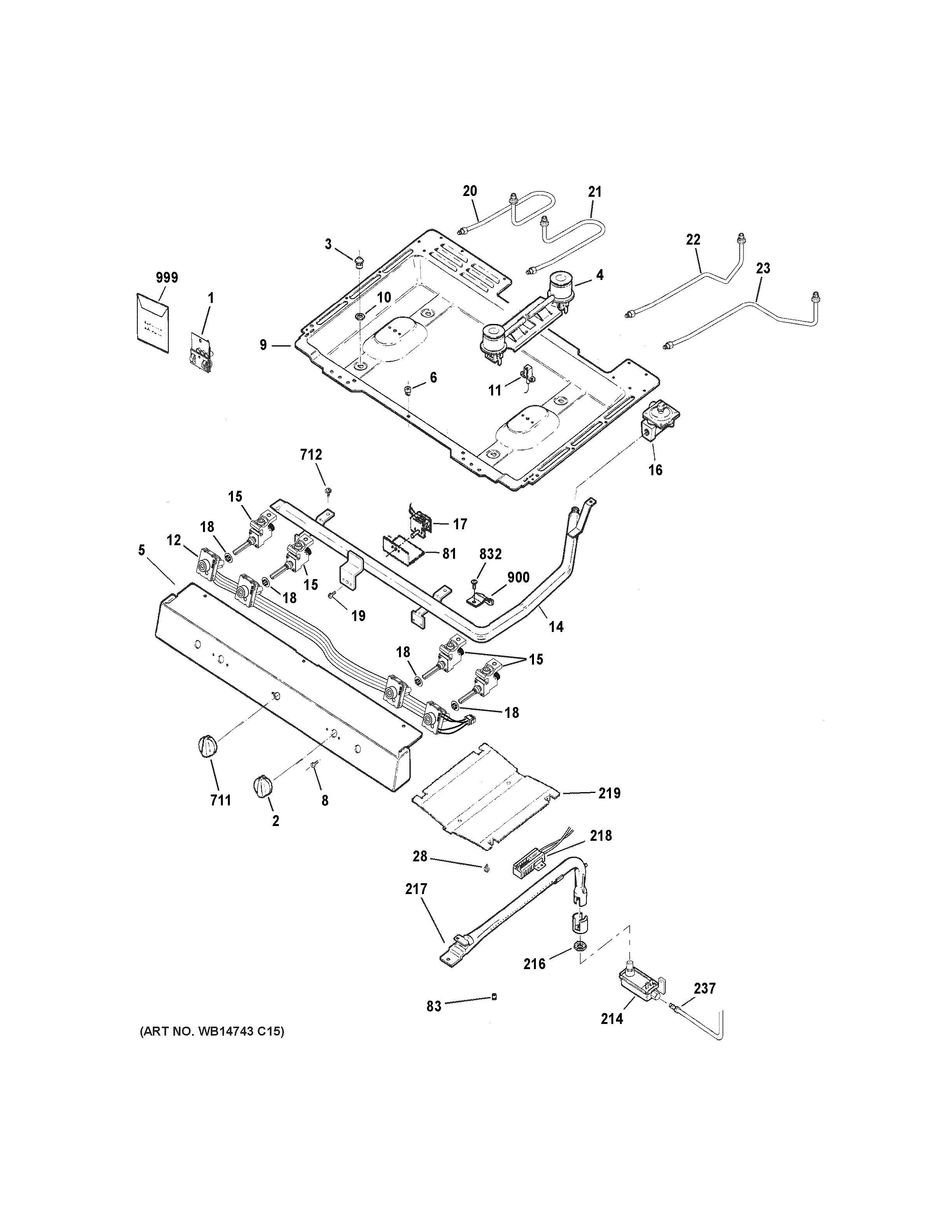

RGBS100DM1WW GAS & BURNER PARTS

Products

PositionProduct
1WB28X39131 GE LP Conversion Kit
1HA CONVERTION KIT ASM
2WB03K10218 GE Oven Control Knob
3WB28K10033 GE Oven Orifice Spud
3WB28K10376 GE Oven Orifice
4WB16K10026 GE Oven Range Cooktop Double Burner
5WHITE MANIFOLD PANEL
6GEN WB02K0009
8WB01K10002 GE Oven Screw 8-32
9WB64K10001 GE Oven Burner Box
10GEN WB01K0004
11WB18X26987 GE Oven Spark Electrode Top
11WB18X26988 GE Oven Top Spark Electrode
12WB18X31212 GE Oven Burner Box Harness
14WB28K10579 GE Oven Round Manifold Pipe
15ROUND VALVE BURNER
16PRESSURE REGULATOR
17ELECTRIC THERMOSTAT
18WB2K24 GE Oven Valve Cover
19WB1K8 GE Oven Thermostat Screw
20WB28K10009 GE Oven Burner Tube
21WB28K10010 GE Oven Front Tube Assembly
22WB28K10011 GE Oven Rear Burner Tube
23WB28K10012 GE Oven Rear Burner Tube
28WB1X1293 GE Oven Screw
81COVER THERMOSTAT
83WB28X21079 GE Oven Spud Orifice
214SAFETY VALVE SINGLE
216GEN WB01K0006
217WB16X20253 GE Oven Burner Assembly
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237WB28K147 GE Oven Tube Valve Supply
711THERMOSTAT KNOB
712WB1K37 GE Oven Screw
832WB01K10097 GE Range Thermostat Screw
900WB02K10263 GE Oven Round Valve Bracket
999PM INSTALL INSTRUCTIONS
999PM GAS QUICK GUIDE
999PM INSTALL INSTRUCTIONS
999PM INSTALL INSTRUCTIONS
999WB49X21392 GE Oven Hinge Service Kit
999PM MANUAL MINI & WD ASM
