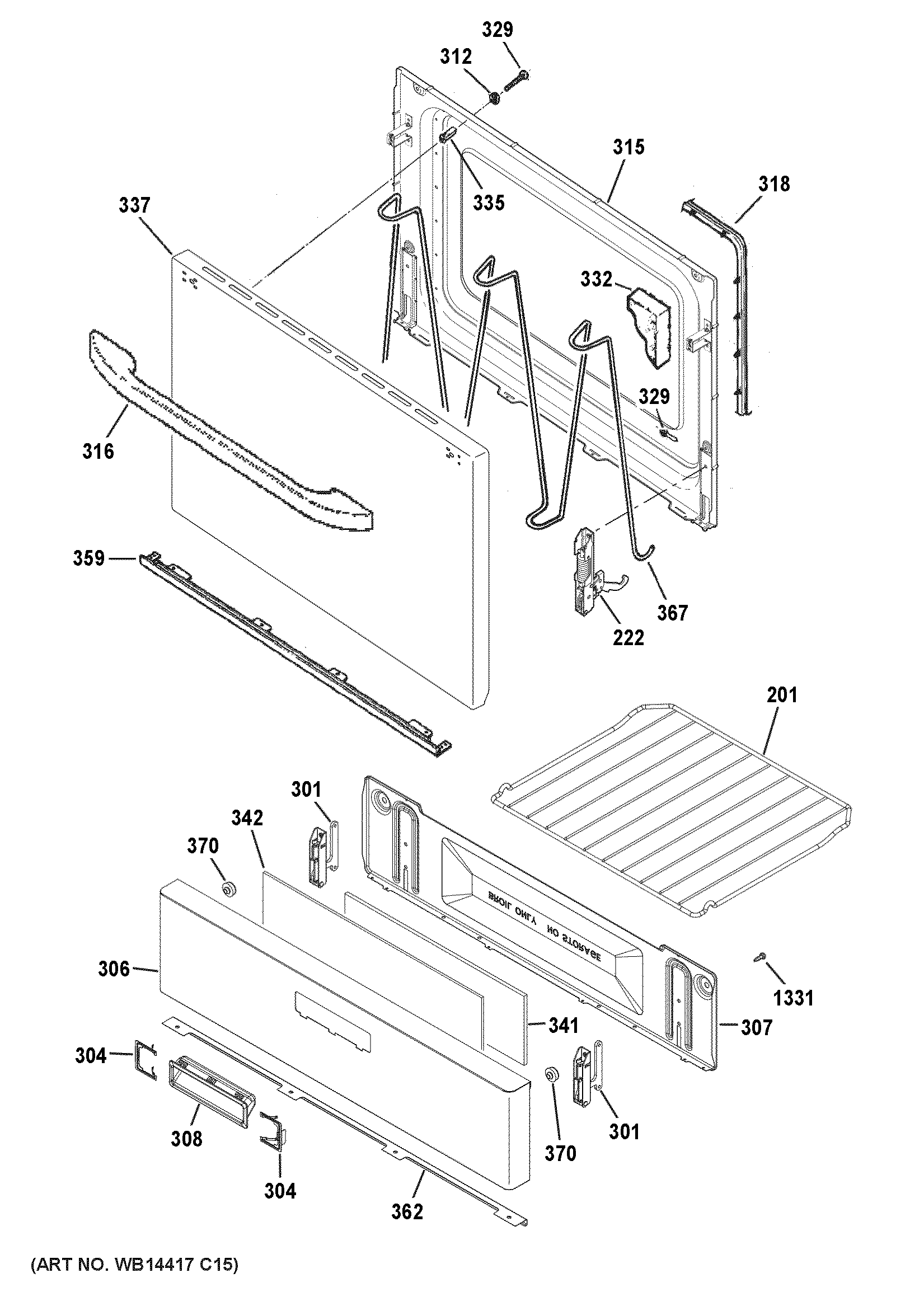

RGBS100DM2WW DOOR & DRAWER PARTS

RGBS100DM2WW DOOR & DRAWER PARTS

Written by

in

RGBS100DM2WW DOOR & DRAWER PARTS

Products

PositionProduct
201WB48X26677 GE Oven Rack
222WB10X21955 GE Oven Door Hinge
301WB10X26678 GE Oven Door Hinge
304WB01X26891 GE Range Broil Element Clip
306WB56X26688 GE Oven Drawer Panel
307WB56X26676 GE Oven Drawer Liner
308WB15X26670 GE Broil Handle
312WB1X119D GE Oven Range Washer
315WB56X21237 GE Front Frame Weld Assembly
316WB15K10100 GE Oven Handle
318WB35X29720 GE Oven Door Gasket
329WB01T10008 GE Oven Screw 10-32
332INSULATION DOOR
335WB02K10156 GE Oven Spacer
337WB56X31476 GE Outer Door Panel White
341WB35X29083 GE Insulation
342WB35X26892 GE Oven Side Panel Foil
362WB07X20288 GE Oven Barrier Door
367RETAINER WIRE INSULATION
370WB02X28737 GE Oven Front Frame Bumper
1331GEN WB01K0053
