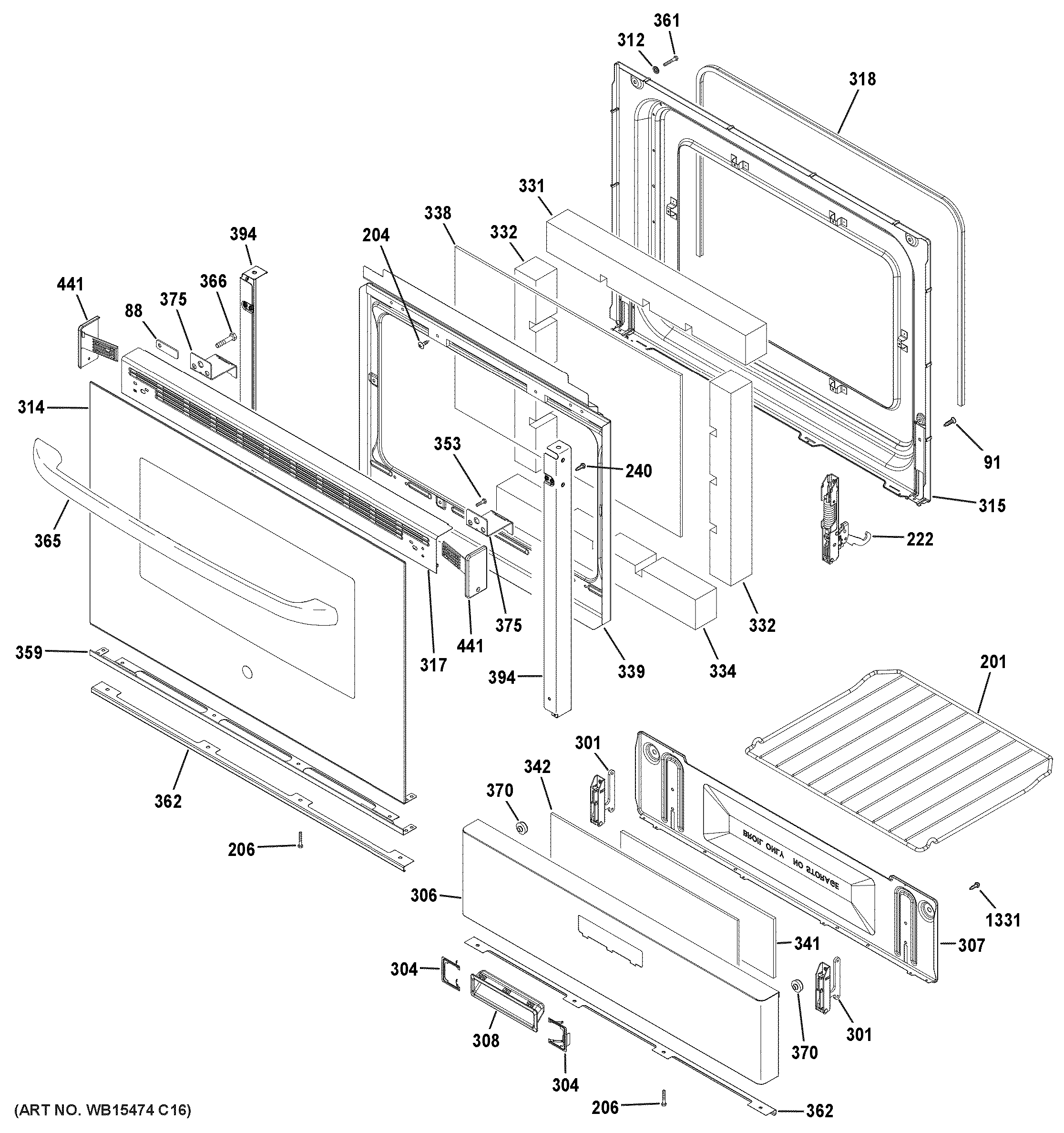

RGBS200DM1WW DOOR & DRAWER PARTS

RGBS200DM1WW DOOR & DRAWER PARTS

Written by

in

RGBS200DM1WW DOOR & DRAWER PARTS

Products

PositionProduct
88GEN WB02K0062
91WB01T10008 GE Oven Screw 10-32
201WB48X26677 GE Oven Rack
204WZ4X345D GE Screw Package 12 C92
206WB01K10091 GE Oven Screw
222WB10X21979 GE Oven Door Hinge
240WB01X31119 GE Screw 8-18
301WB10X26678 GE Oven Door Hinge
304WB01X26891 GE Range Broil Element Clip
306WB56X26688 GE Oven Drawer Panel
307WB56X26676 GE Oven Drawer Liner
308WB15X26670 GE Broil Handle
312WB01K10093 GE Oven Speednut
314WB57K5 GE Oven White Glass Door
315LINER ASM WELD DOOR
317WB07K10191 GE Oven Vent Trim Door (White)
318WB35X29720 GE Oven Door Gasket
331WB35K10148 GE Oven Door Top Insulation
332WB35K10146 GE Door Side Insulation
334WB35K10147 GE Oven Bottom Insulation Door
338WB56X23809 GE Oven Range Door Crystal Window
339WB56K10033 GE Oven Insulation Guard
341WB35X29083 GE Insulation
342WB35X26892 GE Oven Side Panel Foil
353WB01K10012 GE Oven Screw 8-22 PL 1HX
359TRIM BOTTOM ASM
361WB01K10074 GE Oven Screw 10-32 TT PNT
362WB07X20288 GE Oven Barrier Door
365WB15K10100 GE Oven Handle
366WB1K66 GE Screw
370WB02X28737 GE Oven Front Frame Bumper
375WB02K10245 GE Oven Door Bracket
394WB07X23480 GE Left Trim Post
394WB07X23481 GE Oven Right Trim Post
441WB7K266 GE Oven Door End Cap
1331GEN WB01K0053
