RGBS200DM1WW GAS & BURNER PARTS

RGBS200DM1WW GAS & BURNER PARTS

Written by

in

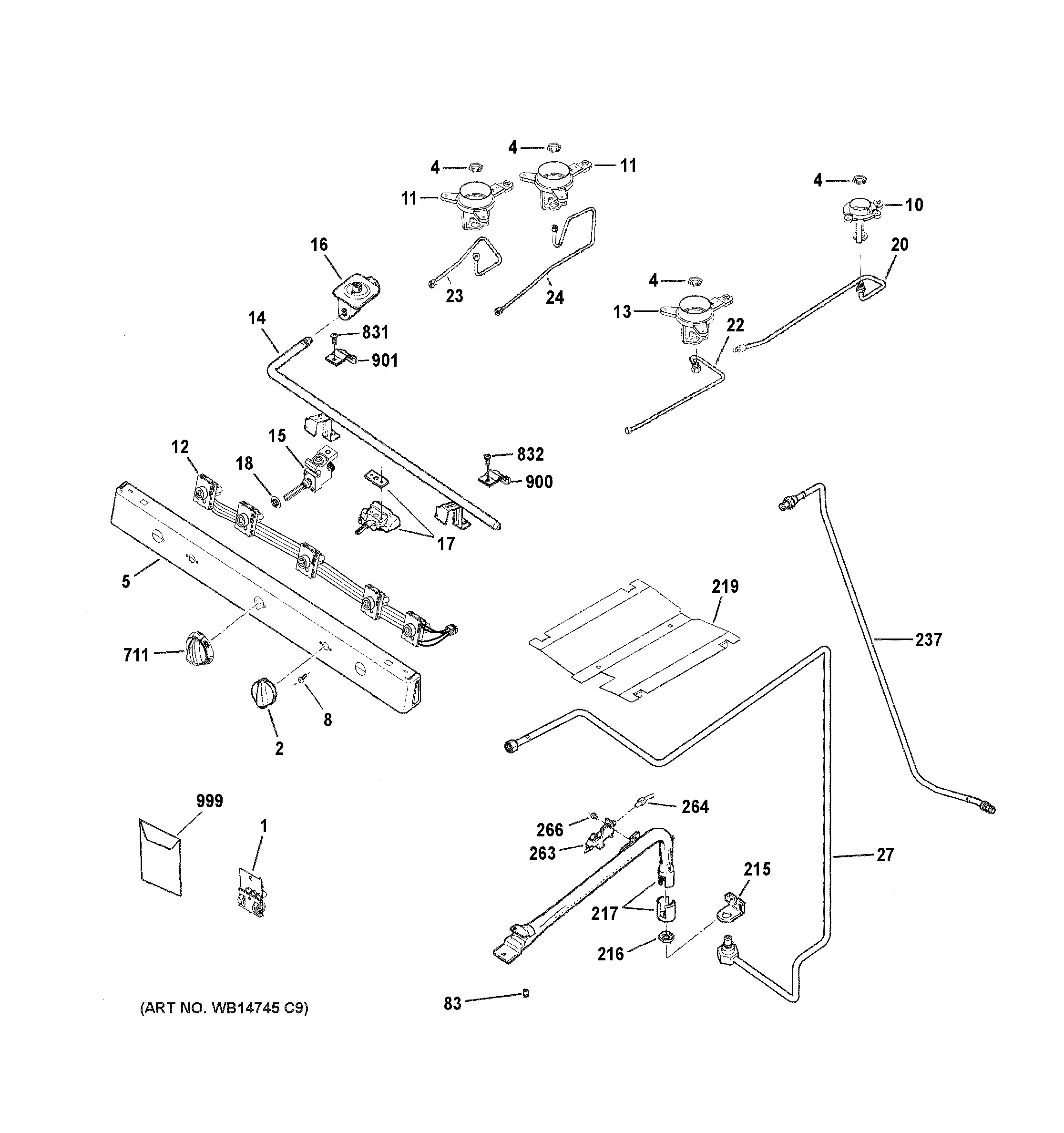

RGBS200DM1WW GAS & BURNER PARTS

Products

PositionProduct
1WB28X39134 GE Oven LP Conversion Kit
2WB03K10218 GE Oven Control Knob
4WB01K10037 GE Oven Economic Nut
5WB36X31435 GE Manifold Panel White
8WB01K10002 GE Oven Screw 8-32
10WB02X24728 GE Range Small Injector
11WB02X24727 GE Oven Right Front Burner Jet with Electrode
12WB18X31206 GE Oven Burner Box Harness
13WB02X24726 GE Range Injector Large
14WB28X31433 GE Pipe Manifold
15ROUND VALVE BURNER
16WB21X31450 GE Pressure Regulator
17WB20K10037 GE Oven Modulating Thermostat
18WB2K24 GE Oven Valve Cover
20WB28X26309 GE Oven Surface Burner Orifice Holder
22FRONT ORIFICE HOLDER
23WB28X26306 GE Oven Left Front Orifice Holder
24WB28X26308 GE Oven L Rear Orifice Holder
27WB28X31431 GE Oven Supply Tube
83WB28X21079 GE Oven Spud Orifice
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
217WB16X31449 GE Oven Burner Assembly
219WB49K10044 GE Oven Deflector
237TUBE MANIFOLD SUPPLY ASSEMBLY
263WB19K10088 GE Oven Pilot Assembly
264WB28K10843 GE Oven Pilot Supply Tube
266WB1X1293 GE Oven Screw
711WB03X31448 GE White Thermostat Knob
831WB01K10080 GE Oven Thermostat Screw
832WB01K10097 GE Range Thermostat Screw
900WB02K10264 GE Thermostat Bracket
901WB02K10263 GE Oven Round Valve Bracket
999PM INSTALL INSTRUCTIONS
999PM OWNERS MANUAL
999PM OWNERS MANUAL
999PM INSTALL INSTRUCTIONS
999WB49X21392 GE Oven Hinge Service Kit
999PM MANUAL MINI & WD ASM
