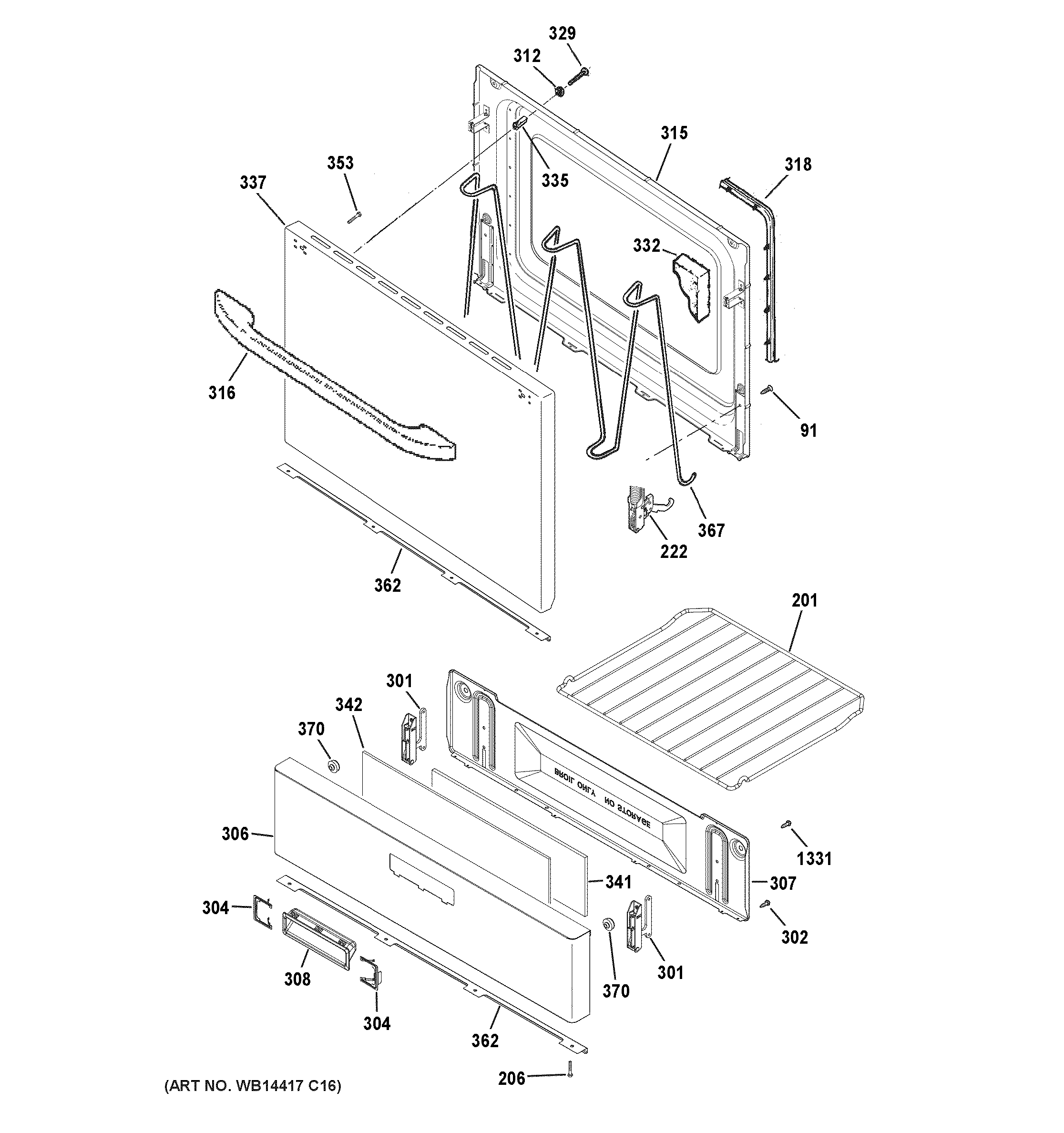

RGBS300DM2WW DOOR & DRAWER PARTS

RGBS300DM2WW DOOR & DRAWER PARTS

Written by

in

RGBS300DM2WW DOOR & DRAWER PARTS

Products

PositionProduct
91WB01T10008 GE Oven Screw 10-32
201WB48X26677 GE Oven Rack
206WB01K10091 GE Oven Screw
222WB10X21955 GE Oven Door Hinge
301WB10X26678 GE Oven Door Hinge
302WB01K10097 GE Range Thermostat Screw
304WB01X26891 GE Range Broil Element Clip
306WB56X26688 GE Oven Drawer Panel
307WB56X26676 GE Oven Drawer Liner
308WB15X26670 GE Broil Handle
312WB02X32440 GE Washer Contoured
315WB56X21237 GE Front Frame Weld Assembly
316WB15K10100 GE Oven Handle
318WB35X29720 GE Oven Door Gasket
329WB01K10073 GE Oven Screw 10-16 PL PNT 2.22S
332INSULATION DOOR
335WB02K10156 GE Oven Spacer
337WB56X31476 GE Outer Door Panel White
341WB35X29083 GE Insulation
342WB35X26892 GE Oven Side Panel Foil
353WB01K10012 GE Oven Screw 8-22 PL 1HX
362WB07X20288 GE Oven Barrier Door
367RETAINER WIRE INSULATION
370WB02X28737 GE Oven Front Frame Bumper
1331GEN WB01K0053
