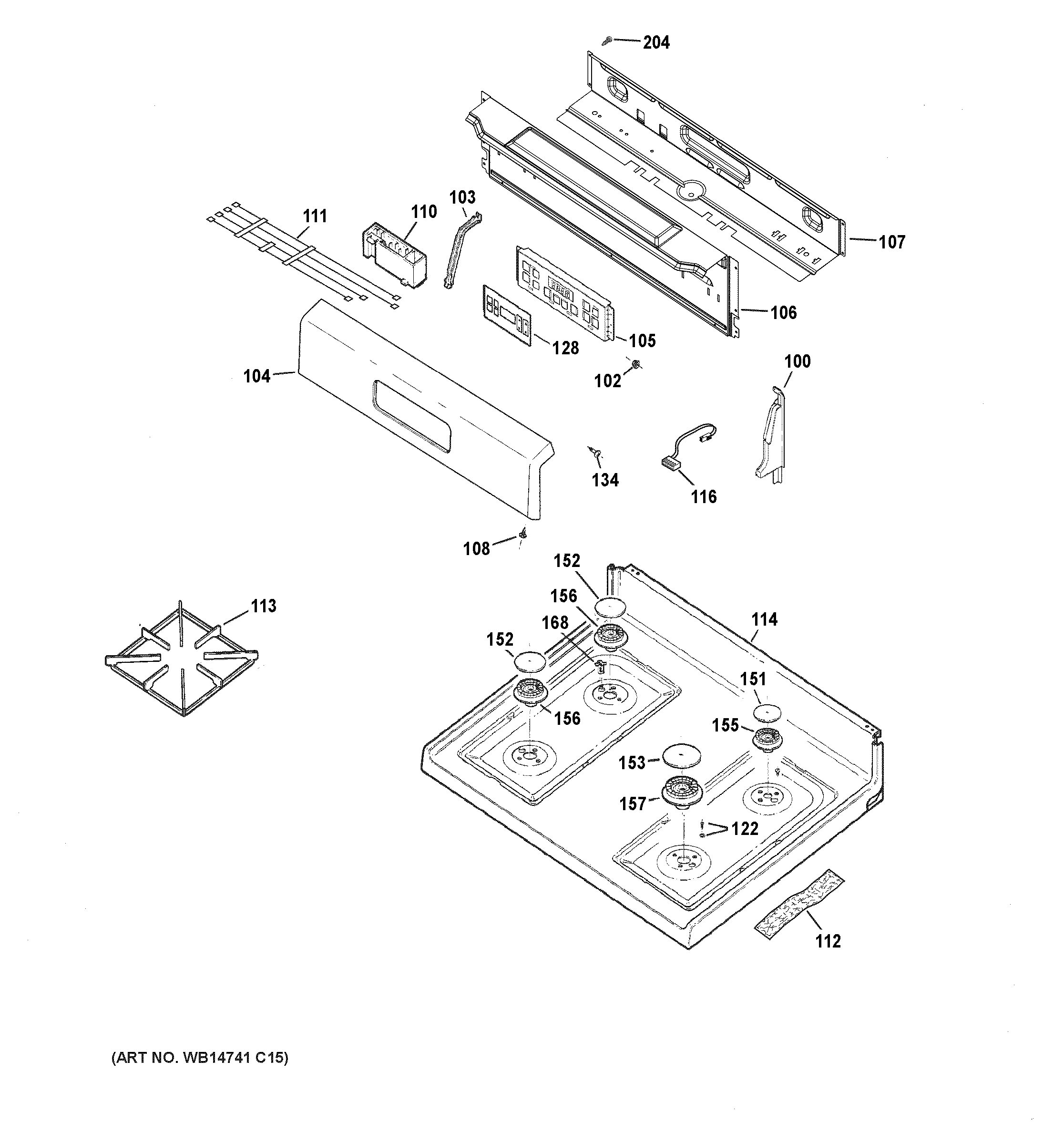

RGBS400DM4BB CONTROL PANEL & COOKTOP

Products

Position	Product
100	WB07K10194 GE Oven End Support Gloss Black
100	WB07K10193 GE Oven End Support Gloss Black
102	WR01X10065 GE Screw
103	WB02K10074 GE Oven Control Bracket
104	WB36X22891 GE Control Trim
105	CONTROL OVEN TO9 (GAS)
106	WB34K10129 GE Lower Back Cover
107	WB34K10003 GE Upper Back Oven Cover
108	GEN WB01X5716
110	WB13X24323 GE Oven Ignition Module
111	WB18X26607 GE Oven Spark Electrode
112	FOIL COOKTOP
113	WB31K10033 GE Oven Burner Grate
114	WB62X31581 GE Range Top Black
116	WB18X32406 GE Control Harness
122	WB01X24735 GE Oven CKT Screw
128	WB07X22681 GE Range Black Control Panel
134	WB01T10016 GE Oven Screw 8-18 AB Hex
151	WB16X29450 GE Range Small Burner Cap V2
152	WB29K10001 GE Oven Burner Cap
153	WB29K10006 GE Oven Burner Cap
155	WB16X24721 GE Oven Range Small Cooktop Burner V2
156	WB16X24724 GE Oven Medium Burner
157	BURNER LARGE V2
168	WB02X24976 GE Oven Igniter Clip V2
204	WZ4X345D GE Screw Package 12 C92
