RGBS400DM4BB DOOR & DRAWER PARTS

RGBS400DM4BB DOOR & DRAWER PARTS

Written by

in

RGBS400DM4BB DOOR & DRAWER PARTS

Products

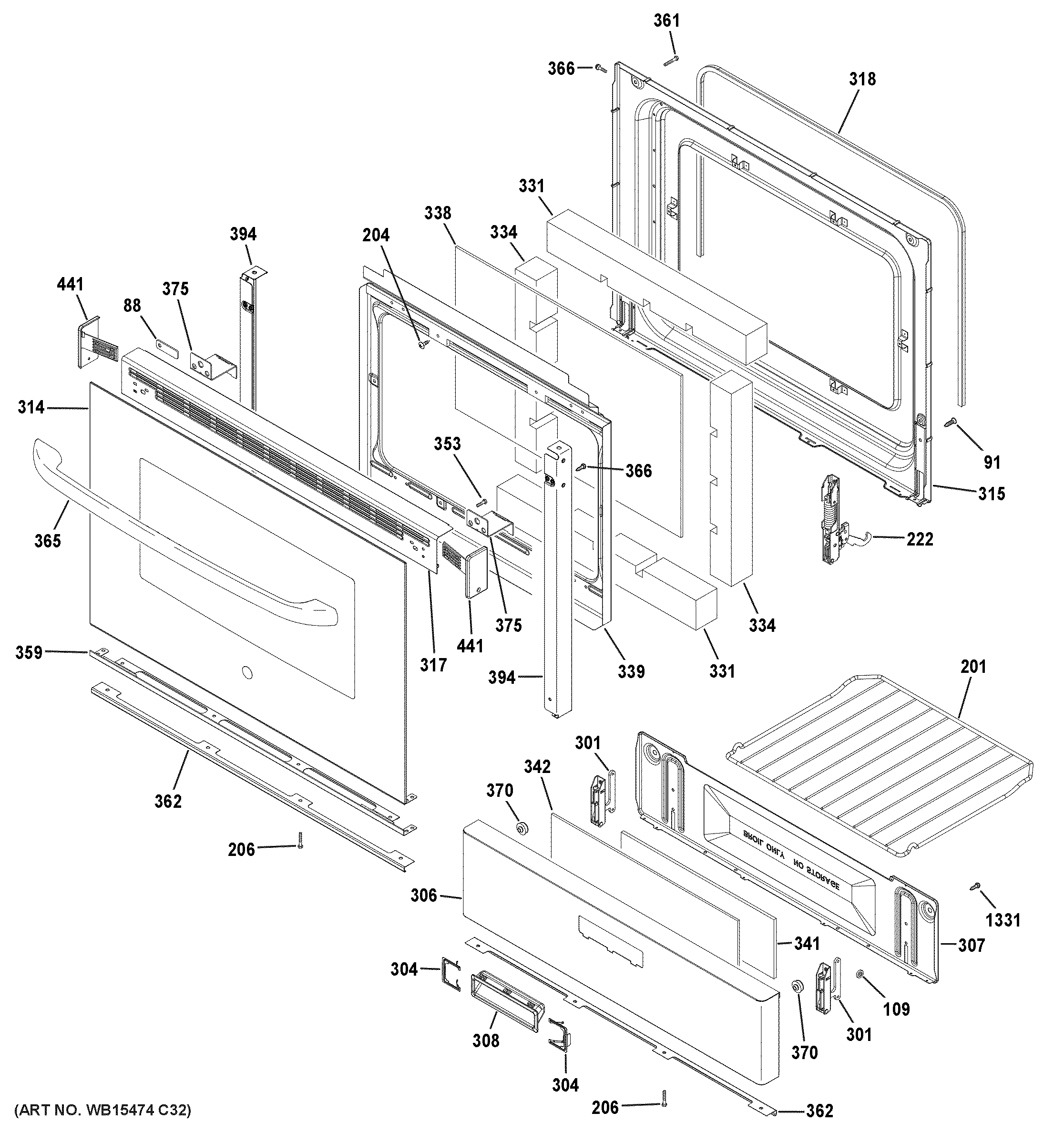

PositionProduct
88GEN WB02K0062
91WB01T10008 GE Oven Screw 10-32
109WB01X31119 GE Screw 8-18
201WB48X26677 GE Oven Rack
204WZ4X345D GE Screw Package 12 C92
206WB01K10091 GE Oven Screw
222WB10X21979 GE Oven Door Hinge
301WB10X26678 GE Oven Door Hinge
304WB01X26891 GE Range Broil Element Clip
306WB56X26689 GE Oven Drawer Panel
307WB56X26676 GE Oven Drawer Liner
308WB15X26671 GE Broil Oven Handle
314WB57K4 GE Oven Black Glass Door
315WB56X20206 GE Range Door Panel
317WB07K10200 GE Oven Vent Trim Assembly
318WB35X29720 GE Oven Door Gasket
331WB35K10147 GE Oven Bottom Insulation Door
334WB35K10146 GE Door Side Insulation
338WB56X23809 GE Oven Range Door Crystal Window
339WB56K10033 GE Oven Insulation Guard
341WB35X29083 GE Insulation
342WB35X26892 GE Oven Side Panel Foil
353WB01K10012 GE Oven Screw 8-22 PL 1HX
359WB07K10232 GE Oven Bottom Trim Assembly
361GEN WB01K0078
362WB07X20288 GE Oven Barrier Door
365WB15K10099 GE Oven Handle
366WB1K62 GE Oven Door Assembly
370WB02X28737 GE Oven Front Frame Bumper
375WB02K10245 GE Oven Door Bracket
394WB07X23479 GE Right Trim Post
394WB07X23478 GE Trim Post Left
441WB7K263 GE Oven Door Endcap
441WB7K264 GE Oven Door Endcap
1331GEN WB01K0053
