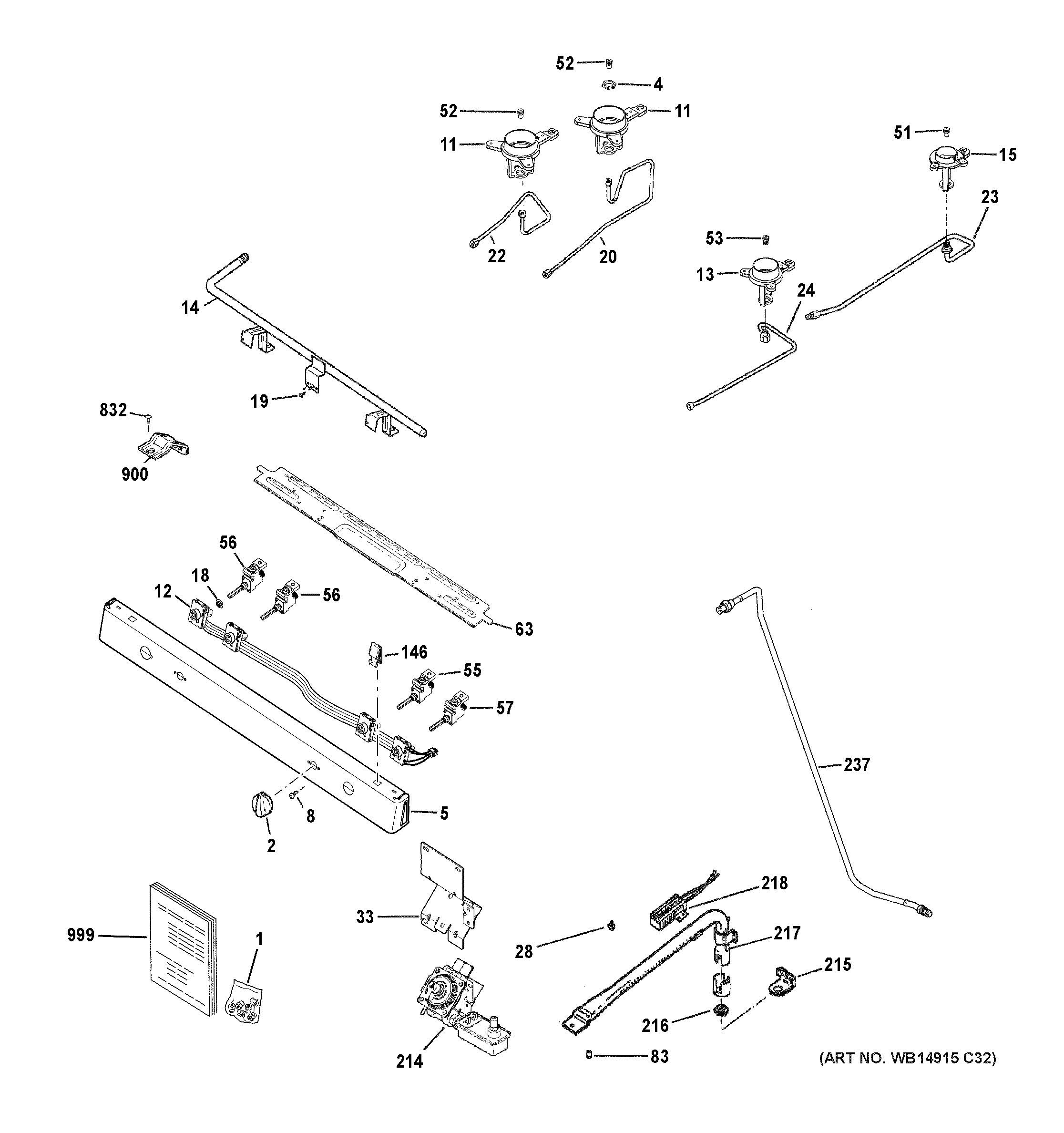

RGBS400GM1SH GAS & BURNER PARTS

Products

Position	Product
1	WB28X29254 GE Range Natural Gas High Altitude Kit
1	WB28X29255 GE Range LP High Altitude Kit
1	LP CONVERSION KIT
2	WB03K10216 GE Oven Manifold Knob
4	WB01K10037 GE Oven Economic Nut
5	PANEL AND COVER ASM
8	WB01K10002 GE Oven Screw 8-32
11	WB02X24727 GE Oven Right Front Burner Jet with Electrode
12	WB18X31208 GE Oven Burner Box Harness
13	WB02X24726 GE Range Injector Large
14	WB28K10457 GE Oven Manifold Pipe
15	WB02X24728 GE Range Small Injector
18	WB2K24 GE Oven Valve Cover
19	WB1K8 GE Oven Thermostat Screw
20	WB28X26308 GE Oven L Rear Orifice Holder
22	WB28X26306 GE Oven Left Front Orifice Holder
23	WB28X26309 GE Oven Surface Burner Orifice Holder
24	FRONT ORIFICE HOLDER
28	WB1X1293 GE Oven Screw
33	WB02X22890 GE Oven Regulator Bracket
51	WB28K10834 GE Oven Orifice Assembly
52	WB28K10023 GE Oven Orifice
53	WB28K10032 GE Oven LP Orifice
55	WB21K10169 GE Oven Burner Valve Round 140
56	ROUND VALVE BURNER
57	WB21K10170 GE Oven Round Burner Valve 140
63	WB34X20680 GE Support Manifold
83	WB28X21079 GE Oven Spud Orifice
146	GEN WB02K0052
214	WB21X38548 VALVE CONTROL ASM
215	WB2K65 GE Oven SAF Valve Bracket
216	GEN WB01K0006
217	WB16X20253 GE Oven Burner Assembly
218	WB13K21 GE Oven Igniter with 7 Leads
237	TUBE MANIFOLD SUPPLY ASSEMBLY
832	WB01K10080 GE Oven Thermostat Screw
900	WB02K10263 GE Oven Round Valve Bracket
999	PM MINI MANUAL AND WIRING
999	PM INSTALL INSTRUCTIONS
999	PM INSTALL INSTRUCTIONS
999	PM OWNERS MANUAL
