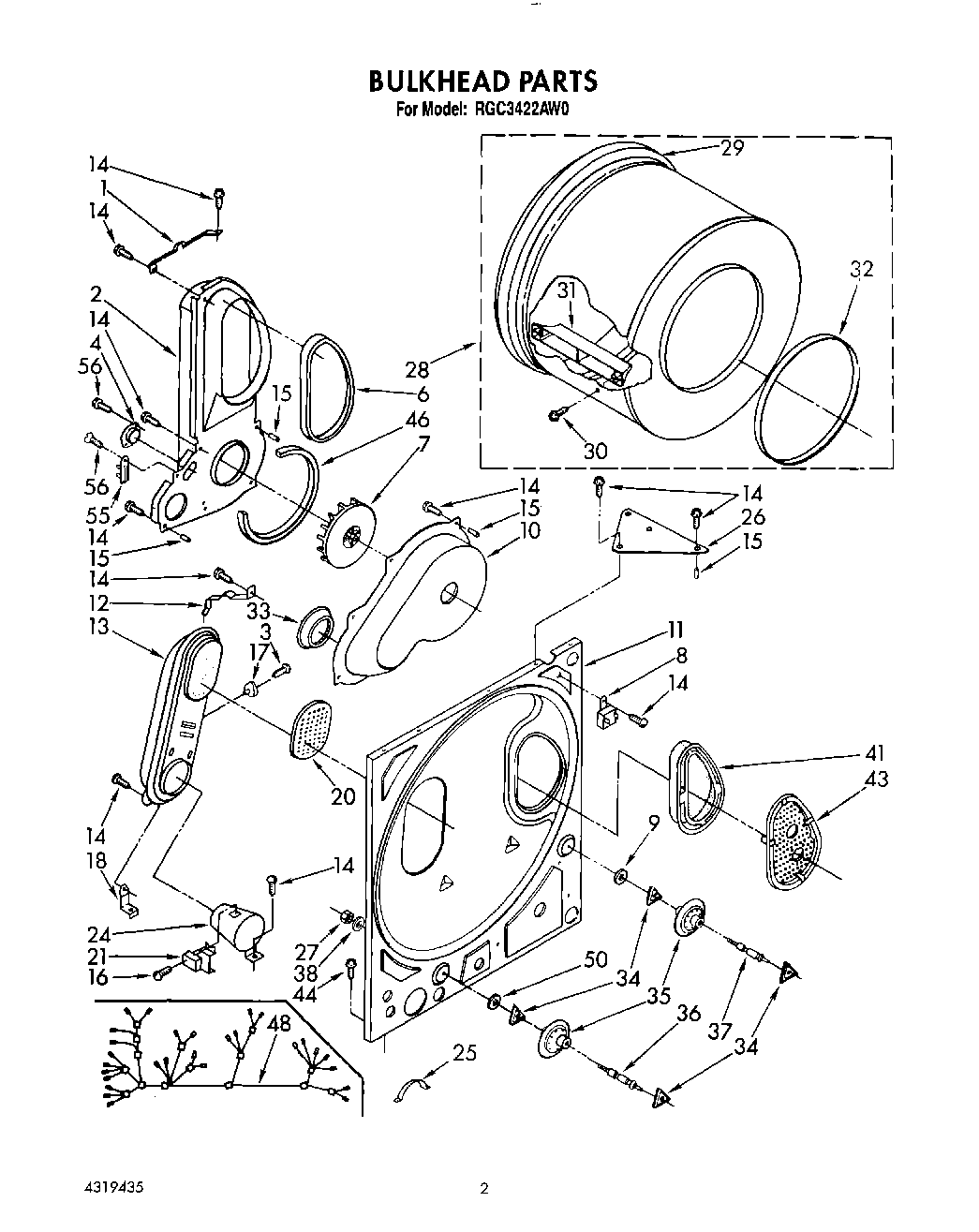

RGC3422AL0 02 – BULKHEAD, LIT/OPTIONAL

Products

Position	Product
	Guide, Use & Care
	List, Service Parts
	Literature Parts (Instructions, Installation)
	Almond (Uncut)
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	350938 Whirlpool Spray Gun
	350930 Whirlpool White Spray Paint
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
1	345396 Whirlpool Clip
2	Air Duct Assembly
4	WP694674 Whirlpool Cycling Thermostat
6	SEAL
7	WP696426 Whirlpool Wheel
8	WP694419 Whirlpool Buzzer Adjuster
9	Washer, Support
10	696419 Whirlpool Housing
11	Bulkhead
12	279771 Whirlpool Clip
13	Box, Heater
14	SCREW
15	W10491983 Whirlpool Tine Tip
16	WP90767 Whirlpool Screw
17	Thermostat, 205 F (96 C)
18	347455 Whirlpool Support Assembly
20	345335 Whirlpool Cover
21	WP338906 Whirlpool Dryer Gas Sensor
24	279900 Whirlpool Box O/S1
25	8528351 Whirlpool Clip
26	Gusset (2)
27	WP358160 Whirlpool Nut
28	3391834 Whirlpool Drum
29	SEAL
30	Screw, 11-16 x 7/8
31	685207 Whirlpool Dryer Baffle
32	WP3394508 Whirlpool Bearing Ring
33	W11233063 Whirlpool Shield Assembly
34	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
35	349241T Whirlpool Dryer Drum Support Roller Kit
36	SHAFT SUPPORT ROLLER DRYER
37	SHAFT SUPPORT ROLLER DRYER
38	Washer, Support
41	W10828351 Whirlpool Dryer Filter Lint Screen with Cover
44	WP3390631 Whirlpool Screw
46	Seal, Air Duct
48	Harness, Wiring
50	WP3388703 Whirlpool Washer
55	WP3392519 Whirlpool Dryer Thermal Fuse
56	WP965173 Whirlpool Dishwasher Screw
