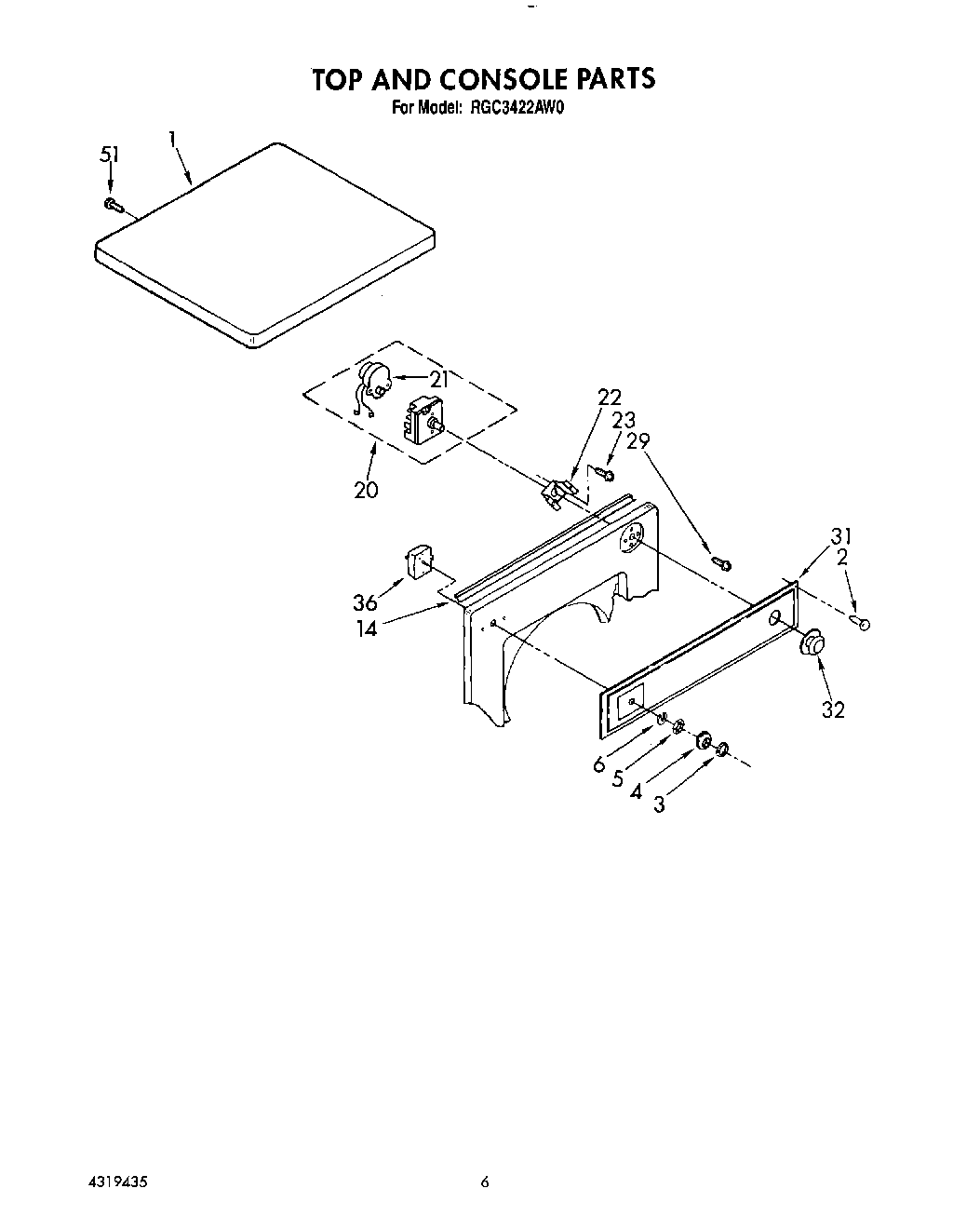

RGC3422AW0 04 – TOP AND CONSOLE

Products

PositionProduct
1Top (Almond)
1345703 Whirlpool White Maintop
2Rivet, Plastic (4)
3Nut, Knurled
4Ring, Trim
5Nut, Hex
6Lockwasher
14Protector Support
20Timer, 60 Hz.
21(Timer Motor Not Serviceable)
22348171 Whirlpool Bracket
23303776 Whirlpool Dishwasher Screw
31Panel, Control
32Timer Knob & Skirt Assembly
36Switch, Push-To-Start
51SCREW
