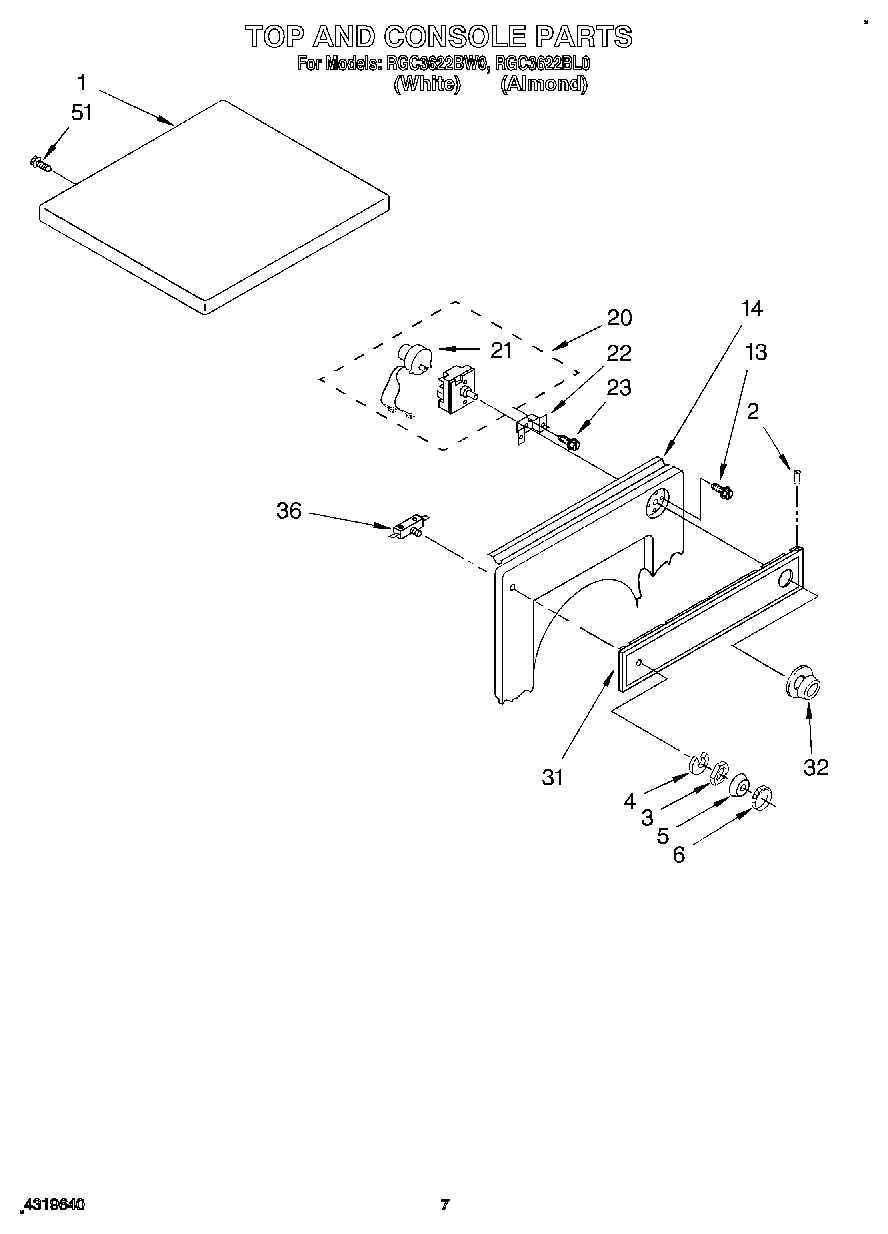

RGC3622BW0 04 – TOP AND CONSOLE

RGC3622BW0 04 – TOP AND CONSOLE

Written by

in

RGC3622BW0 04 – TOP AND CONSOLE

Products

PositionProduct
1345703 Whirlpool White Maintop
1Top (Almond)
2Rivet, Plastic (4)
3Nut, Hex
4Lockwasher
5Ring, Trim
6Nut, Knurled
13WPW10139210 Whirlpool Screw
14686770 Whirlpool Support Bracket
20WP8563882 Whirlpool Timer Assembly
21(Timer Motor Not Serviceable)
22348171 Whirlpool Bracket
23303776 Whirlpool Dishwasher Screw
31Panel, Control
32Timer Knob & Dial
36Switch, Push-To-Start
51SCREW
