RGC657EH1

RGC657EH1

Written by

in

RGC657EH1

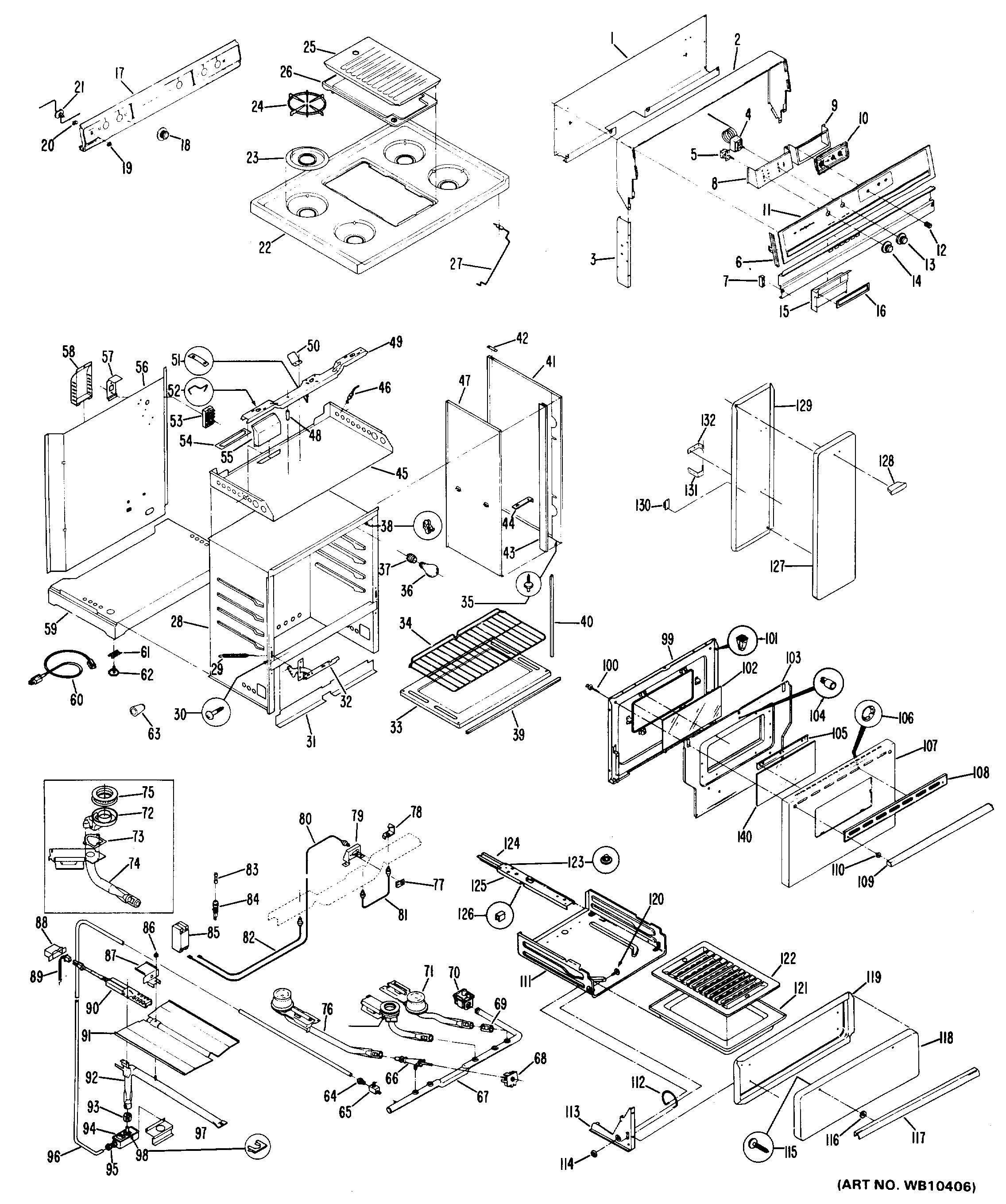

Products

Position	Product
1	GEN WB56X1702
2	GEN WB07X1378
3	BRACKET-BACKSPLASH MOUNT
4	GEN WB21X0394
5	SWITCH-THERMAL-DOOR LOCK
6	GEN WB02X4278
7	END CAP
8	GEN WB02X4534
9	GEN WB02X4276
10	CLOCK-RADIAL-3 STEM
11	GEN WB36X0706
12	UNKNOWN
13	GEN WB03X0661
14	GEN WB03X0662
15	GEN WB49X0533
16	GEN WB02X4334
17	GEN WB07X1430
18	GEN WB03X0658
19	BEZEL LIGHT SWITCH
20	GEN WB01X0808
21	GEN WB24X0330
22	GEN WB62X1611
22	GEN WB62X1610
23	GEN WB32X0084
24	GEN WB32X0083
25	GEN WB56X1698
25	GEN WB56X1699
26	GEN WB49X0535
27	GEN WB02X4280
29	SPRING OVEN DOOR
30	GEN WB04X0230
31	GEN WB49X0521
32	HINGE OVEN DOOR LH
32	HINGE OVEN DOOR RH
33	GEN WB55X0513
34	GEN WB48X0180
35	PIN BODY PANEL GUIDE
36	RANGE ONLY 40W 120V APPL BULB
37	GEN WB08X0241
38	CLIP-THERMOSTAT BULB
39	SEAL DOOR BOTTOM/TOP
40	SEAL DOOR SIDE
41	PANEL-SIDE-ALMOND-RH
41	PANEL SIDE R/H ALMOND
41	PANEL SIDE R/H WHITE
41	PANEL-SIDE-WHITE-RH
42	GLIDE MAIN TOP
43	CHANNEL-STIFFENER-BASE
44	BRACKET-STIFFENER-BOTTOM
45	BURNER BOX
46	GEN WB14X0047
47	BODY-SIDE-INNER
48	SPACER-BURNER SUPPORT
50	REFECTOR-GRIDDLE BURNER
51	GEN WB01X0729
52	GEN WB02X4270
53	TERMINAL BLOCK
54	GEN WB55X0514
55	FLUE BOX-LOWER
56	GEN WB49X0538
57	GEN WB02X4348
58	COVER IGNITOR
59	GEN WB49X0555
60	GEN WB18X0214
61	FASTENER LEG LEVELER
62	LEVELING LEG
63	GEN WB01X0702
65	VALVE MANUAL CUT-OFF
66	GEN WB21X0397
67	MANIFOLD PIPE
68	SWITCH IGNITER
69	MIXER AIR TOP BURNERS
70	GEN WB21X0395
71	GEN WB28X0061
72	BURNER-TOP-GRIDDLE-BUNR
73	GASKET-GRIDDLE-BURNER
74	TUBE-VENTURI-GRIDDLE BNR
75	GEN WB28X0050
76	GEN WB28X0062
77	RETAINER-IGNITER
78	RETAINER IGN. HARNESS
79	BRACKET-IGNITER
80	GEN WB02X4340
81	BASE-IGNITER-GRIDDLE
82	GEN WB02X4342
83	GEN WB27X0277
84	GEN WB02X4213
85	GEN WB21X0389
86	NUT
87	SHIELD-OVEN BOTTOM
89	GEN WB18X0218
90	12400035 Whirlpool Oven Flat Style Igniter Kit
91	GEN WB49X0511
92	GEN WB28X0045
93	GEN WB02X4195
94	VALVE-OVEN SAFETY
95	GEN WB01X0713
96	TUBE OVEN GAS SUPPLY 7/16"X55"
97	GEN WB02X4220
98	FASTENER VALVE MTG
99	GEN WB55
