RGC657EH5

Products

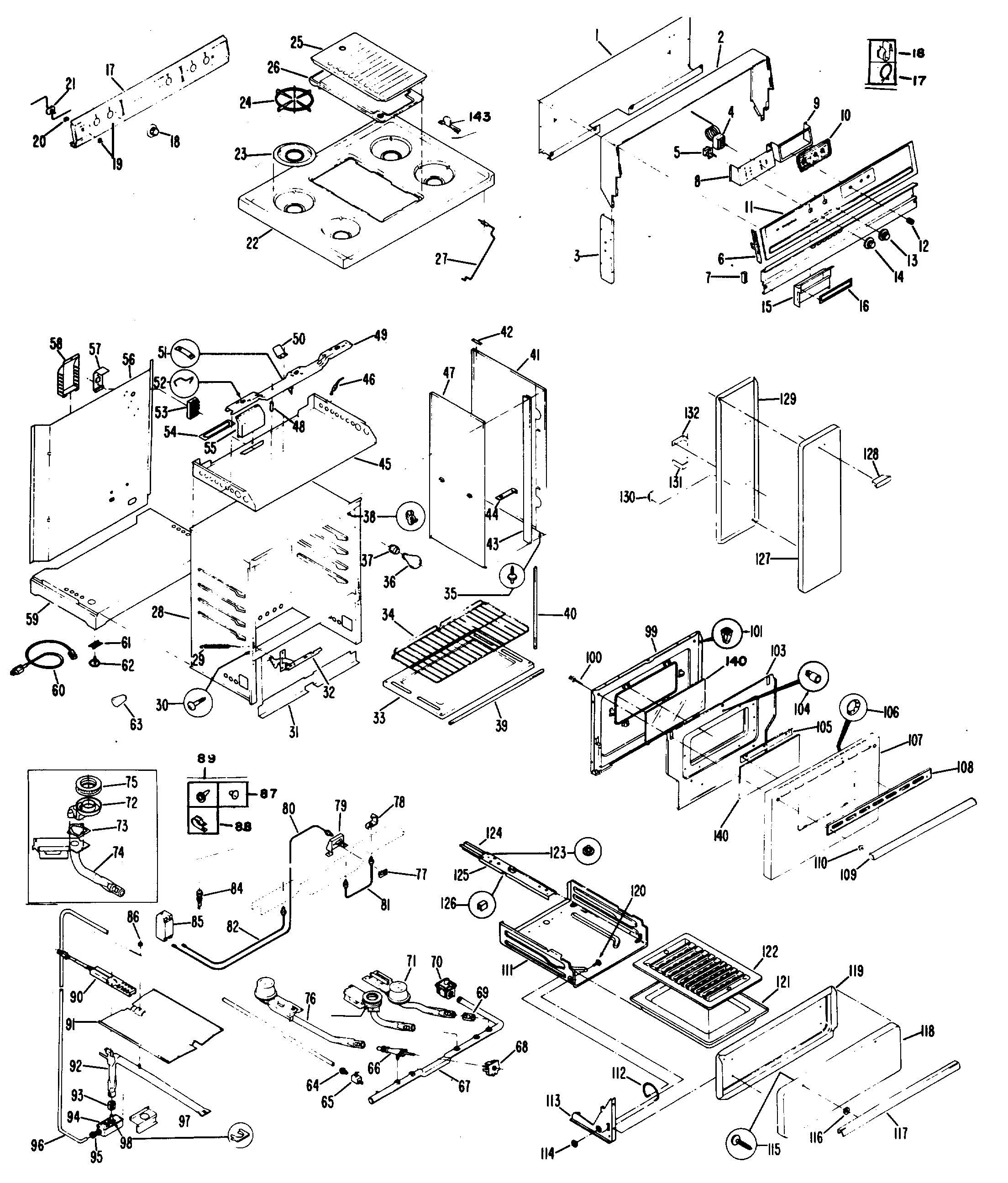

Position	Product
1	GEN WB61X0333
2	GEN WB07X1378
3	BRACKET-BACKSPLASH MOUNT
4	GEN WB21X5282
5	GEN WB24X0339
6	GEN WB02X4278
7	END CAP
8	GEN WB02X8022
9	GEN WB02X4276
10	CLOCK-RADIAL-3 STEM
11	BUSHING-CONTROL PANEL
11	GEN WB36X0706
12	UNKNOWN
13	GEN WB03X0661
14	GEN WB03X0662
15	GEN WB49X0533
16	GEN WB02X4277
17	GEN WB07X1430
17	GEN WB2X10054
18	GEN WB03X0658
18	GEN WB02X7973
19	BACKSPLASH PANEL
19	GEN WB01X0726
20	GEN WB01X0725
21	GEN WB24X5265
22	GEN WB62X1611
22	GEN WB62X1610
23	GEN WB32X0086
24	GEN WB32X0083
25	GEN WB56X1699
25	GEN WB56X1698
26	GEN WB49X0535
27	GEN WB02X4280
28	OVEN ASSEMBLY
29	SPRING OVEN DOOR
30	SCREW-PANEL MTG
31	GEN WB49X0521
32	HINGE OVEN DOOR LH
32	HINGE OVEN DOOR RH
33	GEN WB49X0570
34	GEN WB48X0166
35	PIN BODY PANEL GUIDE
36	GEN BULB 40W
37	SOCKET-OVEN LIGHT
38	CLIP-THERMOSTAT BULB
39	SEAL DOOR BOTTOM/TOP
40	SEAL DOOR SIDE
41	PANEL-SIDE-ALMOND-RH
41	PANEL-SIDE-WHITE-RH
41	PANEL SIDE R/H WHITE
41	PANEL SIDE R/H ALMOND
43	CHANNEL-STIFFENER-BASE
44	BRACKET-STIFFENER-BOTTOM
45	BURNER BOX
47	BODY-SIDE-INNER
48	SPACER-BURNER SUPPORT
49	HINGE CKTP RIGHT
49	HINGE CKTP LEFT
49	BURNER SUPPORT CHANNEL
50	REFECTOR-GRIDDLE BURNER
51	GEN WB01X0729
52	GEN WB02X4270
53	TERMINAL BLOCK
54	GEN WB2X10048
55	FLUE BOX-LOWER
56	GEN WB63X0296
57	GEN WB02X4211
59	GEN WB49X0555
60	GEN WB18X0269
61	FASTENER LEG LEVELER
62	SCREW-LEVELING
64	GEN WB01X0713
65	VALVE MANUAL CUT-OFF
66	GEN WB21X0397
67	MANIFOLD PIPE
68	GEN WB24X0379
69	MIXER AIR TOP BURNERS
70	GEN WB21X0395
71	GEN WB28X5034
72	BURNER-TOP-GRIDDLE-BUNR
73	GASKET-GRIDDLE-BURNER
74	TUBE-VENTURI-GRIDDLE BNR
75	GEN WB28X5033
76	GEN WB28X5035
77	RETAINER-IGNITER
78	*RETAINER-IGNITER
79	BRACKET-IGNITER
81	BASE-IGNITER-GRIDDLE
82	BASE IGNITOR LH
85	GEN WB21X5265
86	NUT
87	PLUG BUTTON-FRONT FRAME
88	FASTENER-CLAMP-CORD
89	GEN WB2X10052
90	TERMINAL BLOCK-IGNITOR
90	GEN WB2X10065
90	COVER-SAFETY VALVE
91	GEN WB49X0511
92	BURNER OVEN
93	GEN WB02X4195
94	GEN WB21X5266
95	GEN WB01X
