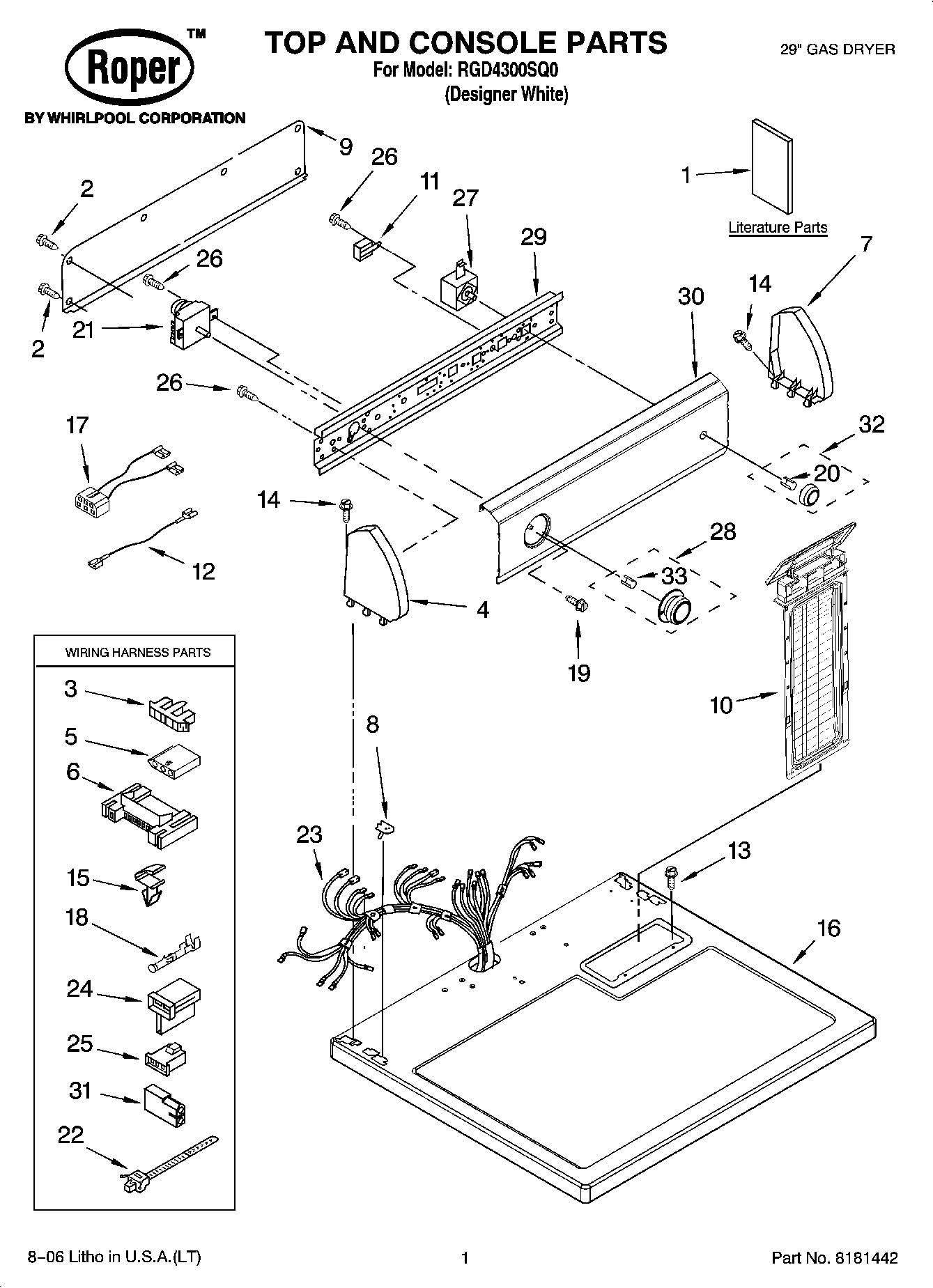

RGD4300SQ0 01 – TOP AND CONSOLE PARTS

RGD4300SQ0 01 – TOP AND CONSOLE PARTS

Written by

in

RGD4300SQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Installation Instructions
1Sheet, Cycle Feature
1Guide, Use & Care
1Wiring Diagram
1WPL 677818
2WP693995 Whirlpool Screw
3Connector, Timer
53936144 Whirlpool Connector
63395683 Whirlpool Connector
7279960 Whirlpool Endcap Assembly
8WP357213 Whirlpool Hinge Stopper
9W10103406 Whirlpool Rear Panel
10W10874409 Whirlpool Lint Screen Filter
11WP694419 Whirlpool Buzzer Adjuster
12Wire, Jumper (Black)
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15WP3394427 Whirlpool Clip
16Top
17Wire, Jumper (Blue)
18WP94614 Whirlpool Terminal
193400859 Whirlpool Screw
20WP8536939 Whirlpool Spring Clip
21WP8299764 Whirlpool Timer
22Tie, Cable
23Harness, Wiring
24WP3403499 Whirlpool Connector
25WP3403498 Whirlpool Connector
26WP90767 Whirlpool Screw
27WP3977456 Whirlpool Start Switch
28WP8557455 Whirlpool Knob Timer
29Bracket, Control
30Panel, Control
31Receptacle, Latching (2-Way) (Uses Terminal 94614)
32Knob, Push-To-Start
33WP688805 Whirlpool Spring Clip
