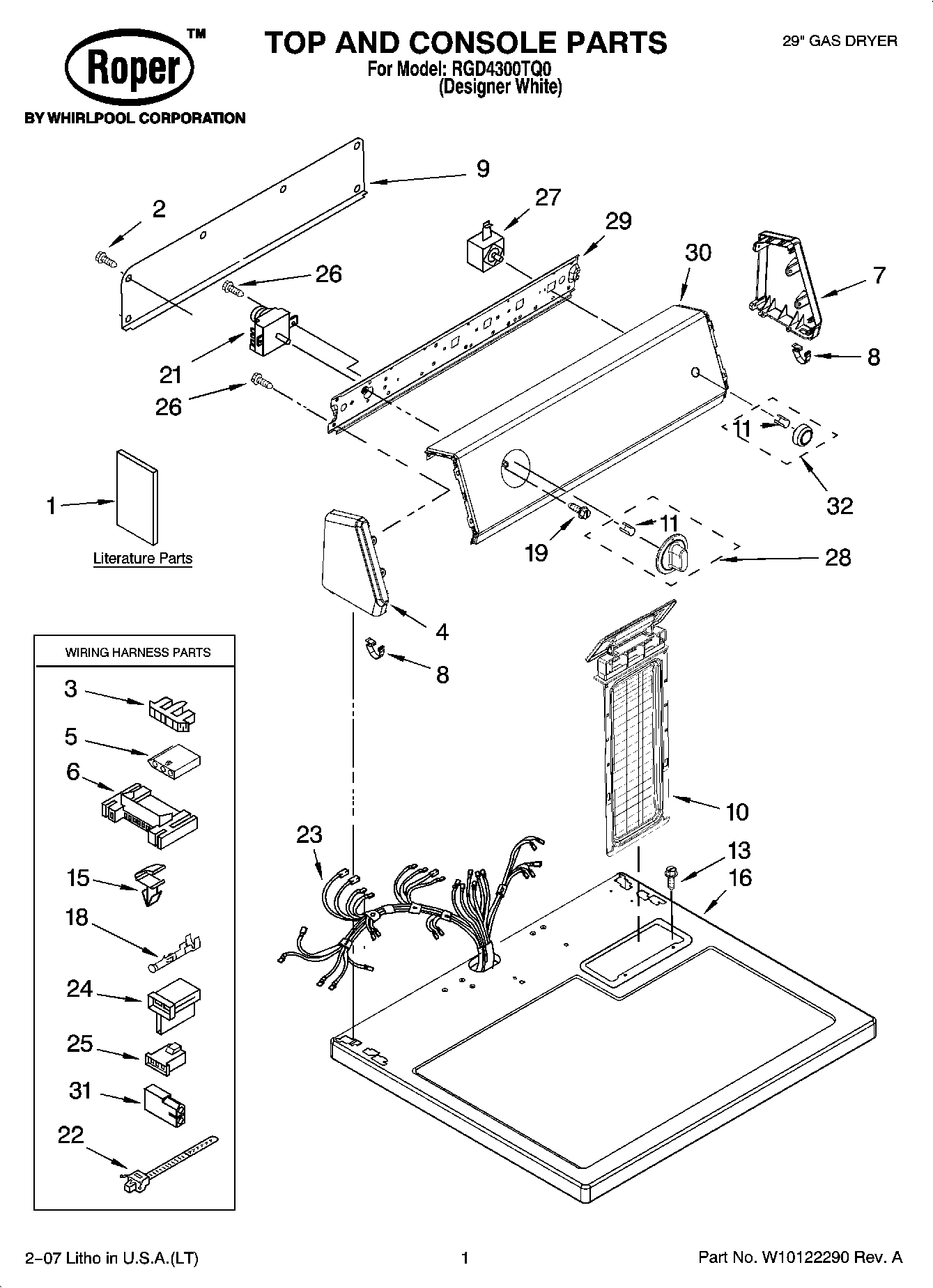

RGD4300TQ0 01 – TOP AND CONSOLE PARTS

RGD4300TQ0 01 – TOP AND CONSOLE PARTS

Written by

in

RGD4300TQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Instructions, Installation
1Wiring Diagram
1Sheet, Cycle Feature
1Use & Care Guide
1WPL 677818
2WP693995 Whirlpool Screw
3Connector, Timer
4Cap, End (L.H.)
53936144 Whirlpool Connector
63395683 Whirlpool Connector
7Cap, End (R.H.)
8WP8312709 Whirlpool Endcap Clip
9W10103406 Whirlpool Rear Panel
10W10874409 Whirlpool Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
13W11693756 Whirlpool Screw Assembly
15WP3394427 Whirlpool Clip
16WP8563663 Whirlpool Top Assembly
18WP94614 Whirlpool Terminal
193400859 Whirlpool Screw
21WP8299764 Whirlpool Timer
22Tie, Cable
23Harness, Wiring
24WP3403499 Whirlpool Connector
25WP3403498 Whirlpool Connector
26WP90767 Whirlpool Screw
27WP3977456 Whirlpool Start Switch
28Timer-Knob Assembly
29Bracket, Control
30Panel, Control
31Receptacle, Latching (2-Way) (Uses Terminal 94614)
32W10110065 Whirlpool Knob Assembly
