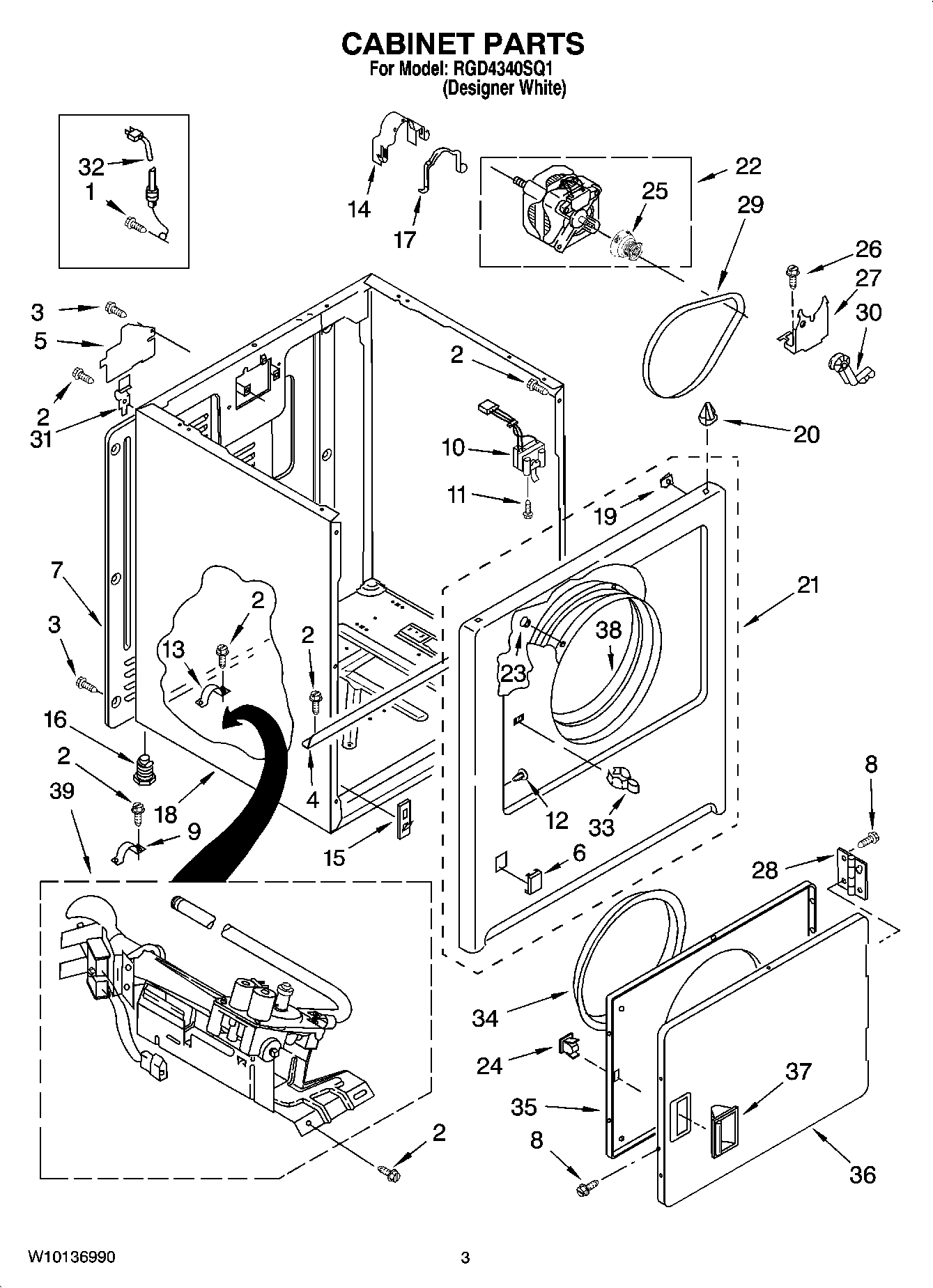

RGD4340SQ1 02 – CABINET PARTS

Products

Position	Product
1	W10850756 Whirlpool Screw
2	SCREW
3	WP693995 Whirlpool Screw
4	Bracket, Cabinet
5	W11539855 Whirlpool Refrigerator Pump
6	Plug, Front Panel (White)
7	280040 Whirlpool Rear Panel
8	WP488627 Whirlpool Refrigerator Screw
9	341029 Whirlpool Clamp
10	WP3406105 Whirlpool Door Switch
11	WP3395530 Whirlpool Screw
12	WP3404413 Whirlpool Plug
14	WP3404162 Whirlpool Clamp
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	49621 Whirlpool Leveling Feet
17	WP660658 Whirlpool Clamp
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Front Panel Assembly (White)
22	279827 Whirlpool Dryer Drive Motor
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
25	WP8066184 Whirlpool Dryer Motor Pulley
26	3400500 Whirlpool Screw
27	WP348780 Whirlpool Base
28	WPW10362431 Whirlpool Hinge Assembly
29	341241 Whirlpool Dryer Drum Belt
30	WP691366 Whirlpool Dryer Idler Pulley Assembly
31	WP8066217 Whirlpool Hinge
32	W11222083 Whirlpool Power Cord
34	SEAL-DOOR DRYER
35	Door, Rear
36	WP3403361 Whirlpool Door
37	WP3405184 Whirlpool White Door Handle
38	279264 Whirlpool Bearing and Seal Kit
39	W10823508 Whirlpool Gas Burner
