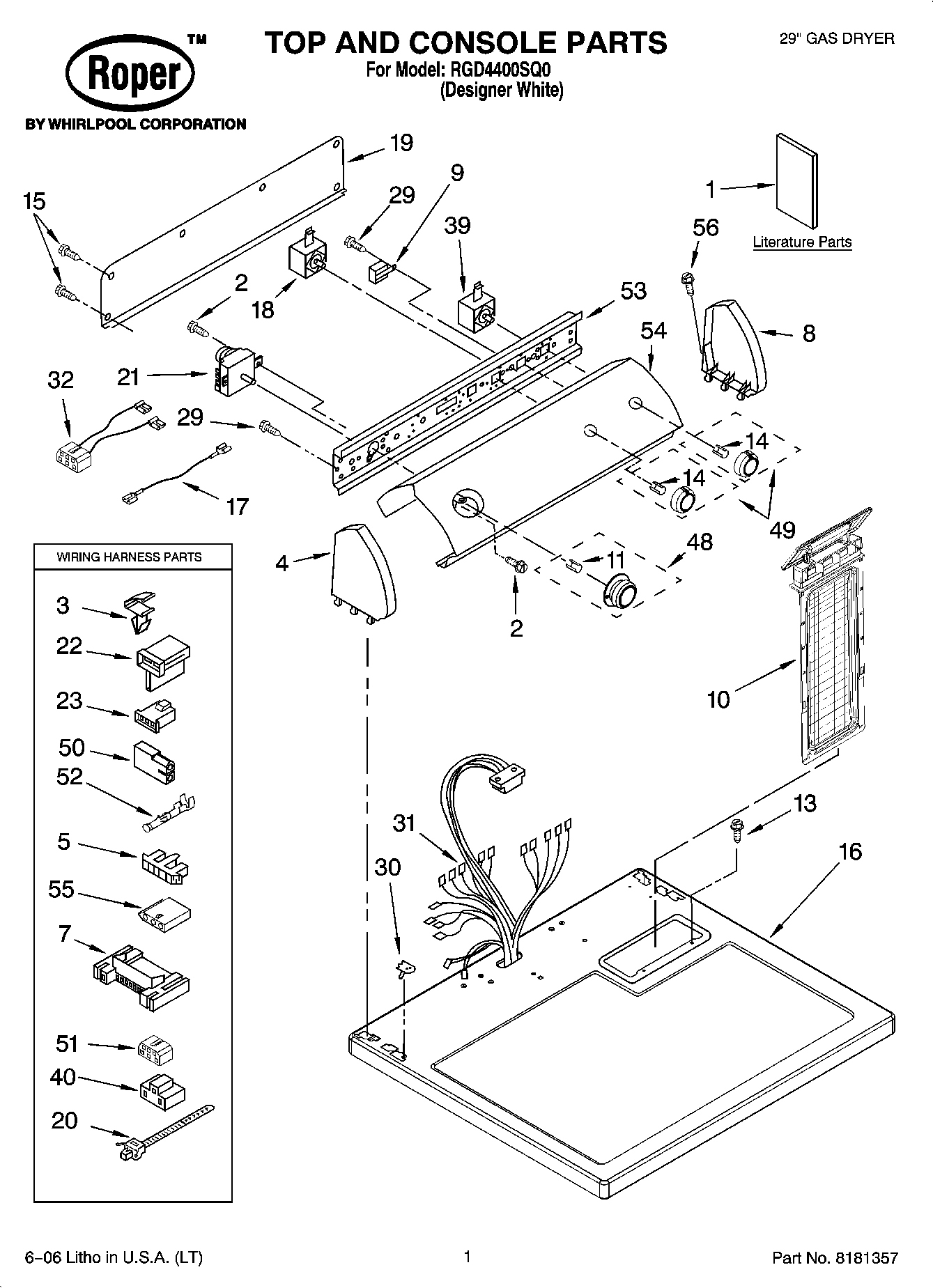

RGD4400SQ0 01 – TOP AND CONSOLE PARTS

RGD4400SQ0 01 – TOP AND CONSOLE PARTS

Written by

in

RGD4400SQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Guide, Use & Care
1Sheet, Cycle Feature
1WPL 677818
1Wiring Diagram
1Installation Instructions
23400859 Whirlpool Screw
3WP3394427 Whirlpool Clip
5Connector, Timer
73395683 Whirlpool Connector
8279960 Whirlpool Endcap Assembly
9WP694419 Whirlpool Buzzer Adjuster
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP688805 Whirlpool Spring Clip
13W11693756 Whirlpool Screw Assembly
14WP8536939 Whirlpool Spring Clip
15WP693995 Whirlpool Screw
16Top
17Wire, Jumper (Black)
18WP3399639 Whirlpool Switch
19W10103406 Whirlpool Rear Panel
20Tie, Cable
21WP8299765 Whirlpool Timer
22WP3403499 Whirlpool Connector
23WP3403498 Whirlpool Connector
29WP90767 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
318299878 Whirlpool Wire Harness
328539893 Whirlpool Wire Harness
39WP3398095 Whirlpool Dryer Start Relay
403401144 Whirlpool Connector
48WP8557455 Whirlpool Knob Timer
49KNOB
50Receptacle, Latching (2-Way) (Uses Terminal 94614)
51Block, Disconnect
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control
553936144 Whirlpool Connector
56WP388326 Whirlpool Screw
