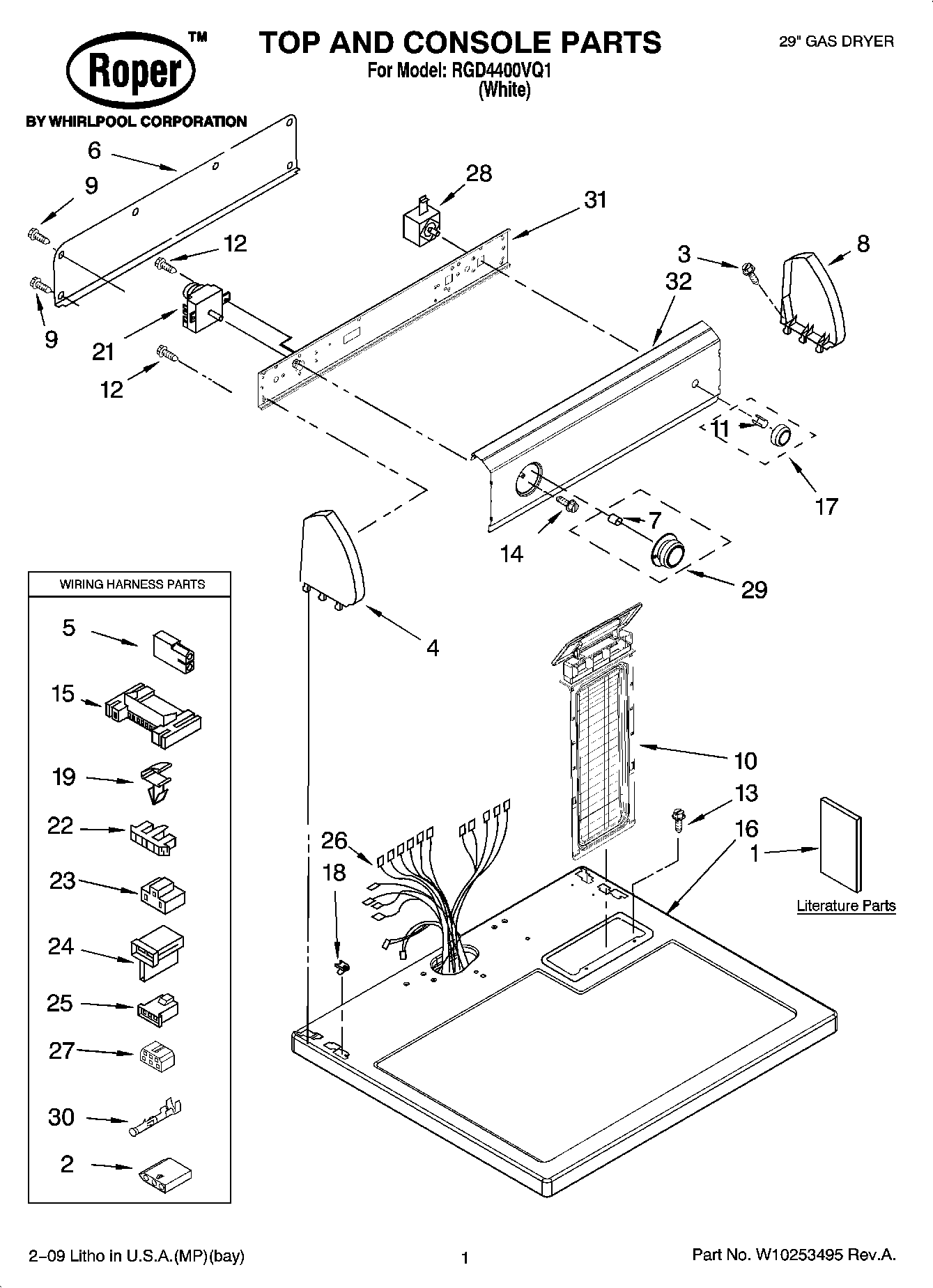

RGD4400VQ1 01 – TOP AND CONSOLE PARTS

RGD4400VQ1 01 – TOP AND CONSOLE PARTS

Written by

in

RGD4400VQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Installation Instructions (English)
1Wiring Diagram
1Sheet, Cycle Feature
1Guide, Use & Care
23936144 Whirlpool Connector
3WP388326 Whirlpool Screw
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
6W10103406 Whirlpool Rear Panel
7WP688805 Whirlpool Spring Clip
8279960 Whirlpool Endcap Assembly
9WP693995 Whirlpool Screw
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top
17Knob, Push-To-Start
18WP357213 Whirlpool Hinge Stopper
19WP3394427 Whirlpool Clip
21WPW10185971 Whirlpool Timer
22Connector, Timer
233401144 Whirlpool Connector
24WP3403499 Whirlpool Connector
25WP3403498 Whirlpool Connector
26W10186074 Whirlpool Wire Harness
27Block, Disconnect
28WP3977456 Whirlpool Start Switch
29WP8557455 Whirlpool Knob Timer
30WP94614 Whirlpool Terminal
31Bracket, Control
32Panel, Control
