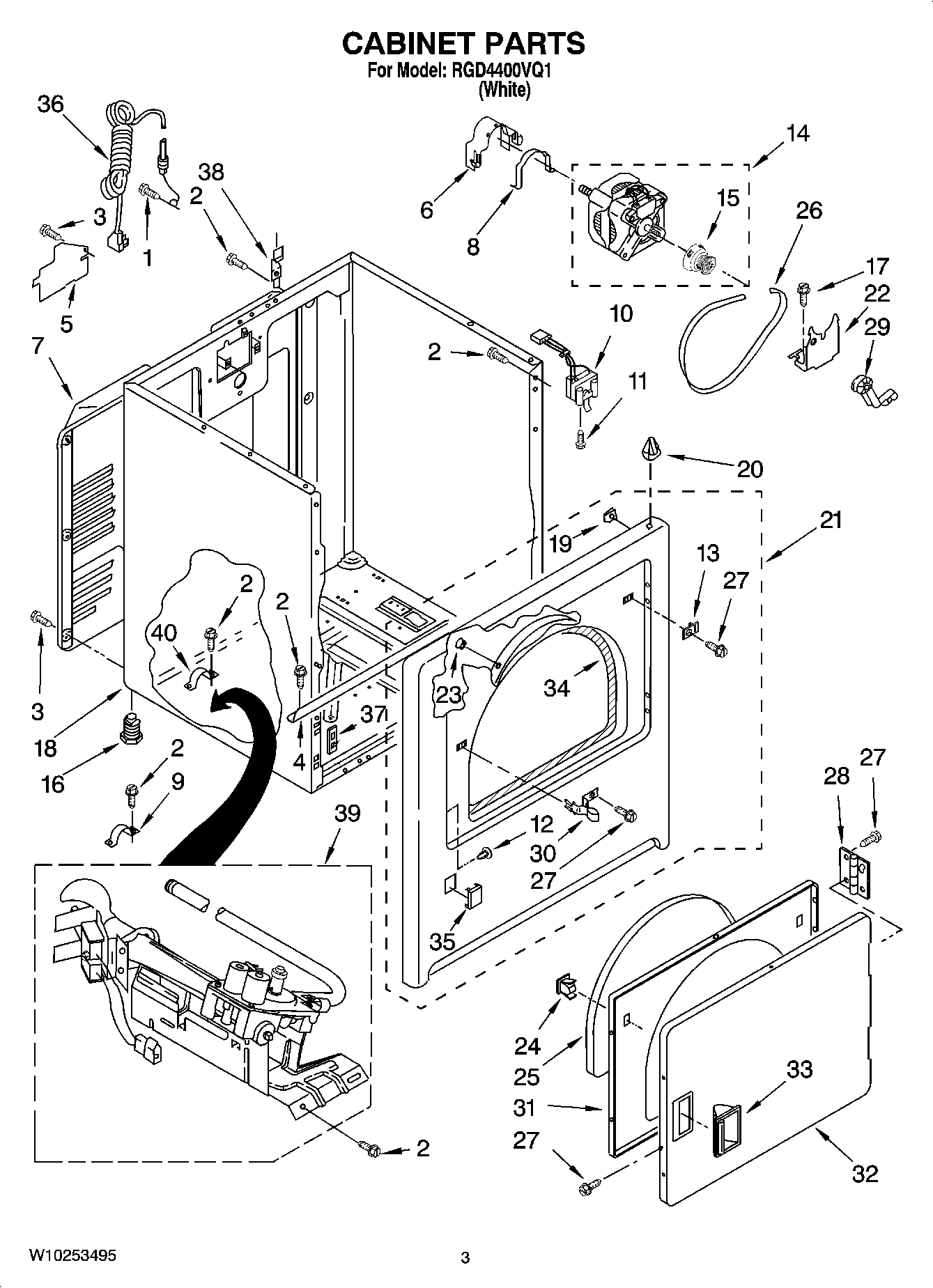

RGD4400VQ1 02 – CABINET PARTS

Products

Position	Product
1	W10850756 Whirlpool Screw
2	SCREW
3	WP693995 Whirlpool Screw
4	Bracket, Cabinet
5	W11539855 Whirlpool Refrigerator Pump
6	WP3404162 Whirlpool Clamp
7	280043 Whirlpool Rear Panel
8	CLAMP
9	341029 Whirlpool Clamp
10	SWITCH-DOOR DRYER
11	WP3395530 Whirlpool Screw
12	WP3404413 Whirlpool Plug
13	WP3403630 Whirlpool Plug
14	279827 Whirlpool Dryer Drive Motor
15	WP8066184 Whirlpool Dryer Motor Pulley
16	49621 Whirlpool Leveling Feet
17	3400500 Whirlpool Screw
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	W10248059 Whirlpool Panel
22	WP348780 Whirlpool Base
23	279220 Whirlpool Clip
24	WP3389441 Whirlpool Door Catch
25	SEAL-DOOR DRYER
26	341241 Whirlpool Dryer Drum Belt
27	WP488627 Whirlpool Refrigerator Screw
28	WPW10362431 Whirlpool Hinge Assembly
29	WP691366 Whirlpool Dryer Idler Pulley Assembly
30	W11429589 Whirlpool Strike
31	WP3402341 Whirlpool Door
32	W10861227 Whirlpool Door Assembly
33	WP3405184 Whirlpool White Door Handle
34	W11035878 Whirlpool Bearing and Seal
35	Plug, Front Panel (White)
36	W11222083 Whirlpool Power Cord
37	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
38	WP8066217 Whirlpool Hinge
39	W10823508 Whirlpool Gas Burner
