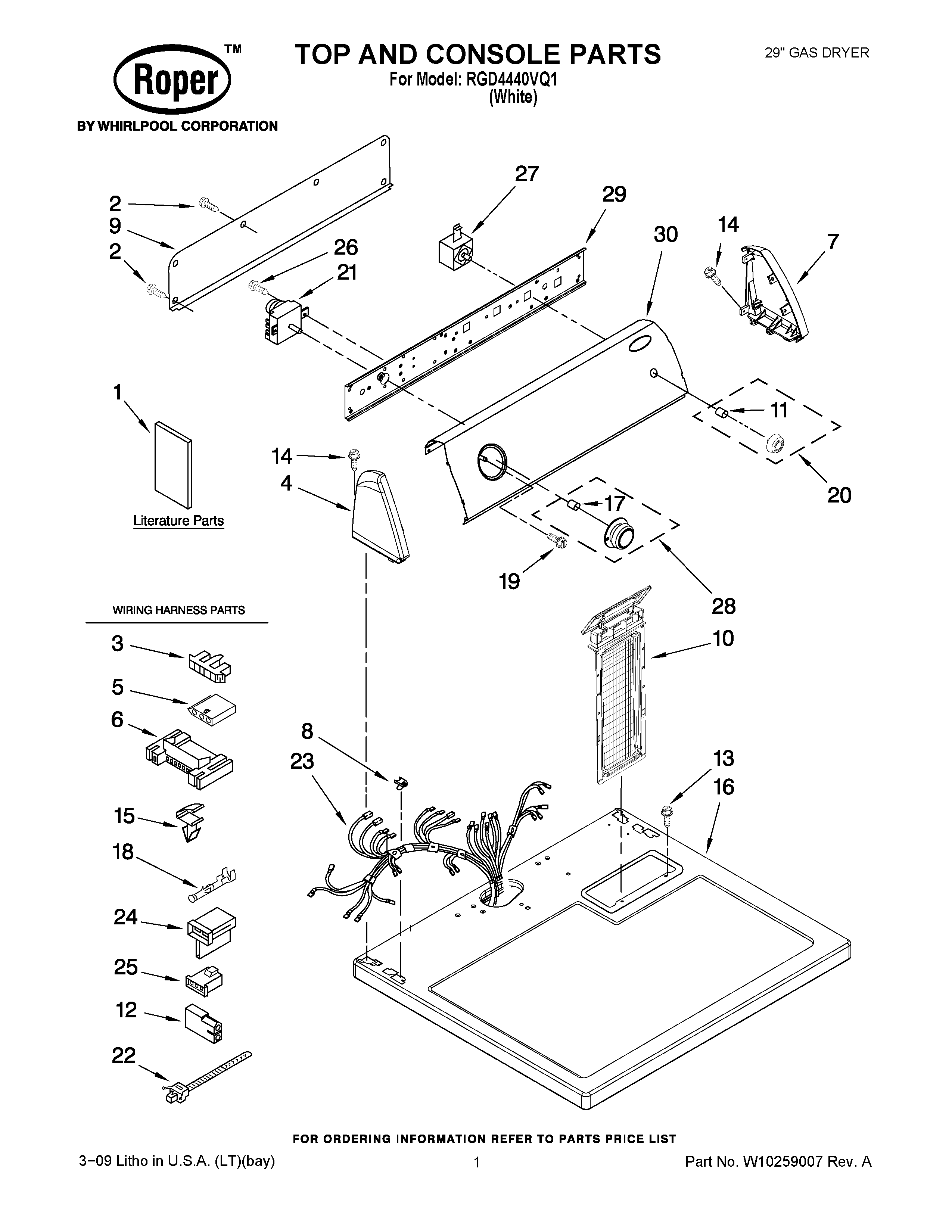

RGD4440VQ1 01 – TOP AND CONSOLE PARTS

RGD4440VQ1 01 – TOP AND CONSOLE PARTS

Written by

in

RGD4440VQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Installation Instructions (English)
1Sheet, Cycle Feature
1Wiring Diagram
1Guide, Use & Care
2WP693995 Whirlpool Screw
3Connector, Timer
53936144 Whirlpool Connector
63395683 Whirlpool Connector
7279960 Whirlpool Endcap Assembly
8WP357213 Whirlpool Hinge Stopper
9W10103406 Whirlpool Rear Panel
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12Receptacle, Latching (2-Way) (Uses Terminal 94614)
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15WP3394427 Whirlpool Clip
16Top
17WP688805 Whirlpool Spring Clip
18WP94614 Whirlpool Terminal
193400859 Whirlpool Screw
20Knob, Push-To-Start
21WPW10185971 Whirlpool Timer
22Tie, Cable
23W10186074 Whirlpool Wire Harness
24WP3403499 Whirlpool Connector
25WP3403498 Whirlpool Connector
26WP90767 Whirlpool Screw
27WP3977456 Whirlpool Start Switch
28WP8557455 Whirlpool Knob Timer
29Bracket, Control
30Panel, Control
