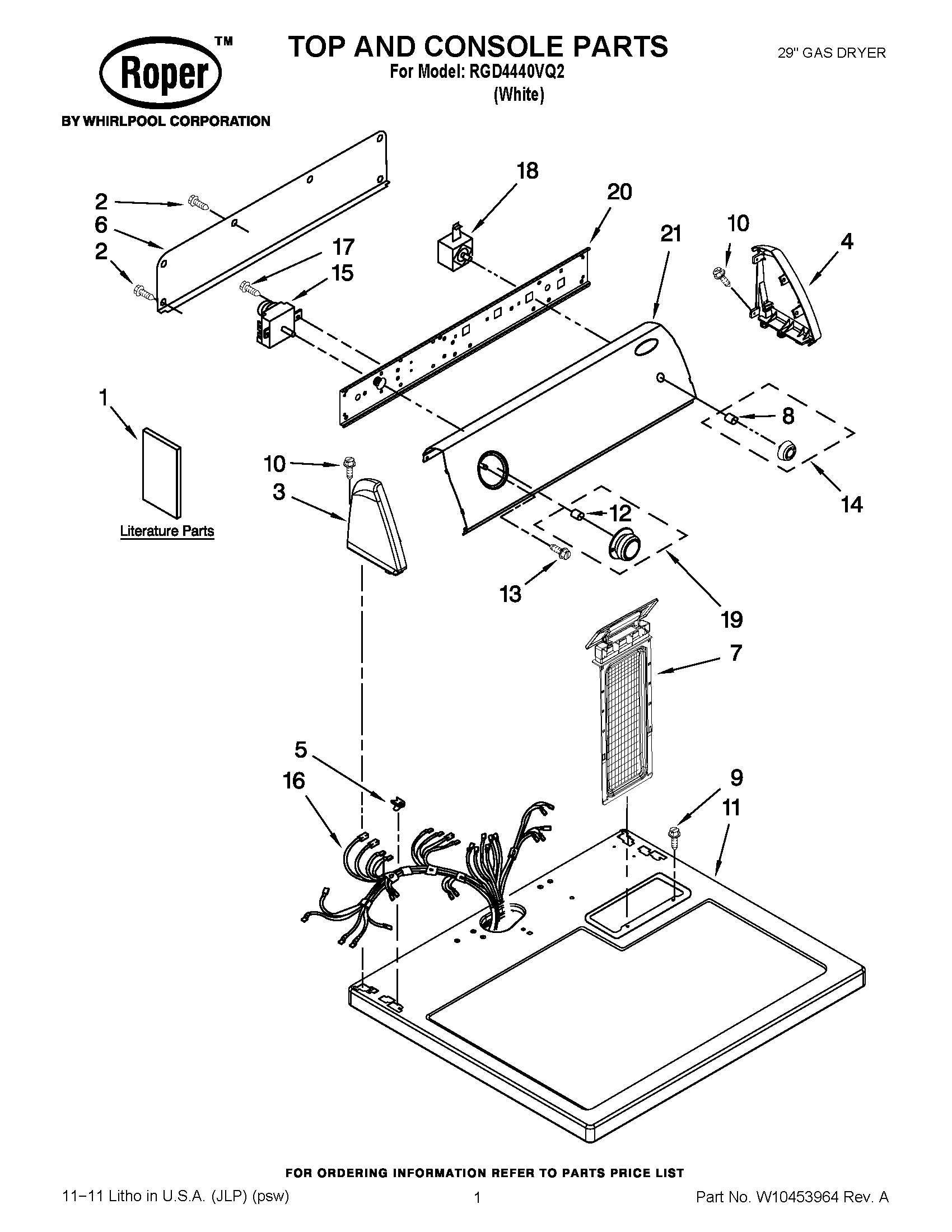

RGD4440VQ2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Wiring Diagram
1INSTALLATION, INSTRUCTIONS
1GUIDE, USE & CARE
2WP693995 Whirlpool Screw
4279960 Whirlpool Endcap Assembly
5WP357213 Whirlpool Hinge Stopper
6W10103406 Whirlpool Rear Panel
7WPW10717210 Whirlpool Dryer Lint Screen Filter
8WP8536939 Whirlpool Spring Clip
9W11693756 Whirlpool Screw Assembly
10WP388326 Whirlpool Screw
11Top
12WP688805 Whirlpool Spring Clip
133400859 Whirlpool Screw
14Knob, Push-To-Start
15WPW10185971 Whirlpool Timer
16W10186074 Whirlpool Wire Harness
17WP90767 Whirlpool Screw
18WP3977456 Whirlpool Start Switch
19WP8557455 Whirlpool Knob Timer
20Bracket, Control
21Panel, Control
