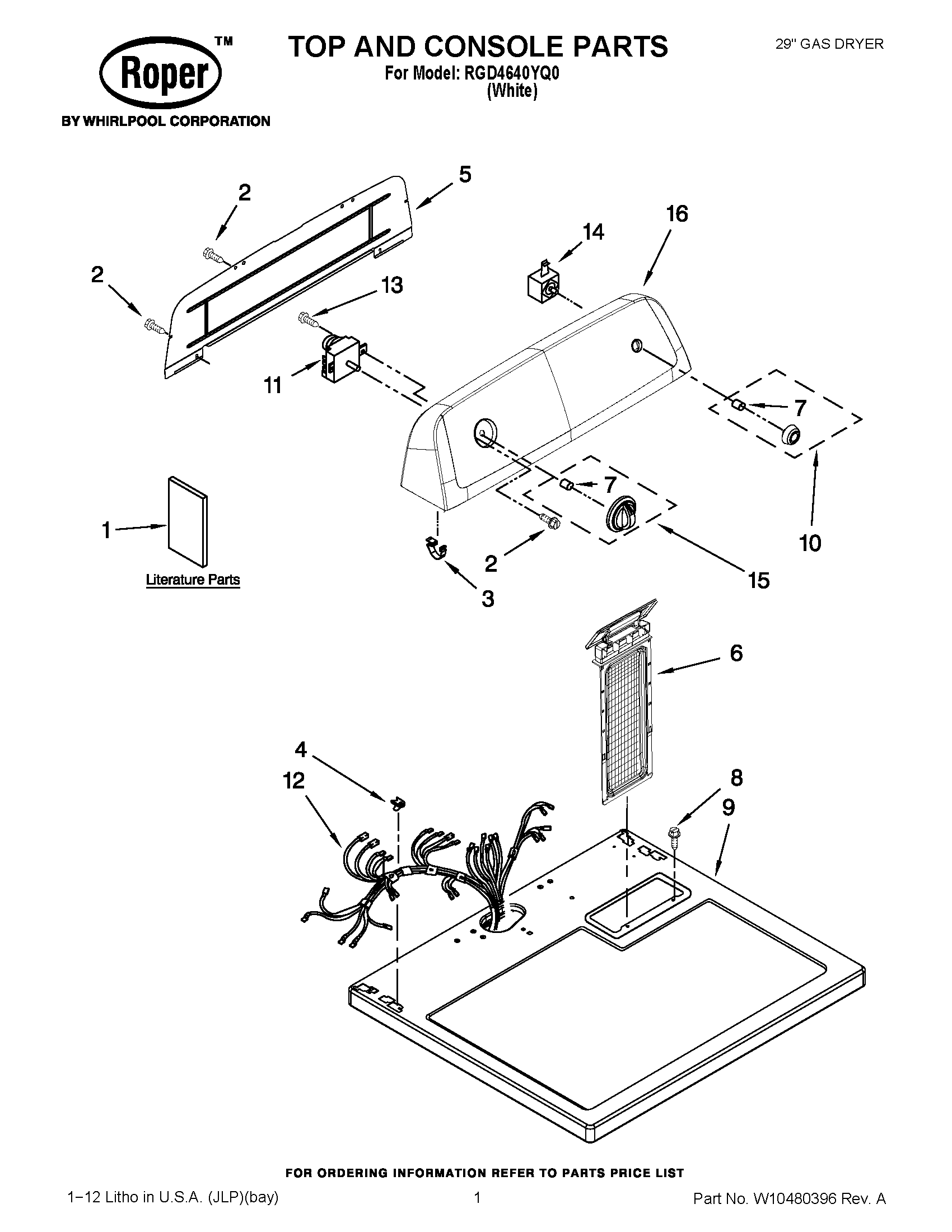

RGD4640YQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION, INSTRUCTIONS
1WIRING DIAGRAM
1USE AND CARE GUIDE
2WP693995 Whirlpool Screw
3WP8312709 Whirlpool Endcap Clip
4WP357213 Whirlpool Hinge Stopper
5WPW10416486 Whirlpool Rear Panel
6WPW10717210 Whirlpool Dryer Lint Screen Filter
7WP8536939 Whirlpool Spring Clip
8W11693756 Whirlpool Screw Assembly
9WP8563663 Whirlpool Top Assembly
10WPW10453948 Whirlpool Knob
11W10857611 Whirlpool Timer
12W10450287 Whirlpool Wire Harness
13WP90767 Whirlpool Screw
14WPW10420741 Whirlpool Dryer Start Switch
15WPW10711289 Whirlpool Washer Control Knob Dryer
16W10096999 Whirlpool Control Panel
