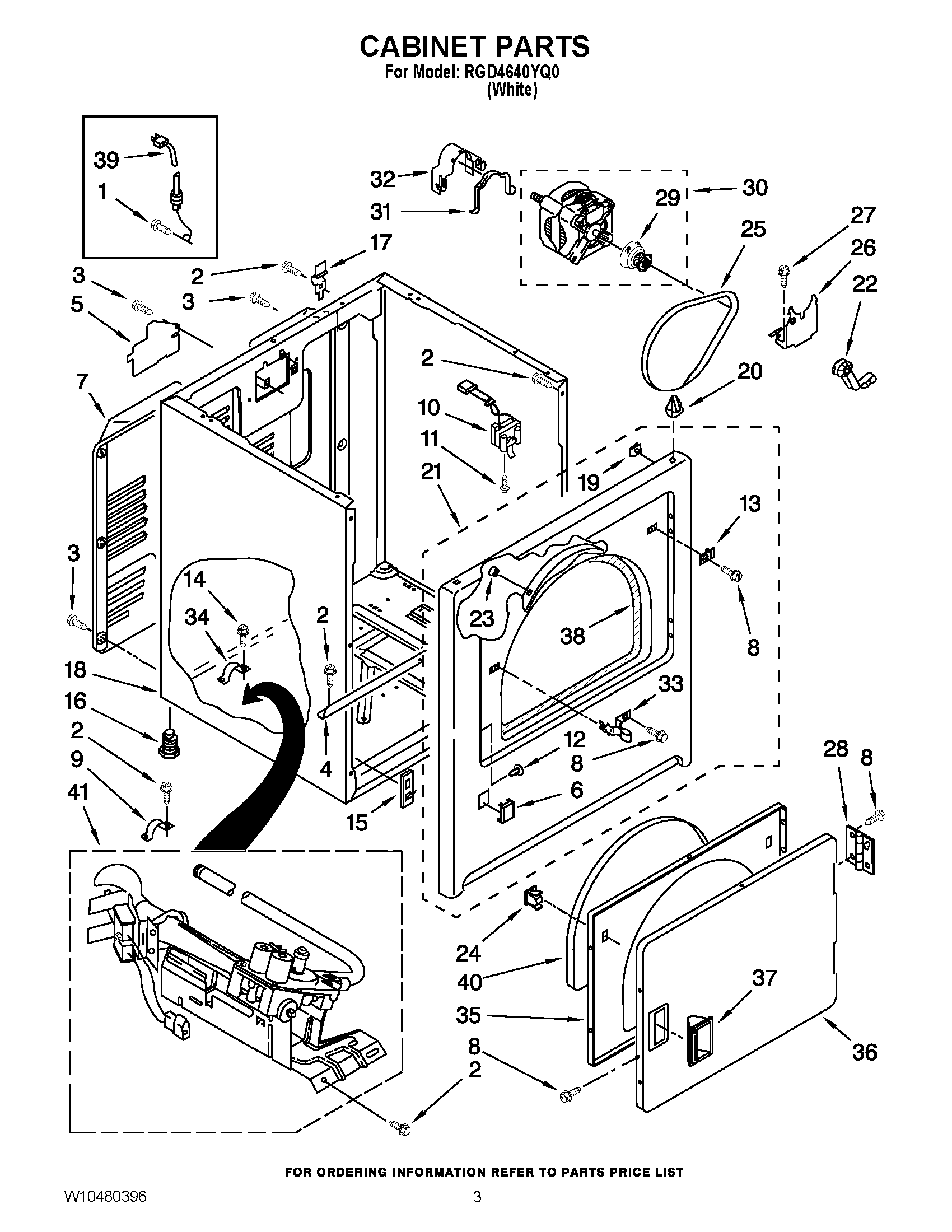

RGD4640YQ0 02 – CABINET PARTS

Products

Position	Product
1	W10850756 Whirlpool Screw
2	SCREW
3	WP693995 Whirlpool Screw
4	BRACKET, CABINET
5	W11539855 Whirlpool Refrigerator Pump
6	W10811916 Whirlpool Plug
7	280043 Whirlpool Rear Panel
8	WP488627 Whirlpool Refrigerator Screw
9	341029 Whirlpool Clamp
10	SWITCH-DOOR DRYER
11	WP3395530 Whirlpool Screw
12	WP3404413 Whirlpool Plug
13	WP3403630 Whirlpool Plug
14	WP3390631 Whirlpool Screw
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	49621 Whirlpool Leveling Feet
17	WP8066217 Whirlpool Hinge
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP8066092 Whirlpool Panel Clip
21	W10248059 Whirlpool Panel
22	WP691366 Whirlpool Dryer Idler Pulley Assembly
23	279220 Whirlpool Clip
24	WP3389441 Whirlpool Door Catch
25	341241 Whirlpool Dryer Drum Belt
26	WP348780 Whirlpool Base
27	3400500 Whirlpool Screw
28	WPW10362431 Whirlpool Hinge Assembly
29	WP8066184 Whirlpool Dryer Motor Pulley
30	279827 Whirlpool Dryer Drive Motor
31	CLAMP
32	WP3404162 Whirlpool Clamp
33	W11429589 Whirlpool Strike
35	WP3402341 Whirlpool Door
36	W10861227 Whirlpool Door Assembly
37	WP3405184 Whirlpool White Door Handle
38	W11035878 Whirlpool Bearing and Seal
39	W11222083 Whirlpool Power Cord
40	SEAL-DOOR DRYER
41	W10823508 Whirlpool Gas Burner
