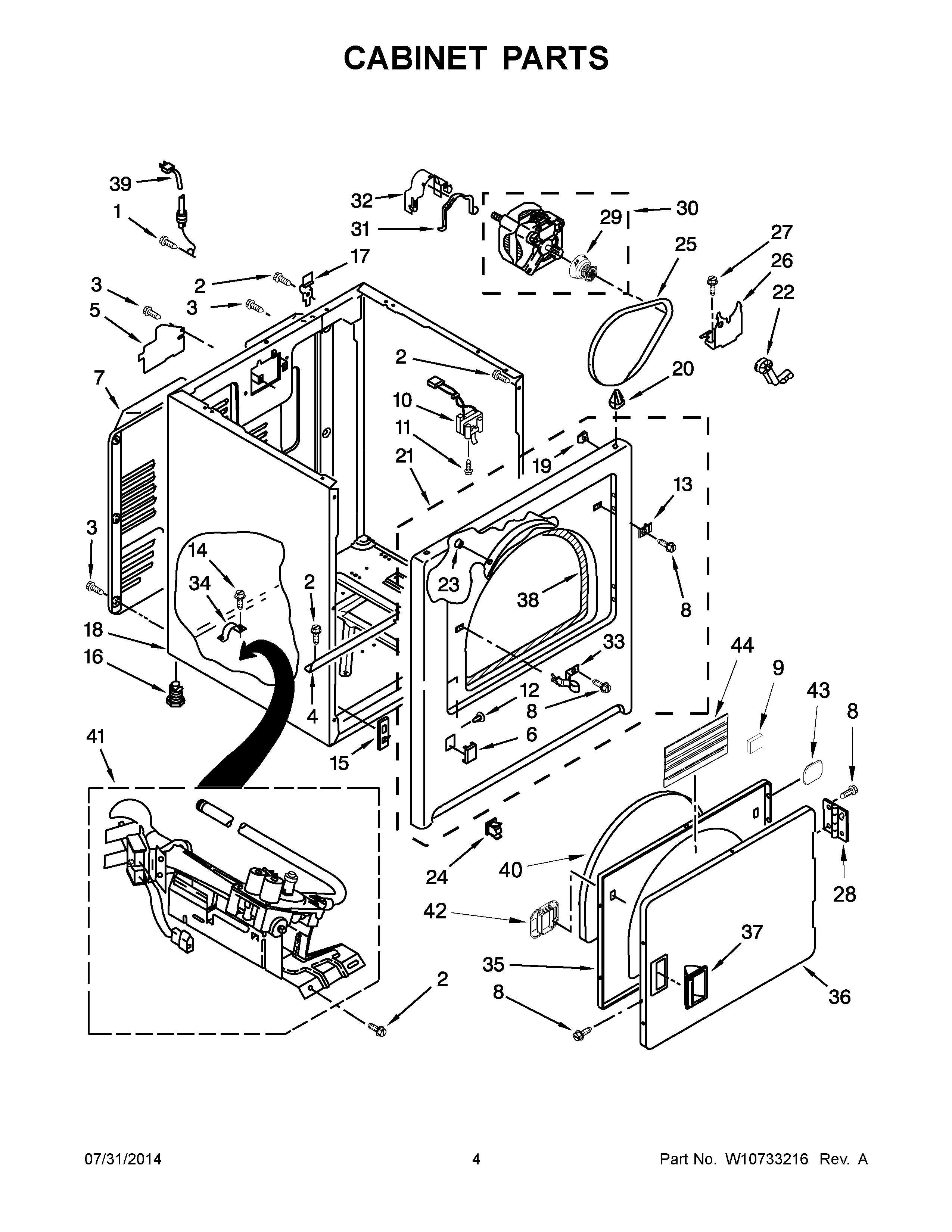

RGD4640YQ3 03 – CABINET PARTS

Products

Position	Product
1	W10850756 Whirlpool Screw
2	SCREW
3	WP693995 Whirlpool Screw
4	BRACKET, CABINET
5	W11539855 Whirlpool Refrigerator Pump
6	W10811916 Whirlpool Plug
7	280043 Whirlpool Rear Panel
8	WP488627 Whirlpool Refrigerator Screw
9	3389682 Whirlpool Spacer
10	SWITCH-DOOR DRYER
11	WP3395530 Whirlpool Screw
12	WP3404413 Whirlpool Plug
13	W11684591 Whirlpool Dryer Plug
14	WP3390631 Whirlpool Screw
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	49621 Whirlpool Leveling Feet
17	WP8066217 Whirlpool Hinge
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP8066092 Whirlpool Panel Clip
21	W10248059 Whirlpool Panel
22	WP691366 Whirlpool Dryer Idler Pulley Assembly
23	279220 Whirlpool Clip
24	W11429587 Whirlpool Catch Assembly
25	341241 Whirlpool Dryer Drum Belt
26	WP348780 Whirlpool Base
27	3400500 Whirlpool Screw
28	WPW10362431 Whirlpool Hinge Assembly
29	WP8066184 Whirlpool Dryer Motor Pulley
30	279827 Whirlpool Dryer Drive Motor
31	CLAMP
32	WP3404162 Whirlpool Clamp
33	W11429589 Whirlpool Strike
34	341029 Whirlpool Clamp
35	WPW10463967 Whirlpool Door Assembly
36	W10861227 Whirlpool Door Assembly
37	W10909035 Whirlpool Handle
38	W11035878 Whirlpool Bearing and Seal
39	W11222083 Whirlpool Power Cord
40	SEAL-DOOR DRYER
41	W10823508 Whirlpool Gas Burner
42	WPW10529197 Whirlpool Catch Assembly
43	W11173656 Whirlpool Cover
44	W10636378 Whirlpool Pad
