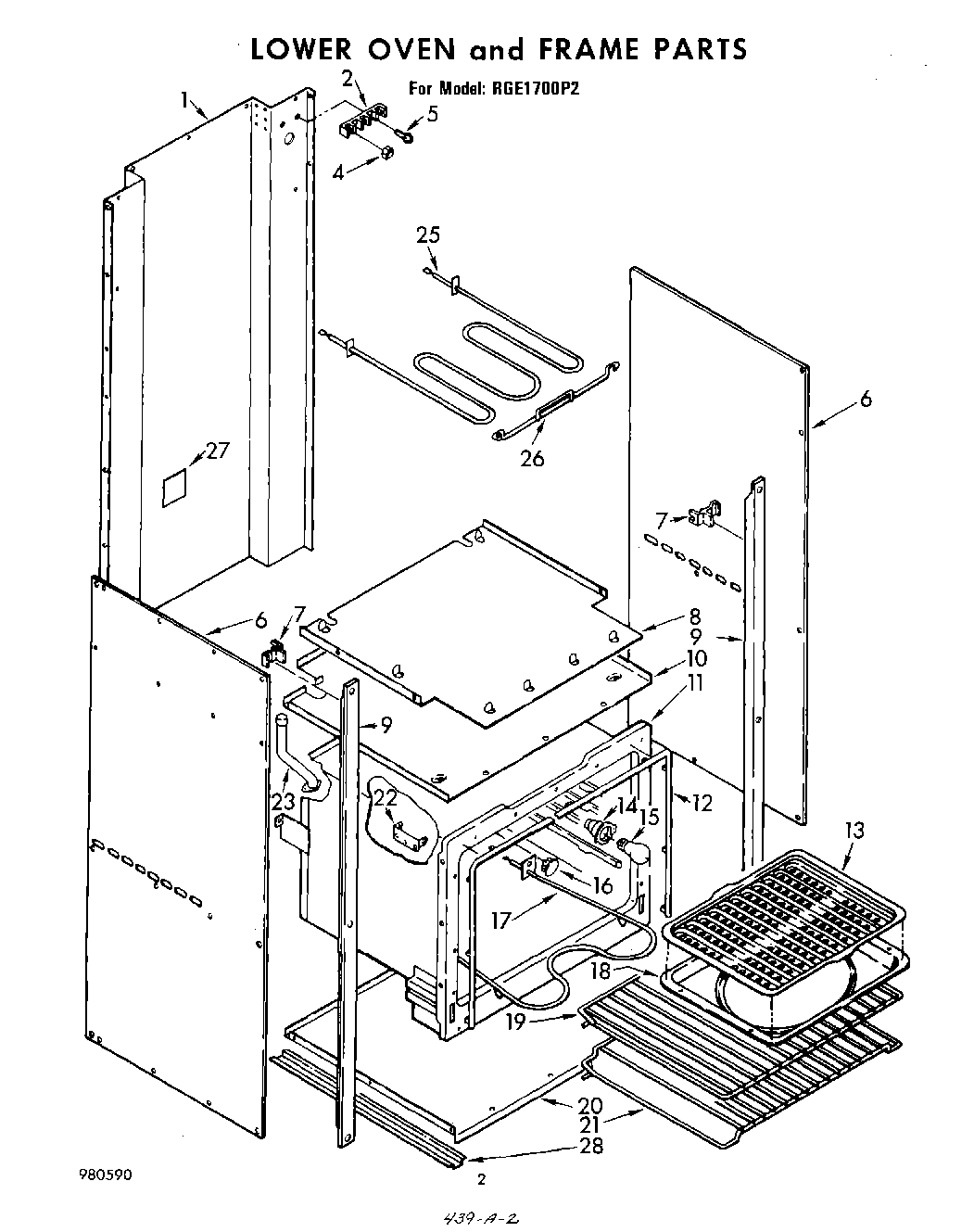

RGE1700P2 02 – LOWER OVEN AND FRAME , LITERATURE A

RGE1700P2 02 – LOWER OVEN AND FRAME , LITERATURE A

Written by

in

RGE1700P2 02 – LOWER OVEN AND FRAME , LITERATURE A

Products

PositionProduct
1Casing, Back
2WP8203546 Whirlpool Terminal Block
4Hex Nut, 10-32 (6)
5Screw,10-24 x 1/2
6Casing, Side (2)
7Spacer Trim (4)
8Retainer, Insulation Bottom
9Trim, Oven Front (2)
10Partition, Oven
11Oven, Lower (Continuous Clean)
12Gasket, Oven Door
12Alternate
134396923 Whirlpool Broil Pan Set Gray Porcelain
14Socket, Light
14Washer (2)
15RANGE ONLY 40W 120V APPL BULB
16Plug, Button
17WP866375 Whirlpool Range Bake Element
18Pan, Broiler
19Rack, Oven Regular
20Casing, Bottom
21Rack, Oven (Offset)
22Bracket, Thermo Bulb
23Vent Tube
25Unit, Broil
26Hanger, Broil Unit
26Unit Bake (Screw, 10-24 x 1/2 (2))
27Plate, Conduit
27WPL 834649
28Wire, 25“ Roll (White 14 GA.)
28Wire (14 Ga. 150 c Brown)
28Wire (14 Ga. 150 c Blue)
28242831 Whirlpool Oven Wire
28WP482338 Whirlpool Refrigerator Adhesive
28WPL 868846
28511873 Whirlpool Refrigerator Paint
28WPL 799832
28Wire, 25` Roll (Red 14 Ga.)
28Wire, 25` Roll (Black 14 Ga.)
28WPW10208653 Whirlpool Insulation
28WPL 591014
28Wire (14 Ga. 150 c Green)
281
28WPL 308500
28Touch-Up, Oven
28Wire (14 Ga. 200 c Brown)
2818 Ga. 80~c Rating (Red)
28Screw, 10-24 x 1/2 (3)
28Wire (12 Ga. 150 c Black)
28WPL 866338
28Grease
28Wire (14 Ga. 150 c Yellow)
28Wire (14 Ga. 150 c Orange)
28Support, Bottom Casing (2)
28WPL 980590
