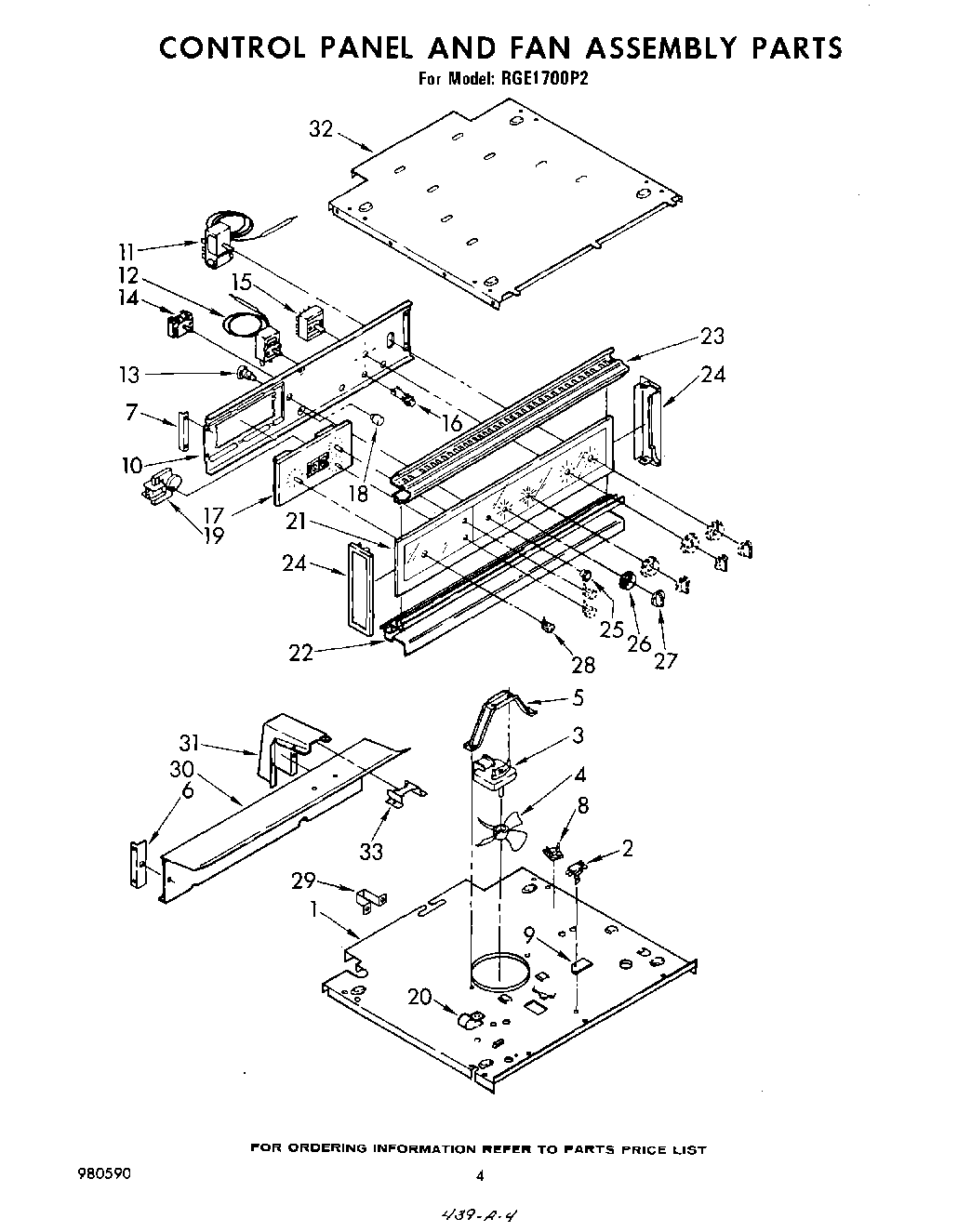

RGE1700P2 03 – CONTROL PANEL AND FAN ASSEMBLYadmin2025-04-26T12:36:33+00:00RGE1700P2 03 – CONTROL PANEL AND FAN ASSEMBLY
Products
| Position | Product |
|---|
| 1 | Casing, Fan |
| 2 | Switch, Limit |
| 3 | Motor, Fan |
| 3 | Nut |
| 3 | Motor, Fan (Alternate) |
| 4 | Fan Blade (Alternate) |
| 4 | WPL 866392 |
| 4 | Fan Blade |
| 5 | Bracket, Fan Motor |
| 6 | Bracket, Housing (2) |
| 7 | WPL 866395 |
| 8 | WP486754 Whirlpool Compactor Screw |
| 8 | 279080 Whirlpool Thermostat |
| 9 | Insulator, Switch |
| 9 | Screw (2) |
| 10 | WPL 868402 |
| 11 | Thermostat |
| 12 | WPL 487428 |
| 12 | WPL 868404 |
| 13 | WPL 866138 |
| 13 | WPL 98754 |
| 14 | Switch, Lower Oven Selector |
| 15 | WPL 486525 |
| 15 | Switch, Selector (Bake/Clean) |
| 16 | WPL 868433 |
| 16 | WPL 868172 |
| 17 | Timer, Digital (Complete) (Includes Illus. 6 & 20) |
| 17 | Hex Nut, 10-32 (6) |
| 18 | WPL 834956 |
| 19 | WPL 866403 |
| 20 | WPL 865797 |
| 20 | WPL 273225 |
| 21 | Glass, Control Panel |
| 21 | WPL 866454 |
| 22 | WPL 868531 |
| 22 | Screw 10-24 x 1/2 |
| 23 | Top, Control Panel |
| 23 | WPL 595119 |
| 24 | End Cap (R.H.) |
| 24 | End Cap (L.H.) |
| 24 | Screw, 8-32 x 3/8 (4) |
| 25 | WPL 866053 |
| 26 | Bezel, Knob (2) |
| 27 | Knob, Control (2) |
| 28 | WPL 241383 |
| 29 | Washer (3) |
| 29 | Spacer, Fan Casing |
| 30 | WPL 866411 |
| 31 | WPL 866412 |
| 32 | WPL 868102 |
| 33 | Screw, 10-24 x 1/2 (3) |
| 33 | WPL 868222 |
