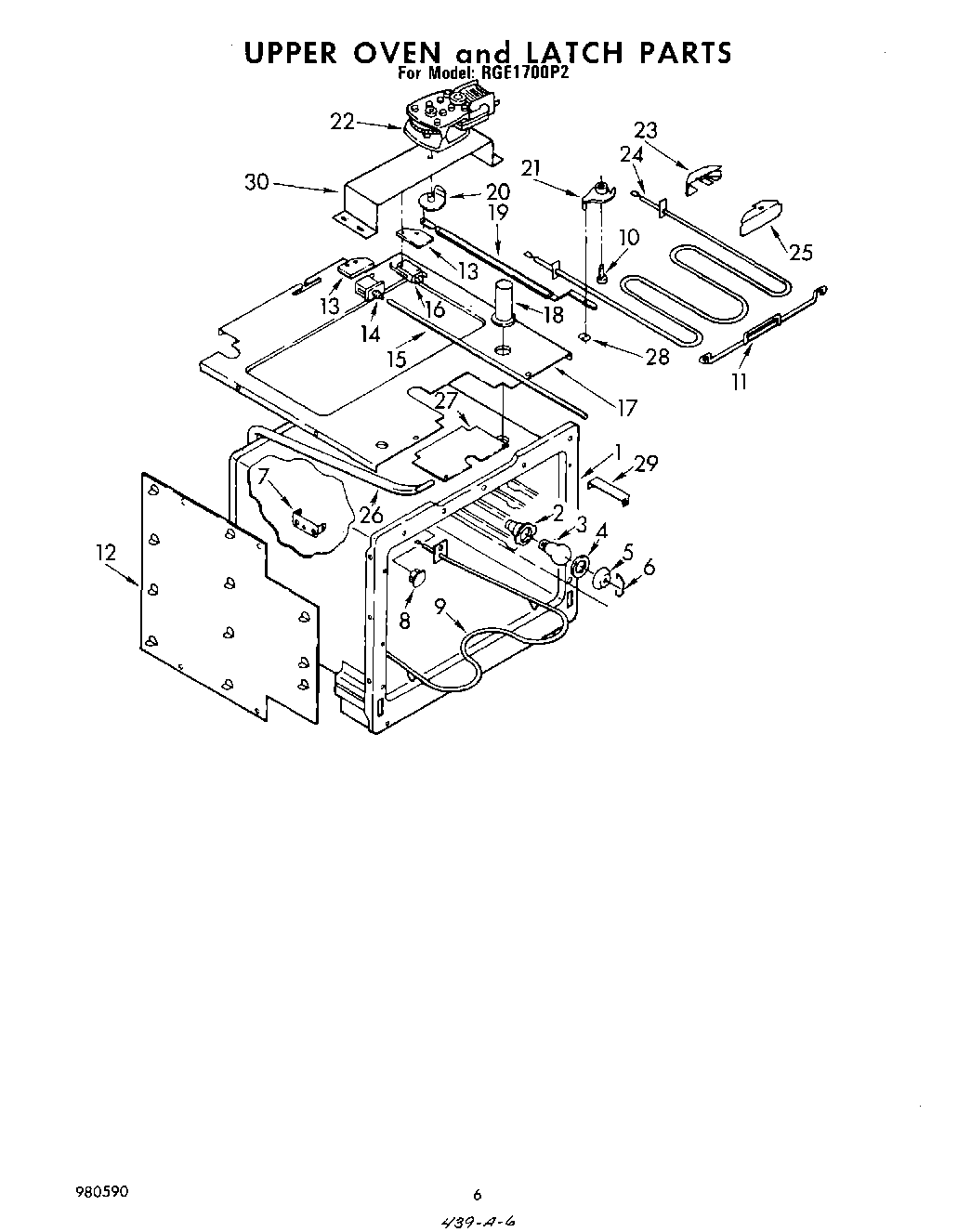

RGE1700P2 04 – UPPER OVEN AND LATCH

Products

Position	Product
1	Oven Body
2	Socket, Light
3	RANGE ONLY 40W 120V APPL BULB
4	Gasket, Light
5	Cover, Light
6	retainer, oven light
7	Bracket, Thermo Bulb
8	Plug, Button
9	WPL 834649
9	WP866375 Whirlpool Range Bake Element
10	Axle, Latch
11	Hanger, Broil Unit
12	Retainer, Insulation Side (2)
13	Insulator, Limit Switch (3)
14	Switch, Upper Limit (Alternate)
14	Switch, Upper Limit (Alternate)
14	Switch, Upper Limit (Alternate)
15	Rod Switch Interlock
16	Switch, Lower Limit (2) (Alternate)
16	Switch, Lower Limit (2) (Alternate)
16	Switch, Lower Limit (2) (Alternate)
16	Switch, Upper Limit (Screw, 4-40 x 1-1/4 (2))
17	Retainer, Insulation (Top)
18	vent tube (alternate)
18	vent tube (alternate)
18	Screw, 10-24 x 3/8 (2)
19	Tie Bar
20	Cam, Door Latch (Alternate)
20	cam, door latch (alternate)
20	Cam, Door Latch (Pin, Spring)
21	WPL 595119
21	Latch, Door
21	Washer (2)
22	WPL 273225
22	Motor (Alternate)
22	Motor (Alternate)
23	Housing, Latch
24	Unit, Broil
24	Unit Bake (Screw, 10-24 x 1/2 (2))
25	Cover, Latch Housing
25	Pushnut, 1/4
26	Tube, Oven Vent
27	Cover, Access
28	Cam, Door Latch (Pushnut, 3/16``)
29	WPL 868799
30	Support Latch Motor
