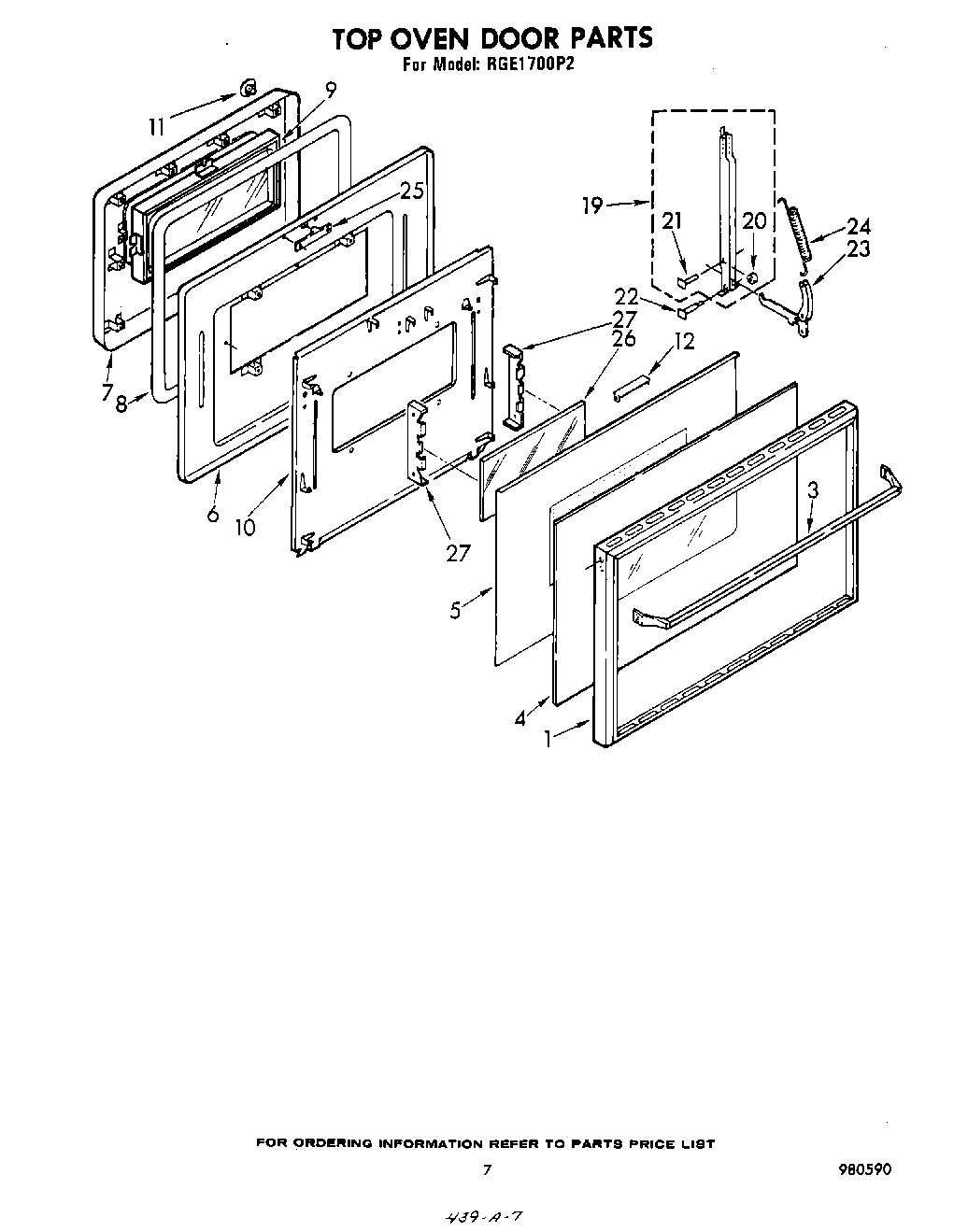

RGE1700P2 05 – TOP OVEN DOOR

RGE1700P2 05 – TOP OVEN DOOR

Written by

in

RGE1700P2 05 – TOP OVEN DOOR

Products

Position	Product
1	Frame, Oven Door
3	Nut
3	Screw, 6-32 x 3/8 (4)
3	Grip, Handle
4	Glass, Outer
5	Panel, Heat Reflector
6	Liner, Oven Door
7	Baffle
8	Seal, Oven Door
9	Window
10	Panel, Air Wash
11	Plug Button 3/16“ (2)
12	“J“ Moulding
19	Channel Assembly (2)
19	Screw
20	Roller, Stop (2)
21	Rivet (2)
21	Nut, Speed
22	Pin, Hinge (2)
23	Arm, Hinge (2)
24	Spring, Door (2)
25	W10080180 Whirlpool Nut
25	Washer (2)
25	Screw 10-24 x 1/2
25	Strike
26	Glass, Inner
27	Screw, 10-24 x 1/2 (3)
27	Retainer, Glass
