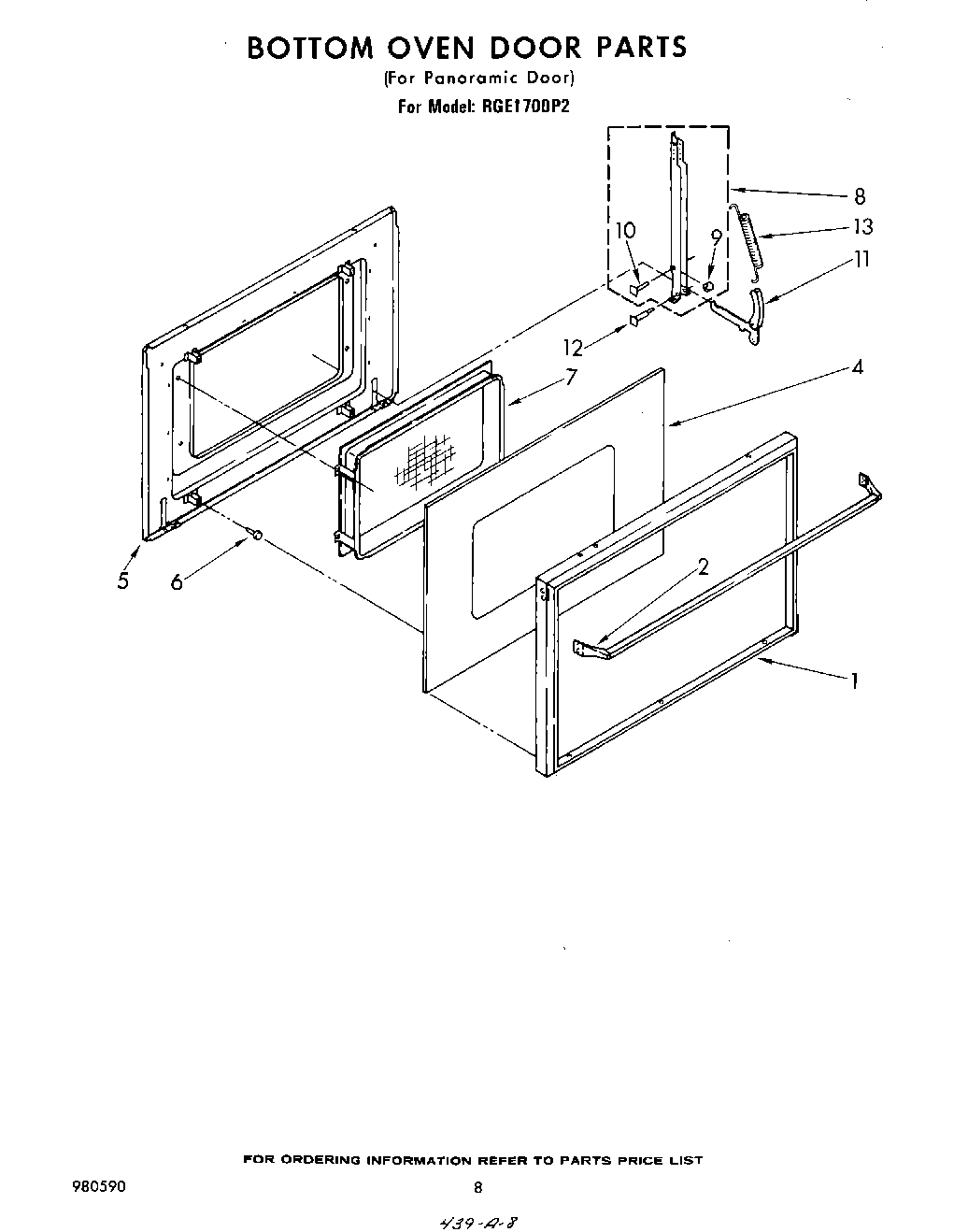

RGE1700P2 06 – BOTTOM OVEN DOOR

Products

Position	Product
1	Frame, Oven Door
2	Nut
2	Grip, Handle
2	Screw, 6-32 x 3/8 (4)
4	Glass, Outer
5	Liner, Oven Door
5	Screw, 10-24 x 3/4 (4)
5	Washer (4)
6	Bumper (4)
7	Window
8	Screw 10-24 x 1/2
8	Channel Assembly (2)
8	Screw
8	Washer (2)
9	Roller, Stop (2)
10	Nut, Speed
10	Rivet (2)
11	Arm Assembly
12	Pin, Hinge (2)
13	Spring, Door (2)
