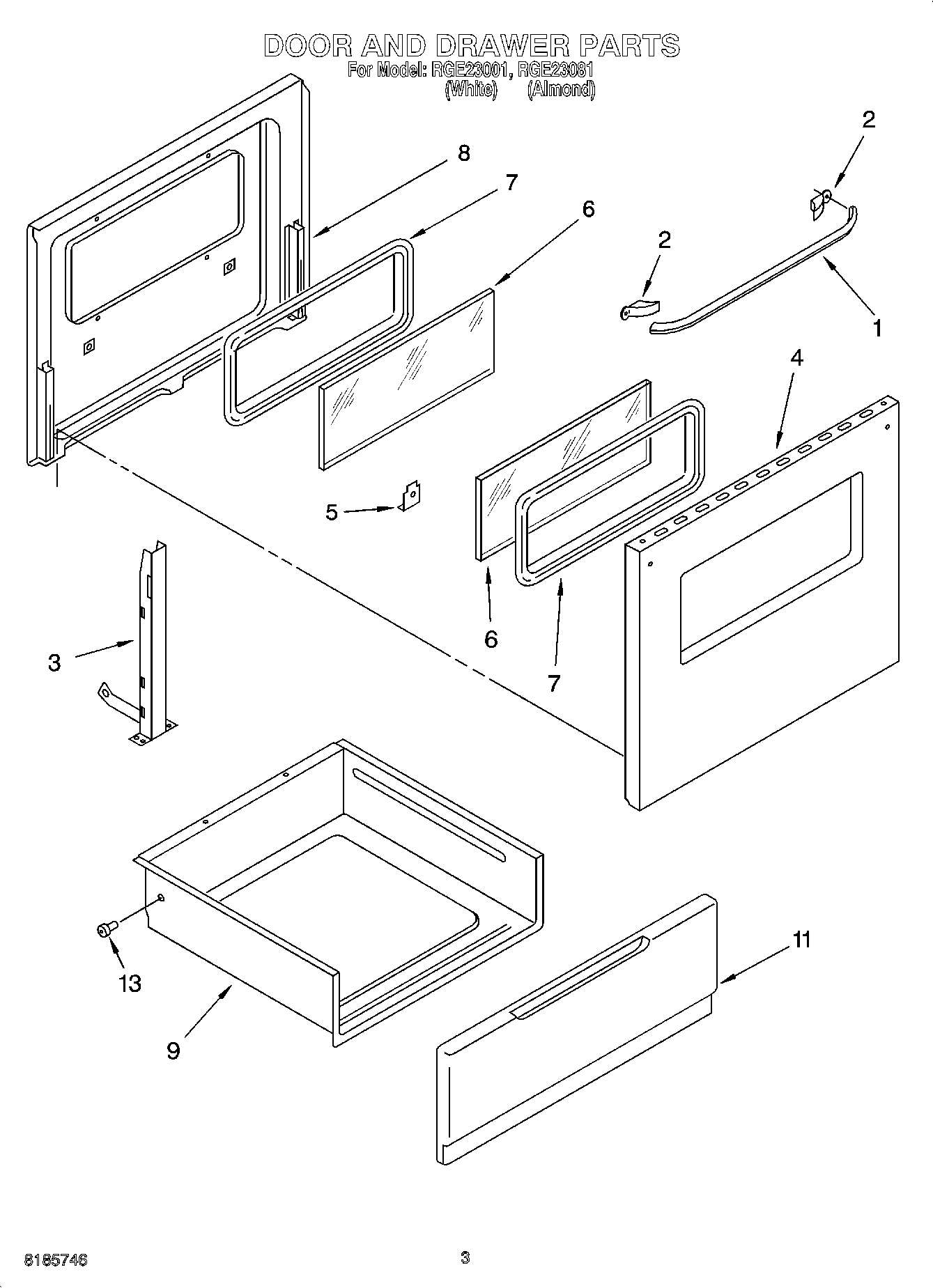

RGE23001 03 – DOOR AND DRAWER PARTS

Products

Position	Product
1	Handle, Door-Black
2	End Cap, Handle (R or L)
2	screw (2) 10-24 x 5/8
3	Hinge, Door R or L
4	Back Splash (Screw (4) 10AB x 1/2“)
4	Panel, Door (Almond)
4	Panel, Door
5	Retainer, Glass (4)
5	Screw
6	Glass, Inner-Outer
7	Gasket, Oven Glass
8	WP4159387 Whirlpool Compactor Screw
8	Liner, Door
9	Drawer & Roller
11	Front, Drawer
11	WP90296 Whirlpool Clip
11	Screw (4) 10 x 3/8
11	Front, Drawer (Almond)
13	814229 Whirlpool Primary Roller
