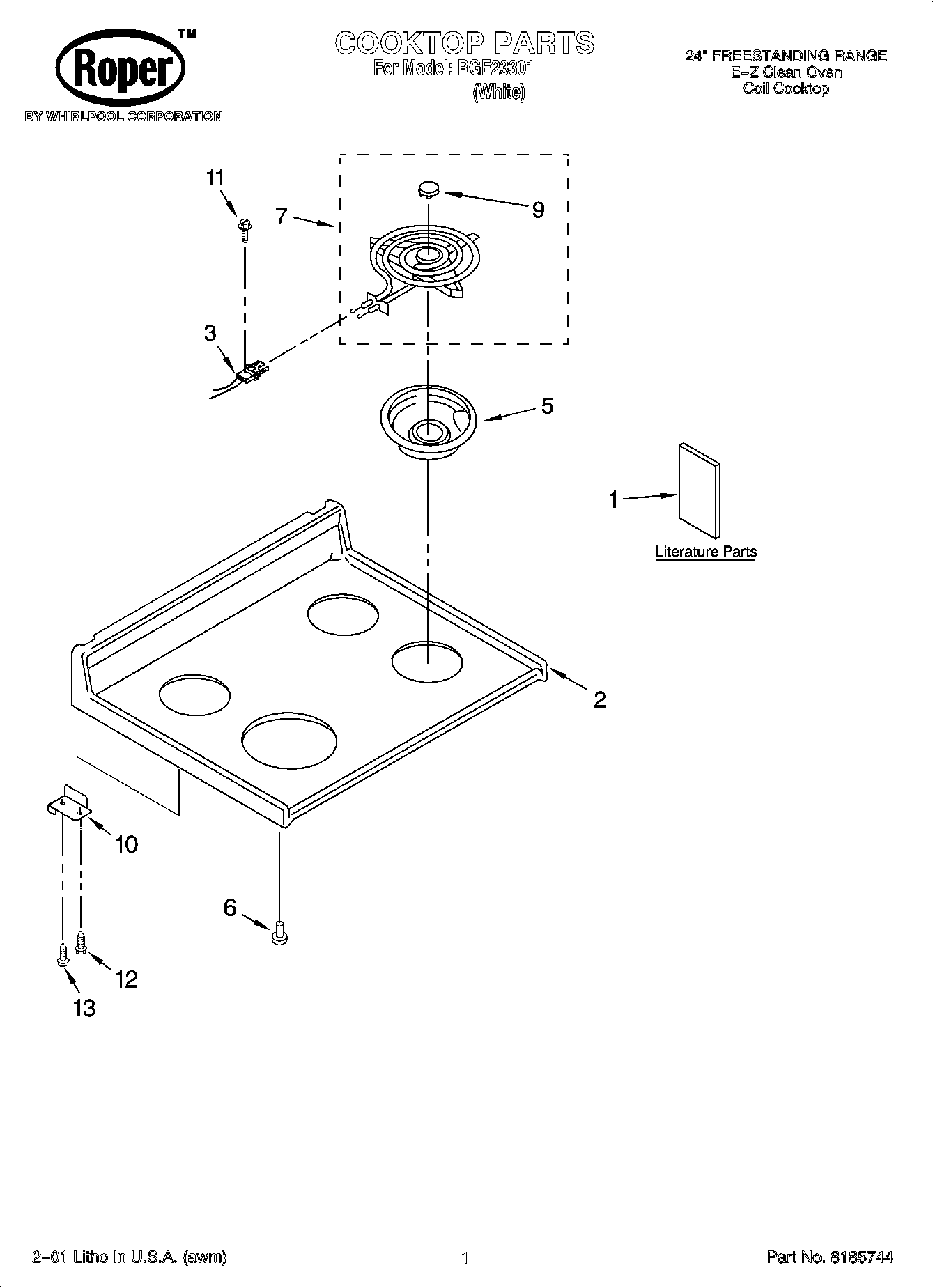

RGE23301 01 – COOKTOP PARTS

RGE23301 01 – COOKTOP PARTS

Written by

in

RGE23301 01 – COOKTOP PARTS

Products

PositionProduct
1Literature Parts (Use & Care Guide)
1Literature Parts (Installation Instructions)
1WPL LIT9752767
2Cooktop, Coil (White)
3Receptacle, Clip
5WPW10290350 Whirlpool Stove Drip Bowl
5WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
6238614 Whirlpool Bumper Hinge
7Element, Surface (Coil, 8“ LF-RR)
7Element, Surface (Coil, 6“ RF)
9Medallion, (4)
10Bracket, Front (Right)
10Bracket, Front (Left)
11WP313808 Whirlpool Screw
12Screw (2) 8 x 3/8
13WP4159387 Whirlpool Compactor Screw
