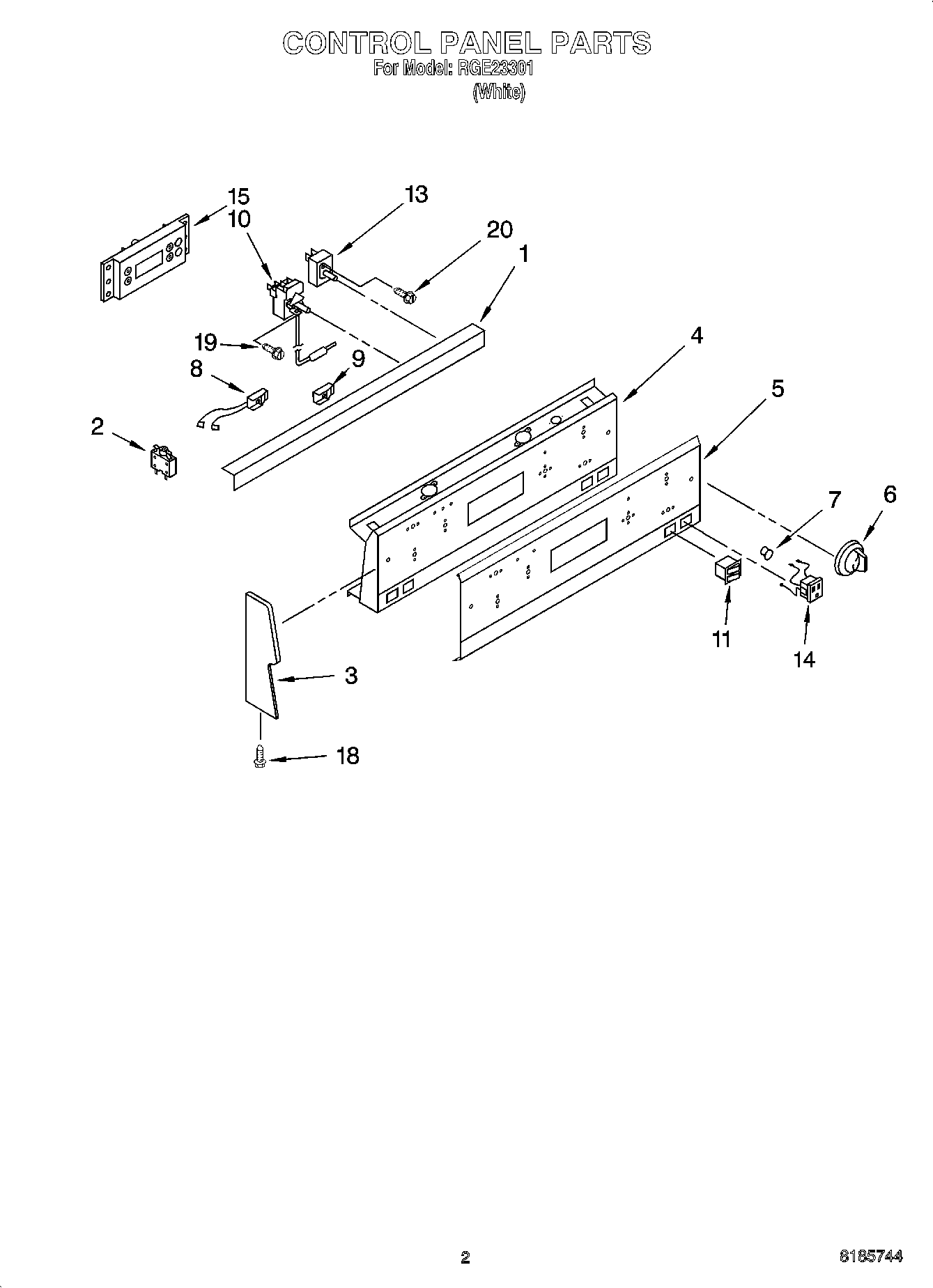

RGE23301 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Lamp Cover, Black
2	Breaker, 15 Amp
3	End Cap R.H.
3	End Cap L.H.
4	Panel, Control (Backguard)
5	Panel, Control
6	Knobs, Control (5)
7	WP9750343 Whirlpool Light Lens
8	Light, Indicator (Oven – Thermostat)
9	Light, Indicator (Surface Unit (2))
10	Thermostat
11	Switch, Oven Light
13	WP9750641 Whirlpool Infinite Switch
13	WP9750638 Whirlpool Infinite Switch
14	Outlet, Untimed
15	Timer
18	WP4159387 Whirlpool Compactor Screw
19	Screw (2)
20	WP3400882 Whirlpool Screw
