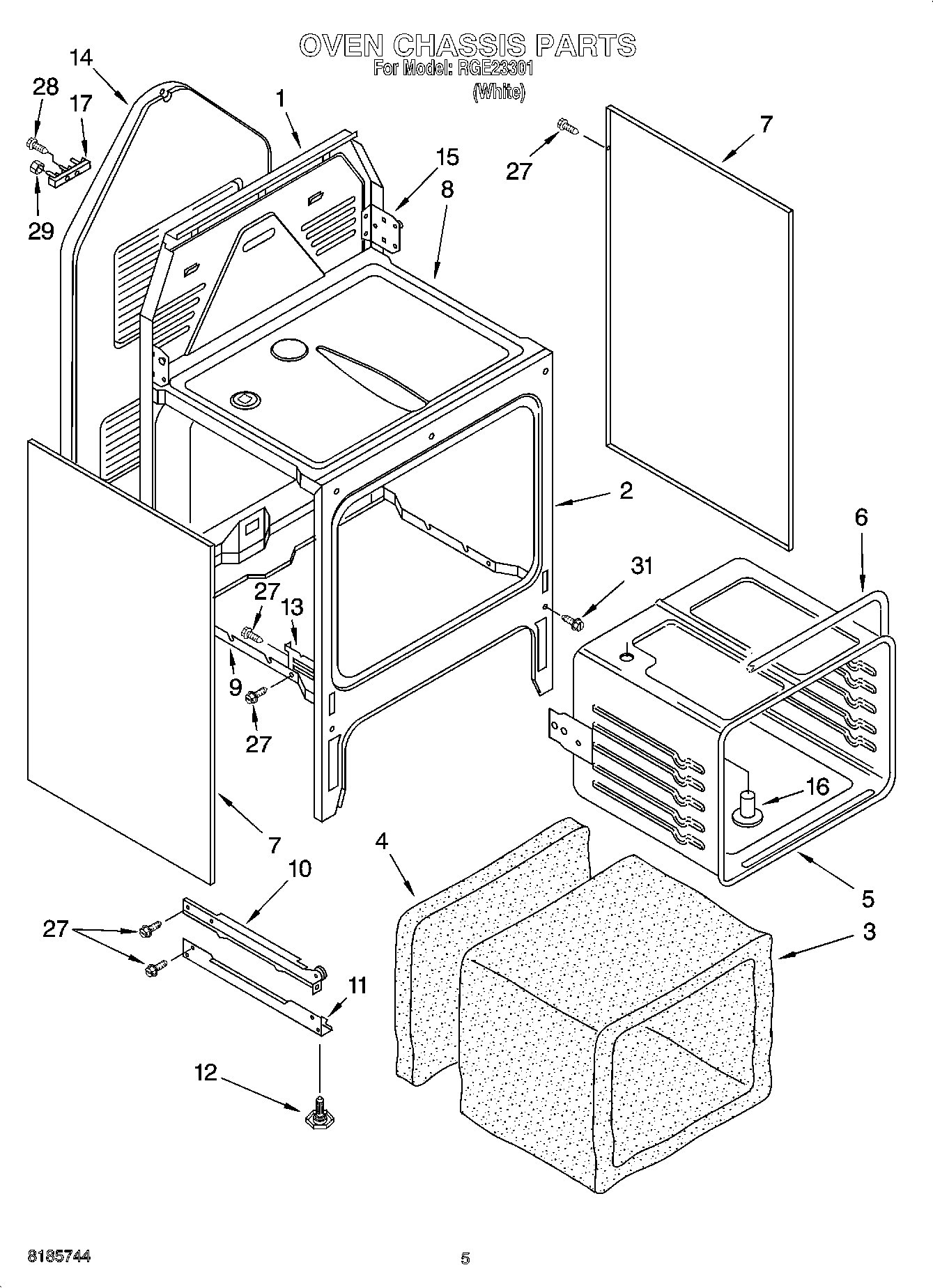

RGE23301 04 – OVEN CHASSIS PARTS

Products

Position	Product
1	Main Chassis, Back
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Back
5	Oven Liner
6	Gasket, Oven
7	Body, Side (White)
8	Box, Burner
9	Bottom, Oven
10	Rail, Drawer (Right)
10	Drawer Rail, Left
11	Bottom Rail (2)
12	WPW10058460 Whirlpool Appliance Levelling Leg
13	Hinge, Base L or R
14	Panel, Rear
15	Hinge, Cktp.-Left
15	Hinge, Cktp.-Right
16	Tube, Vent
17	WP8203546 Whirlpool Terminal Block
27	WP4159387 Whirlpool Compactor Screw
28	Screw, (2) 10-16 x 1
29	WP112432 Whirlpool Nut Assembly
31	Screw, (2)
