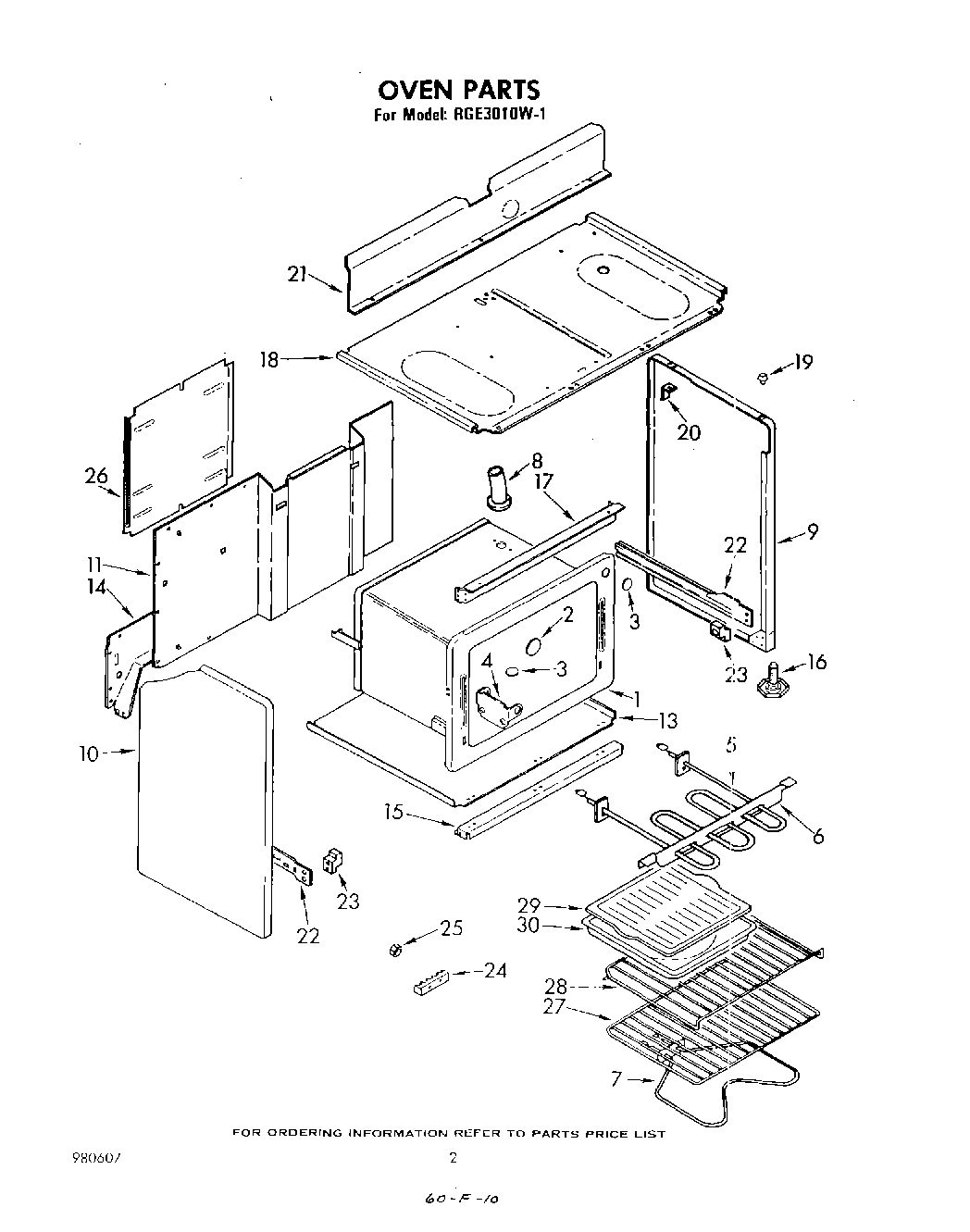

RGE3010W1 02 – SECTION

RGE3010W1 02 – SECTION

Written by

in

RGE3010W1 02 – SECTION

Products

PositionProduct
1Oven (Conventional)
2Cover, Light Hole
3Button, Plug
4Bracket, Thermo Bulb
5Unit, Broil
6Hanger, Broil Unit
7WP865940 Whirlpool Bake Element
7Unit Bake (Screw, 10-24 x 1/2 (2))
8Screw, 10-24 x 3/8 (2)
8Tube, Oven Vent
9End Panel, R.H. (White)
9End Panel, R.H. (New Avocado)
9End Panel, R.H. (Golden Harvest)
9End Panel, R.H. (Almond)
9End Panel, R.H. (Coffee)
10End Panel, L.H. (White)
10End Panel, L.H. (Golden Harvet)
10End Panel, L.H. (Almond)
10End Panel, L.H. (Coffee)
10End Panel, L.H. (New Avocado)
11Back, Range
13Panel, Weldment (Bottom)
14Gusset, Rear (L.H.)
14Gusset, Rear (R.H.)
15Channel, Oven Support
16Leg Leveler (4)
17Bracket, Cooktop
18Burner Box
19Bumper, Cooktop (4)
20Gusset, Backguard (2)
21Shield, Wiring
22rail, drawer (R.H.)
22Rail, Drawer (L.H.)
23Guide, Drawer (Front)
24Washer (Ground) (3)
24WP8203546 Whirlpool Terminal Block
25Hex Nut, 10-32 (6)
26Washer (3)
26Screw, 10-24 x 1/2 (3)
26WPL 834649
26Cover Wiring, Low
27WPL 865983
28Rack, Oven Offset
294396923 Whirlpool Broil Pan Set Gray Porcelain
30Pan, Broiler
