RGE3010W1 03 – SECTION

RGE3010W1 03 – SECTION

Written by

in

RGE3010W1 03 – SECTION

Products

Position	Product
	Golden Harvest (Uncut)
	511873 Whirlpool Refrigerator Paint
	799344 Whirlpool Refrigerator Paint
	Almond (Uncut)
	Enamel, Coffee (1 Qt. Uncut)
	Enamel, New Avocado (1 Qt. Uncut)

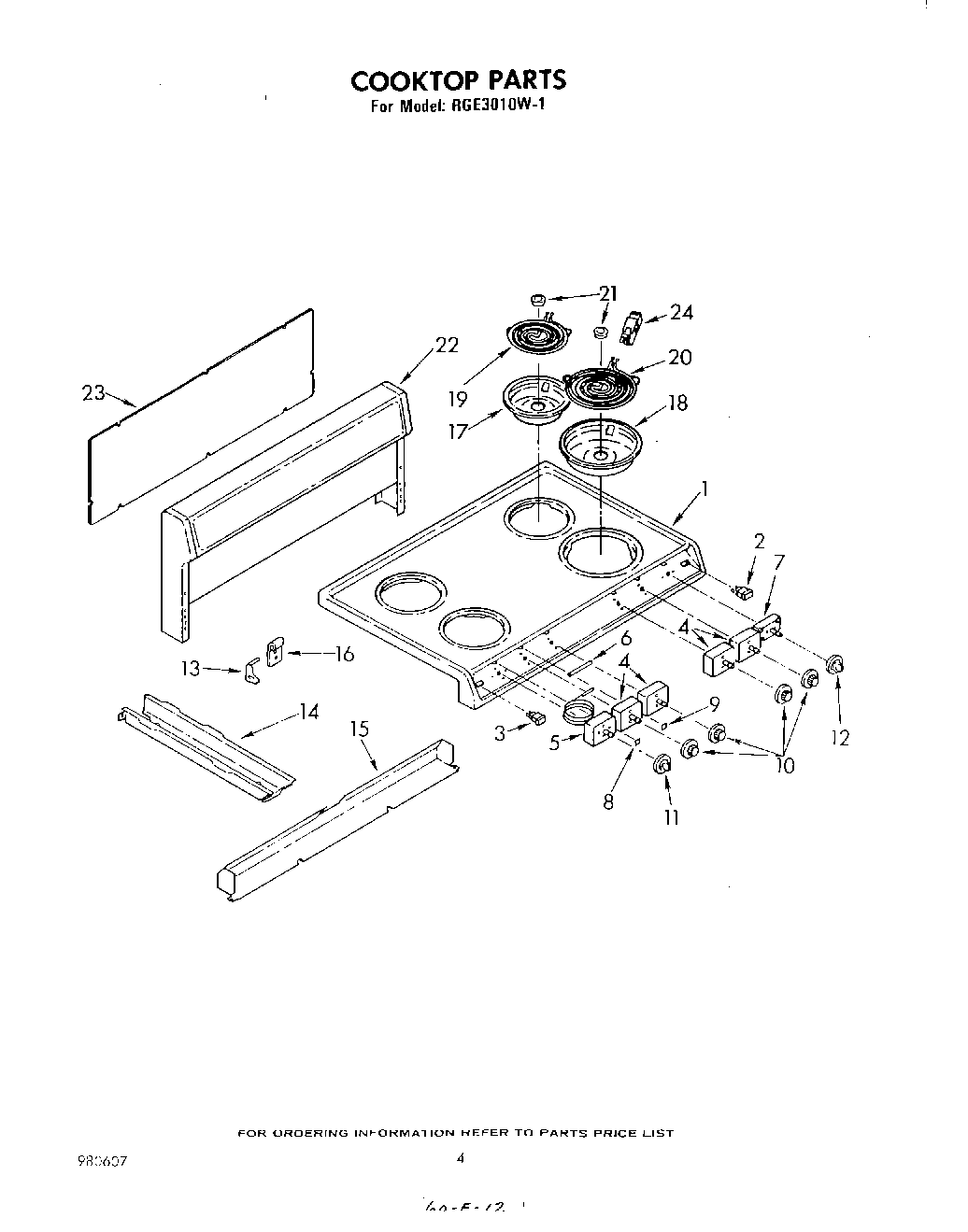

1	Cooktop (Coffee)
1	Cooktop (White)
1	Cooktop (New Avocado)
1	Cooktop (Golden Harvest)
1	Cooktop (Almond)
2	Light, Signal (125V) (Surface Unit)
3	Light, Signal (Oven) (250V)
4	Switch, Infinite (Use W/6“ Surface Unit) (3) (Alternate)
4	WP486579 Whirlpool Air Conditioner Screw
4	Switch, Infinite (Use W/6“ Surface Unit) (3) (Alternate)
4	Switch, Infinite (Use W/6“ Surface Unit) (3) (Alternate)
4	Switch, Infinite (Use W/6“ Surface Unit) (3) (Alternate (Use W/8“ Surface Unit) (1))
5	Thermostat, Oven
6	Sleeving, Insulating
7	WPL 486525
7	Switch, Oven Selector
8	Indicator, Oven Selector (1)
9	Indicator, Surface Unit (4)
10	Knob & Skirt Assembly (Surface Unit) (4)
11	Knob & Skirt Assembly (Thermostat) (1)
12	Knob & Skirt Assembly (Oven Selector) (1)
13	Hinge Pin, Cooktop (L.H.)
13	Hinge Pin, Cooktop (R.H.)
14	Duct, Wire
14	Hinge, Oven Door (Auxiliary) (Screw, 8-32 x 3/8 (2) (Top))
15	WPL 868383
16	Retainer, Hinge Pin (2)
17	WPW10196406 Whirlpool 6" Chrome Drip Bowl
18	DRIP BOWL 8" W/HOLE CHROME
19	WP660532 Whirlpool Oven Surface Element
20	WP660533 Whirlpool Oven 8" Surface Element
21	WPL 868522
22	WPL 868388
22	WPL 868386
22	WPL 868385
22	WPL 868387
22	WPL 868384
23	WPL 868396
23	Screw, 10-24 x 1/2 (3)
24	WPL 980607
24	Wire (14 Ga. 150 c Green)
24	350930 Whirlpool White Spray Paint
24	WPL 868573
24	WPL 865621
24	WPL 308500
24	WP486754 Whirlpool Compactor Screw
24	285006 Whirlpool Spray
24	Wire, 25“ Roll (White 14 GA.)
24	Wire, 25` Roll (Red 14 Ga.)
24	Wire, 25` Roll (Black 14 Ga.)
24	FOIL, ALUMINUM OVEN (18“ X 25 )
24	WPW10208653 Whirlpool Insulation
24	WPL 799832
24	350942 Whirlpool Spray Paint
24	BURNER RECEPTACLE KIT
24	Golden Harvest
24	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
24	WP72107 Whirlpool Touchup
24	72017 Whirlpool Appliance Touch-Up Paint White
24	72109 Whirlpool Dacor Avocado Touch-Up Paint
24	Paint, Touch-Up 1/2 Oz. (Coffee)
24	paint, spray 13 oz. (coffee)
24	WPL 799351
24	Grease
24	Leveler (Thinner) (2oz.)
24	1
24	Wire (14 Ga. 200 c Brown)
24	18 Ga. 80~c Rating (Red)
24	Wire (12 Ga. 150 c Black)
24	Wire (14 Ga. 150 c Yellow)
24	Wire (14 Ga. 150 c Orange)
24	Wire (14 Ga. 150 c Brown)
24	Wire (14 Ga. 150 c Blue)
24	242831 Whirlpool Oven Wire
24	Touch-Up Oven (1 Oz.)
24	Paint, Spray 13 Oz. (Avocado)
24	350956 Whirlpool Spray Assembly
