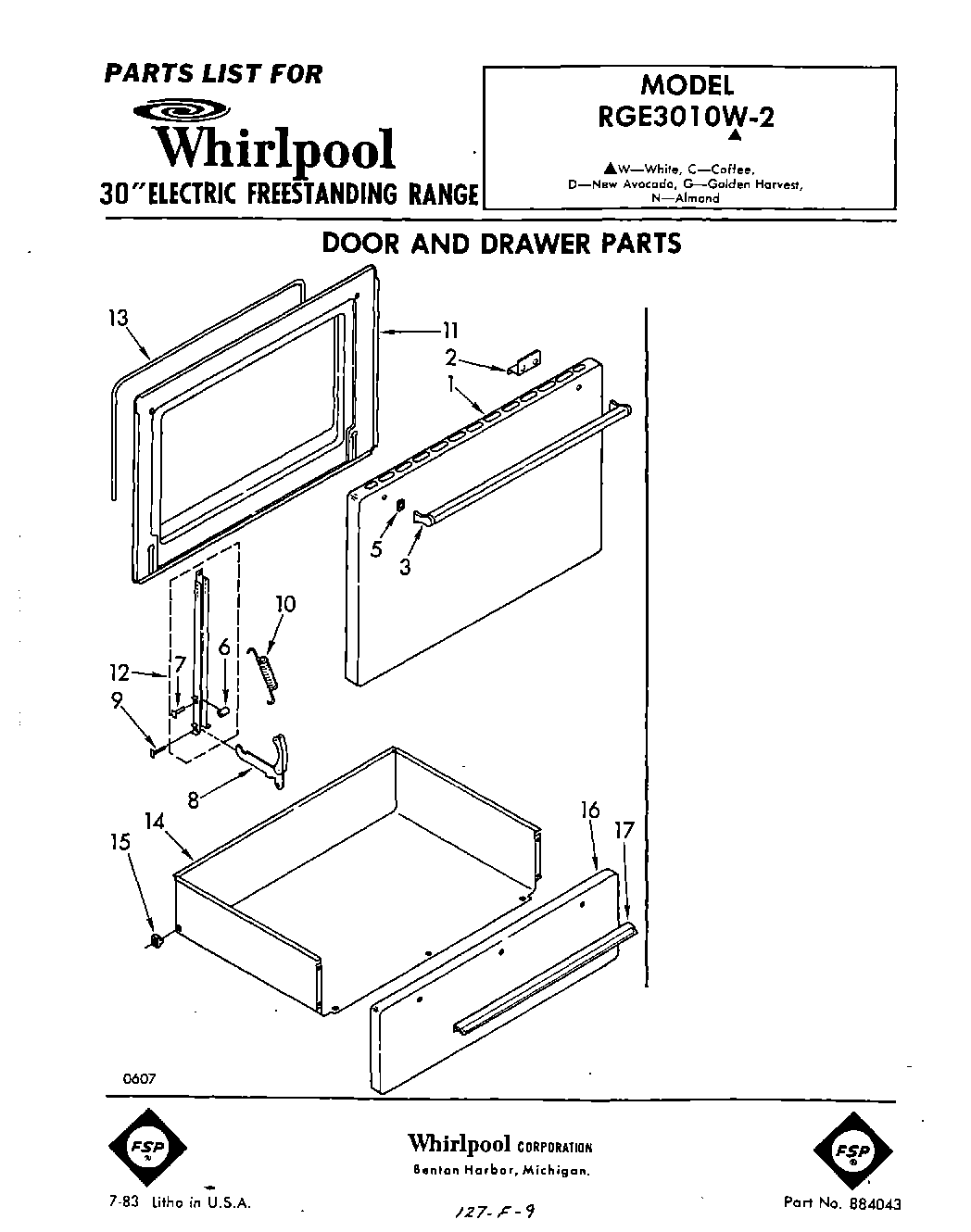

RGE3010W2 01 – SECTION

Products

Position	Product
1	Panel, Oven Door (White)
1	Panel, Oven Door (Almond)
1	Panel, Oven Door (New Avocado)
1	Panel, Oven Door (Golden Harvest)
1	Panel, Oven Door (Coffee)
2	Spacer, Oven Door
3	Door Handle Assembly
5	Screw, 10-24 x 5/8 (2)
5	Spacer, Handle (2)
6	Roller, Stop (2)
7	Rivet (2)
8	Arm Assembly (2)
9	Pin, Hinge (2)
10	Spring, Door (2)
11	Liner, Door
12	Screw
12	Washer (2)
12	Channel Assembly
12	WPL 595119
13	Gasket, Door (Alternate)
13	Gasket, Door (Alternate)
14	Drawer Assembly
15	Guide, Drawer
16	Panel, Drawer (Coffee)
16	Panel, Drawer (White)
16	Panel, Drawer (Golden Harvest)
16	Nut, 10-24 (2)
16	Screw, 10-24 x 3/8
16	Panel, Drawer (Almond)
16	Panel, Drawer (New Avocado)
17	Screw, 10-24 x 3/8
17	Screw, 10-24 x 1/2 (3)
17	Handle, Drawer
