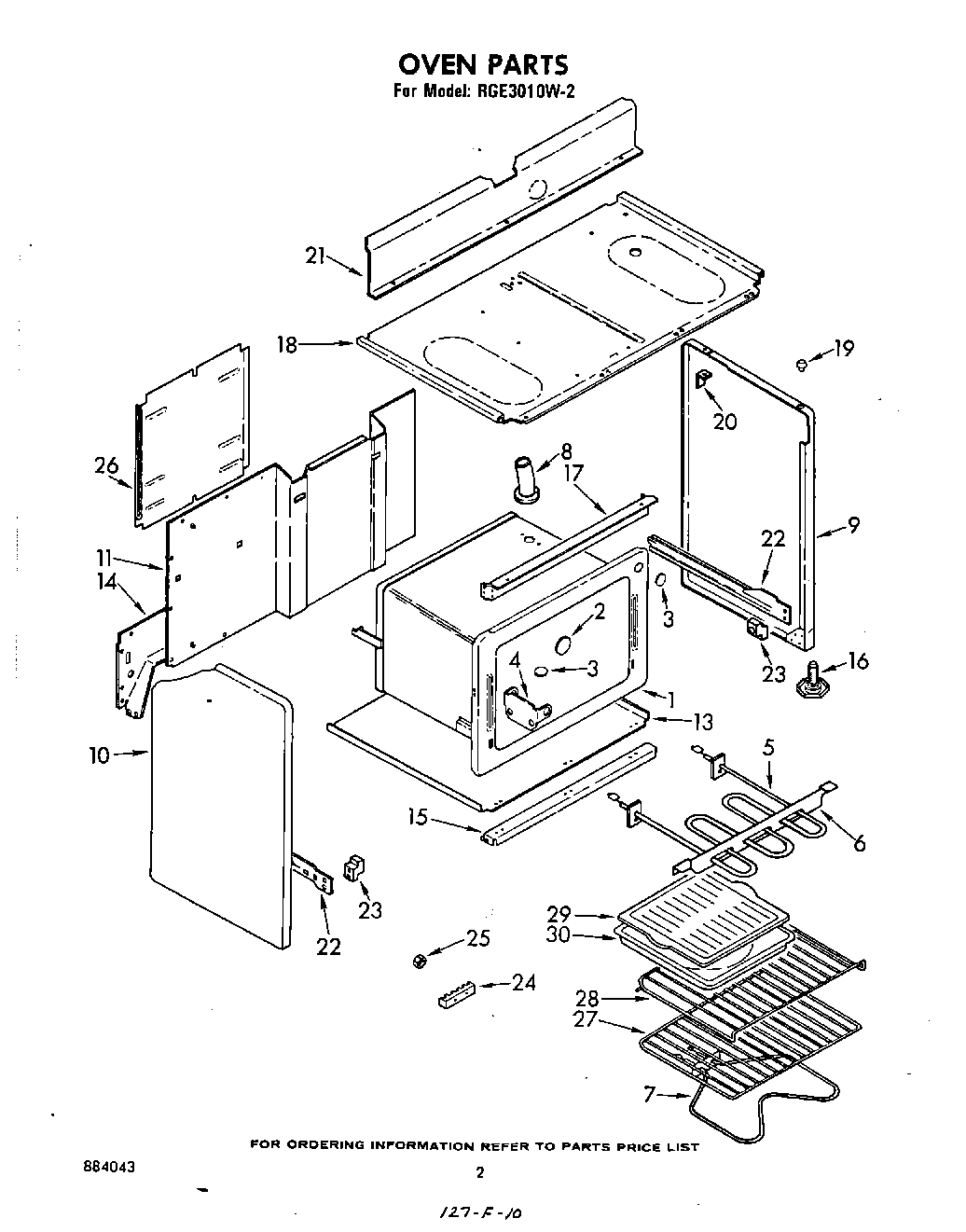

RGE3010W2 02 – SECTION

Products

Position	Product
1	Oven (Conventional)
2	Cover, Light Hole
3	Button, Plug
4	Bracket, Thermo Bulb
5	Unit, Broil
6	Hanger, Broil Unit
7	WP865940 Whirlpool Bake Element
7	Unit Bake (Screw, 10-24 x 1/2 (2))
8	Tube, Oven Vent
8	Screw, 10-24 x 3/8 (2)
9	End Panel, R.H. (Golden Harvest)
9	End Panel, R.H. (Almond)
9	End Panel, R.H. (White)
9	End Panel, R.H. (New Avocado)
9	End Panel, R.H. (Coffee)
10	End Panel, L.H. (Coffee)
10	End Panel, L.H. (Golden Harvest)
10	End Panel, L.H. (New Avocado)
10	End Panel, L.H. (Almond)
10	End Panel, L.H. (White)
11	Back, Range
13	Panel, Weldment (Bottom)
14	Gusset, Rear (R.H.)
14	Gusset, Rear (L.H.)
15	Channel, Oven Support
16	Leg Leveler (4)
17	Bracket, Cooktop
18	Washer (2)
18	Burner Box
19	Bumper, Cooktop (4)
20	Gusset, Backguard (2)
21	Shield, Wiring
22	Rail, Drawer (Right Side)
22	Rail, Drawer (Left Side)
23	Guide, Drawer (Front)
24	Washer (Ground) (3)
24	WP8203546 Whirlpool Terminal Block
25	Hex Nut, 10-32 (6)
26	Screw, 10-24 x 1/2 (3)
26	Cover Wiring, Low
26	Washer (3)
26	WPL 834649
27	WPL 865983
28	Rack, Oven Offset
29	4396923 Whirlpool Broil Pan Set Gray Porcelain
30	Pan, Broiler
