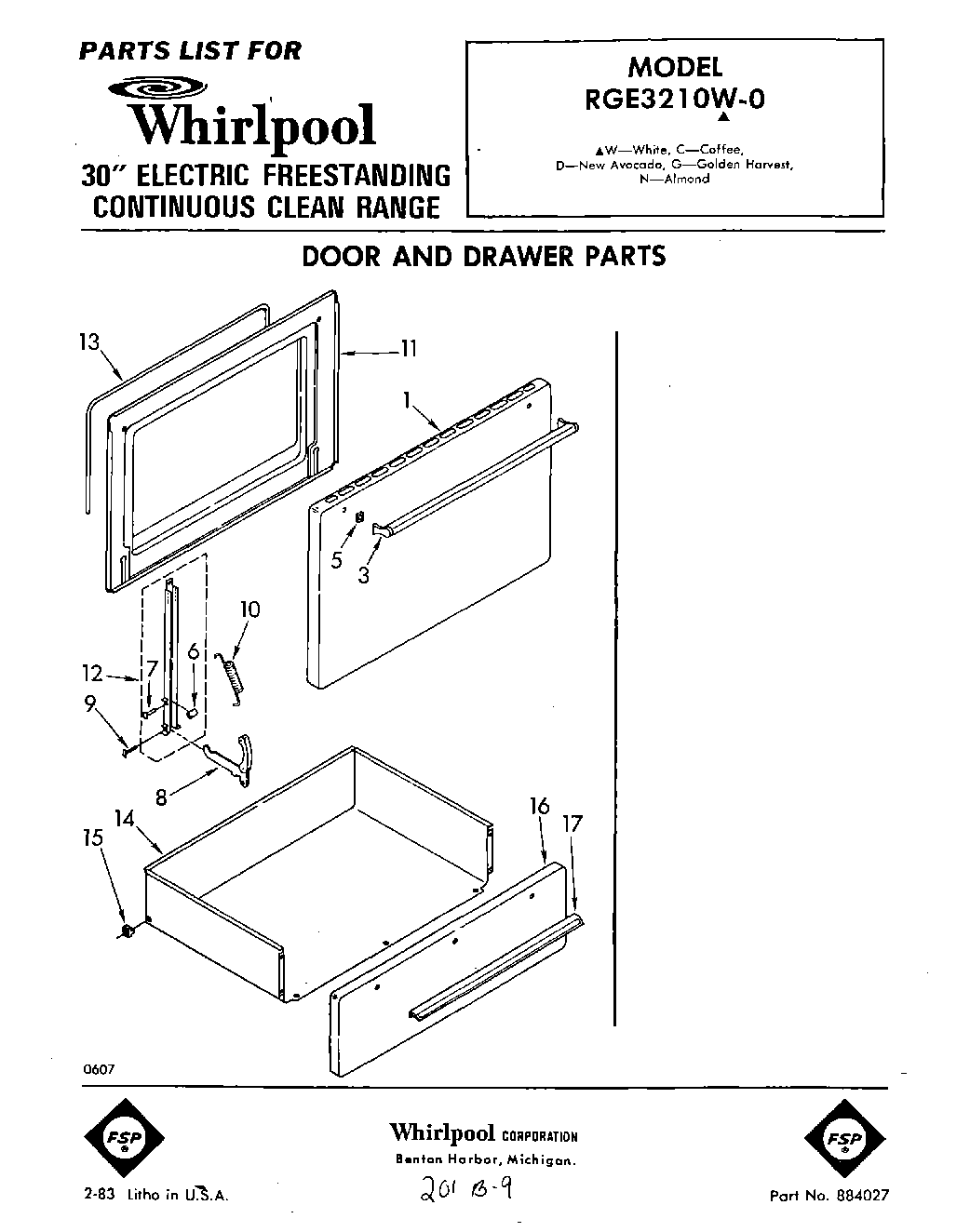

RGE3210W0 01 – SECTION

Products

Position	Product
1	Panel, Oven Door (White)
1	Panel, Oven Door (Almond)
1	Panel, Oven Door (New Avocado)
1	Panel, Oven Door (Golden Harvest)
1	Panel, Oven Door (Coffee)
3	Door Handle Assembly
5	Screw, 10-24 x 5/8 (2)
5	Spacer, Handle (2)
6	Roller, Stop (2)
7	Rivet (2)
8	Arm Assembly (2)
9	Pin, Hinge (2)
10	Spring, Door (2)
11	Liner, Door
12	Screw
12	WPL 595119
12	Washer (2)
12	Channel Assembly
13	Gasket, Door (Alternate)
13	Gasket, Door (Alternate)
14	Drawer Assembly
15	Guide, Drawer (Back)
16	Panel, Drawer (White)
16	Panel, Drawer (Golden Harvest)
16	Panel, Drawer (Almond)
16	Panel, Drawer (New Avocado)
16	Nut, 10-24 (2)
16	Screw, 10-24 x 3/8
16	Panel, Drawer (Coffee)
17	Handle, Drawer
17	Screw, 10-24 x 3/8
17	Screw, 10-24 x 1/2 (3)
