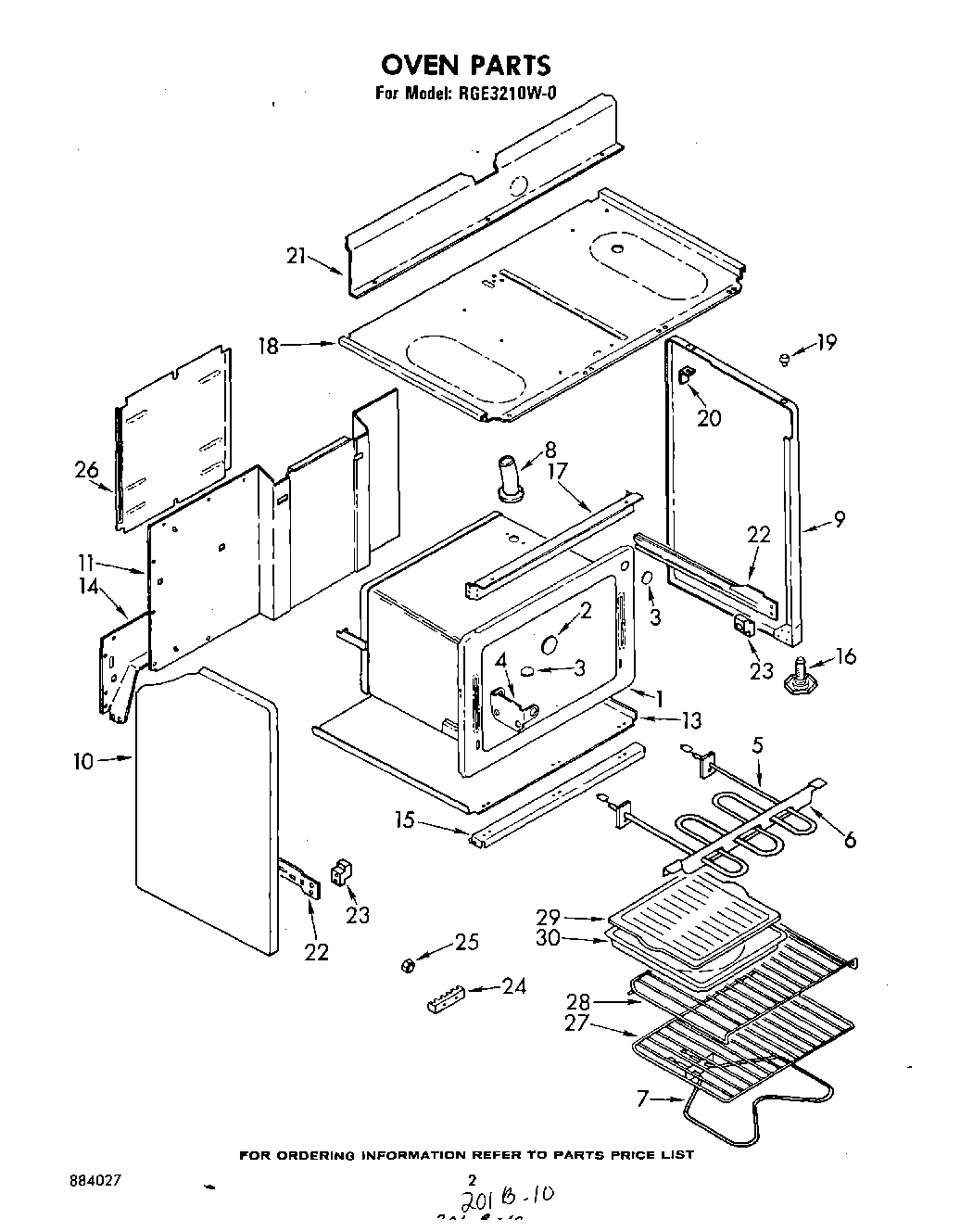

RGE3210W0 02 – SECTION

Products

Position	Product
1	Oven (Continuous Clean)
2	Cover, Light Hole
3	Button, Plug
4	Bracket, Thermo Bulb
5	Unit, Broil
6	Hanger, Broil Unit
7	Unit Bake (Screw, 10-24 x 1/2 (2))
7	WP865940 Whirlpool Bake Element
8	Screw, 10-24 x 3/8 (2)
8	Tube, Oven Vent
9	End Panel, R.H. (New Avocado)
9	End Panel, R.H. (Golden Harvest)
9	End Panel, R.H. (Coffee)
9	End Panel, R.H. (White)
9	End Panel, R.H. (Almond)
10	End Panel, L.H. (Almond)
10	End Panel, L.H. (Coffee)
10	End Panel, L.H. (New Avocado)
10	End Panel, L.H. (Golden Harvest)
10	End Panel, L.H. (White)
11	Back, Range
13	Panel, Weldment (Bottom)
14	Gusset, Rear (L.H.)
14	Gusset, Rear (R.H.)
15	Channel, Oven Support
16	Leg Leveler (4)
17	Bracket, Cooktop
18	Washer (2)
18	Panel, Sub Top
19	Bumper, Cooktop (4)
20	Gusset, Backguard (2)
21	Shield, Wiring
22	Rail, Drawer (R.H.)
22	Rail, Drawer (Left Side)
23	Guide, Drawer (Front)
24	Washer (Ground) (3)
24	WP8203546 Whirlpool Terminal Block
25	Hex Nut, 10-32 (6)
26	Cover Wiring, Low
26	WPL 834649
26	Screw, 10-24 x 1/2 (3)
26	Washer (3)
27	WPL 865983
28	Rack, Oven Offset
29	4396923 Whirlpool Broil Pan Set Gray Porcelain
30	Pan, Broiler
