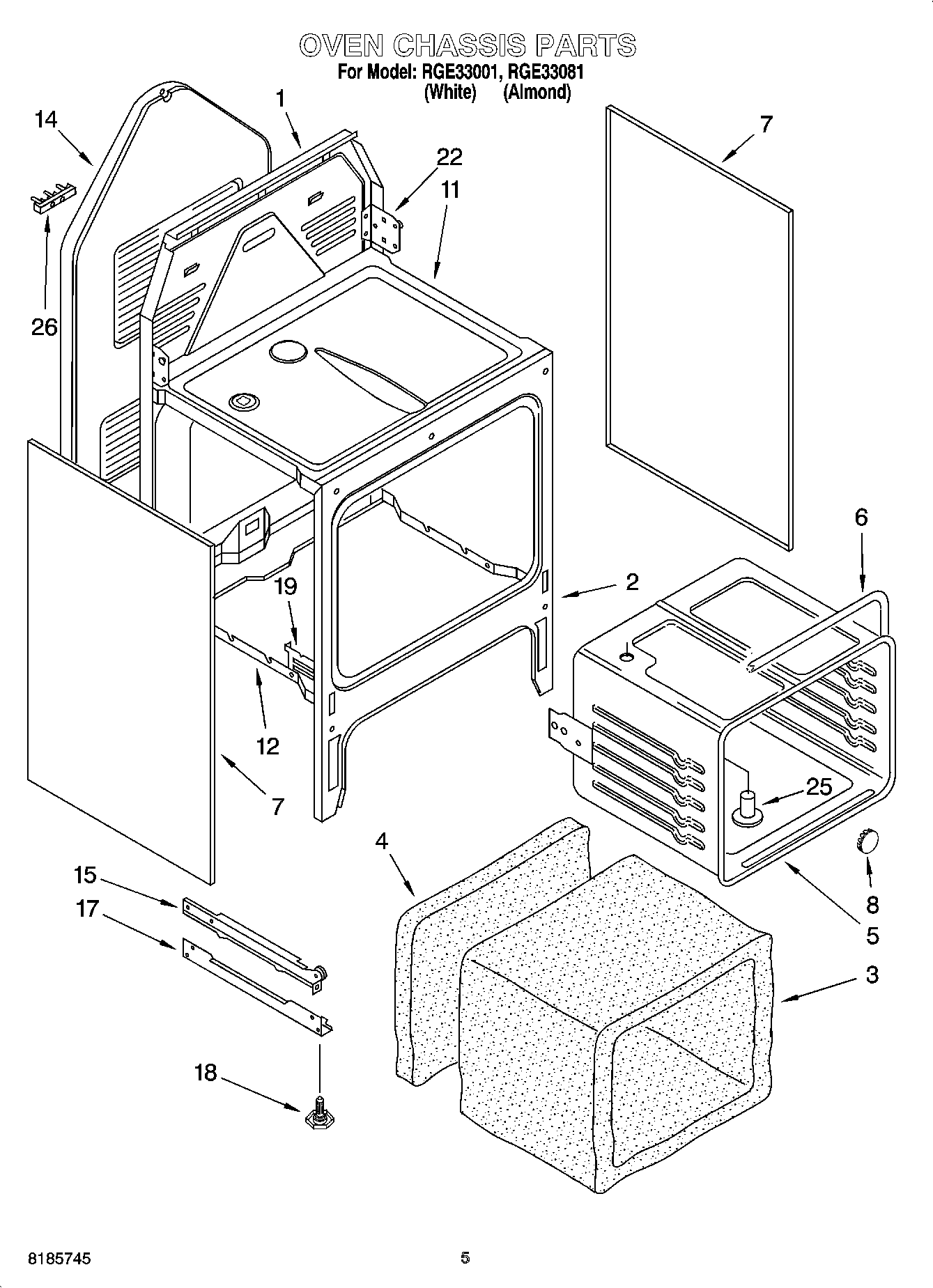

RGE33001 04 – OVEN CHASSIS PARTS

Products

Position	Product
1	Main Chassis, Back
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket, Oven
7	Oven, Side L or R (Almond)
7	Body, Side (White)
8	Button, Plug
11	Burner Box
11	Screw, (2)
11	Washer (3)
12	Oven Bottom
14	Panel, Rear
15	Rail, Drawer (Right)
15	Drawer Rail, Left
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Hinge, Base L or R
19	Screw (4) 10 x 1/2
22	Hinge, Cktp.-Left
22	Hinge, Cktp.-Right
22	WP4159387 Whirlpool Compactor Screw
25	Vent Tube
26	WP8203546 Whirlpool Terminal Block
26	Screw, (2) 10-16 x 1
26	WP112432 Whirlpool Nut Assembly
