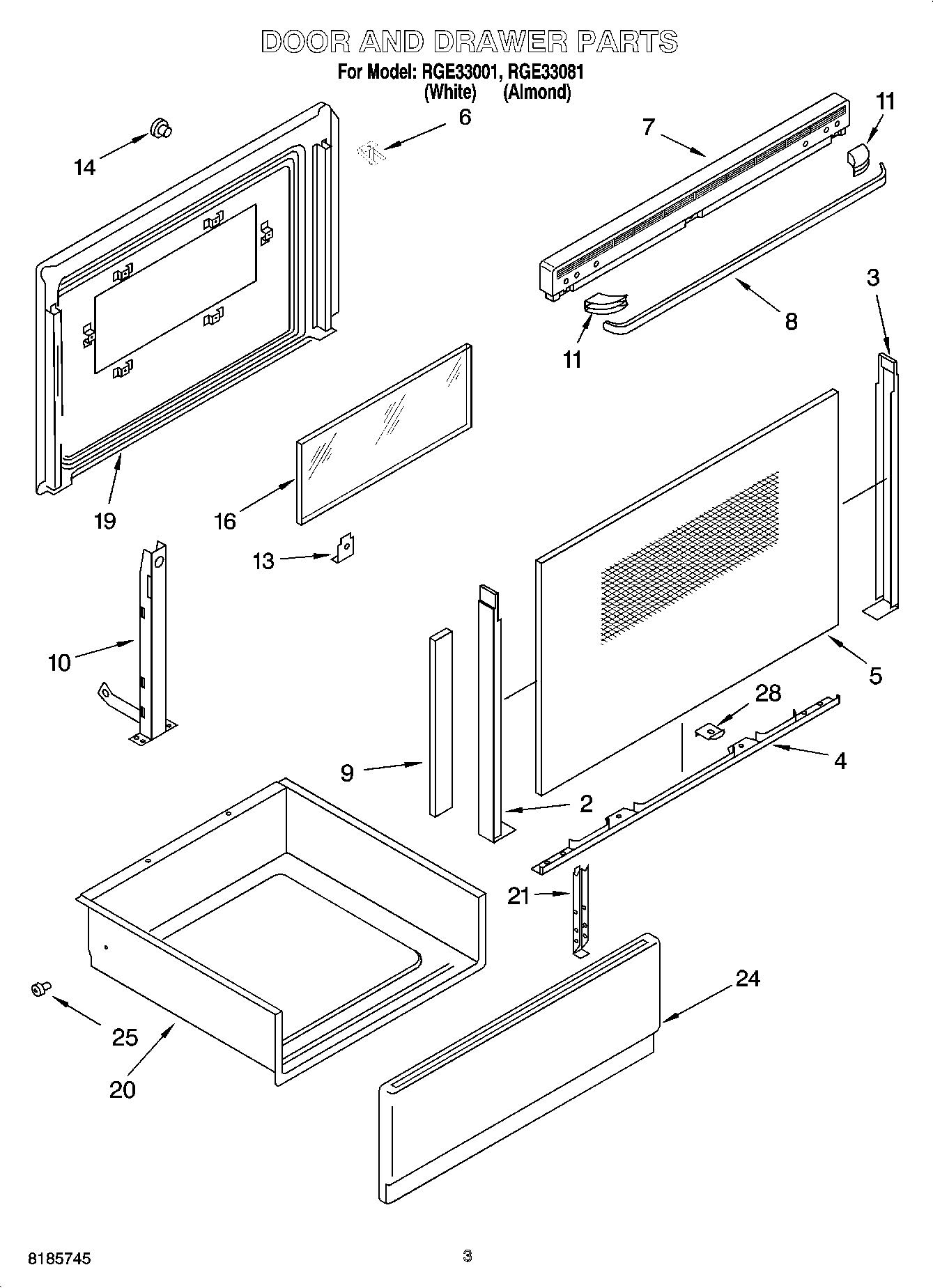

RGE33081 03 – DOOR AND DRAWER PARTS

Products

Position	Product
2	Trim, Door-Left (Black)
3	Trim, Door-Right (Black)
4	Trim, Door-Bottom
5	Glass, Door Front
6	Retainer, Glass
7	Vent, Door (Gasket, Vent)
7	Vent, Door (Black)
8	Handle, Door
8	Screw (2) 10 x 1 1/4
9	Gasket, Door Glass
10	Hinge, Door R or L
11	screw (2) 10-24 x 5/8
11	End Cap, Handle (R or L)
13	Screw
13	Retainer, Glass (4)
14	238614 Whirlpool Bumper Hinge
16	Inner Glass, Clear
19	Liner, Door
20	Drawer & Roller
21	Bracket, Drawer
21	WP90296 Whirlpool Clip
21	WP4159387 Whirlpool Compactor Screw
24	Front, Drawer (White)
24	Front, Drawer (Almond)
25	814229 Whirlpool Primary Roller
28	Spacer, Door (8)
