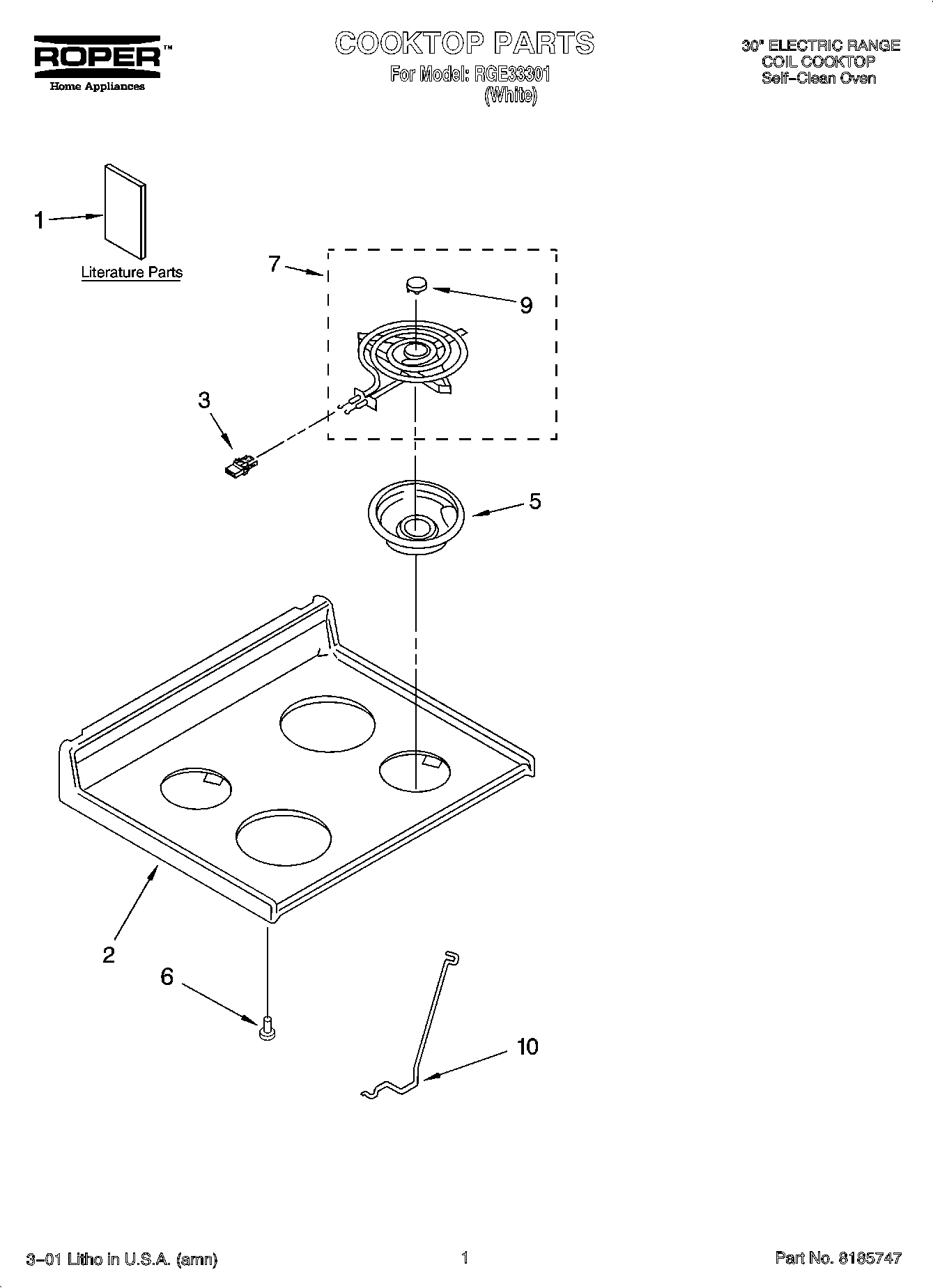

RGE33301 01 – COOKTOP PARTS

Products

Position	Product
1	WPL LIT9752767
1	Literature Parts (Installation Instructions)
1	Literature Parts (Use & Care Guide)
2	Cooktop, Coil
3	WP313808 Whirlpool Screw
3	Receptacle, Clip
5	WPW10290350 Whirlpool Stove Drip Bowl
5	WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
6	238614 Whirlpool Bumper Hinge
7	Element, Surface (Coil, 8“ LF-RR)
7	Element, Surface (Coil, 6“ RF)
9	Medallion, (4)
10	Cooktop Rod
