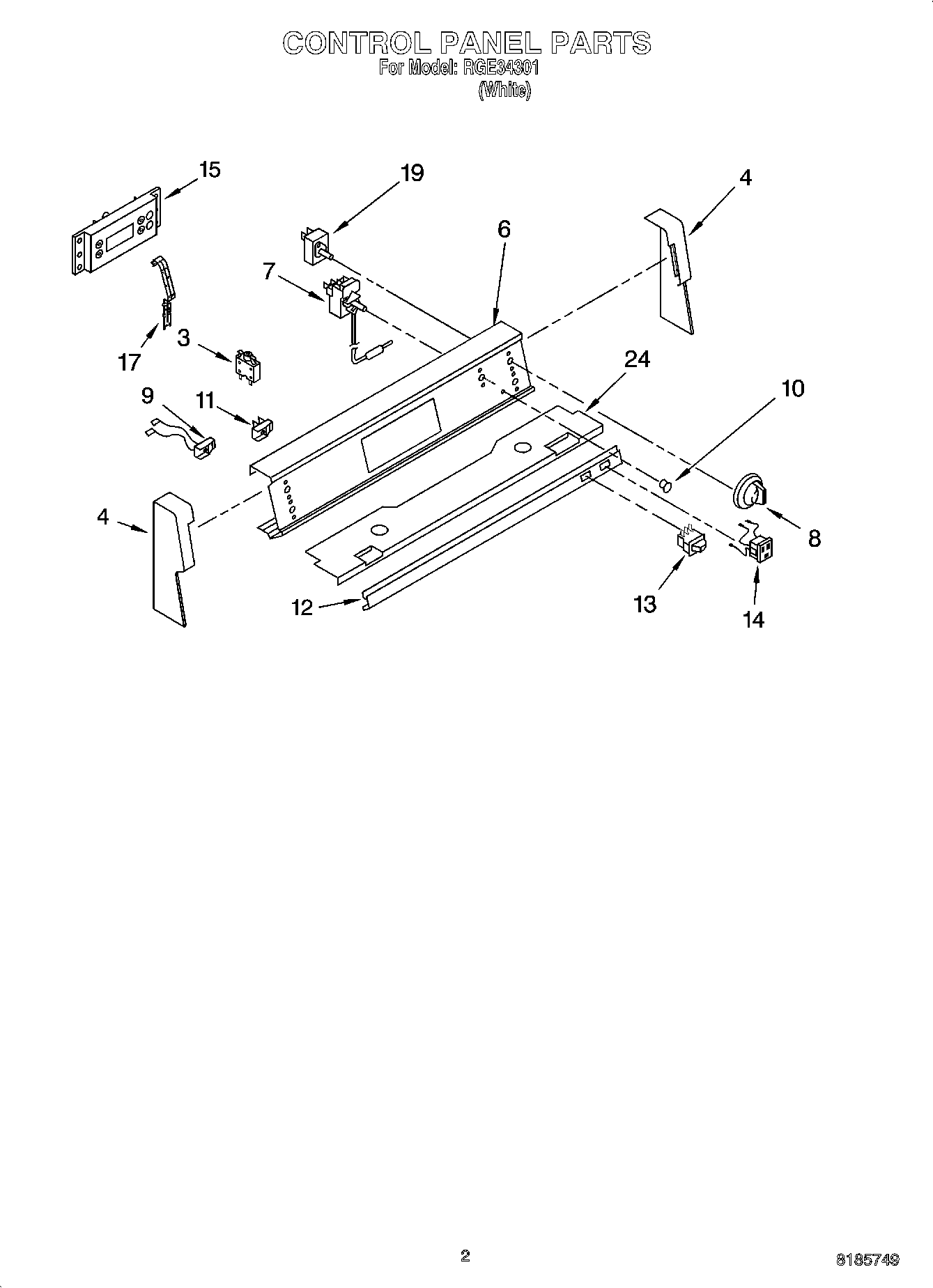

RGE34301 02 – CONTROL PANEL PARTSadmin2025-04-26T12:35:58+00:00RGE34301 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 3 | Breaker, 15 Amp |
| 4 | End Cap (Right) |
| 4 | End Cap (Left) |
| 6 | Panel, Control |
| 6 | Panel, Control (Screw, (2) 8 x 3/8) |
| 7 | Thermostat |
| 7 | Screw (2) |
| 8 | Knobs, Control (5) |
| 9 | Light, Indicator (Oven - Thermostat) |
| 10 | WP9750343 Whirlpool Light Lens |
| 11 | Light, Indicator (Surface Unit (2)) |
| 12 | Trim Strip |
| 13 | Switch, Oven Light |
| 14 | Outlet, Untimed |
| 15 | Timer |
| 15 | Screw (4) 10 x 1/2 |
| 17 | Bracket, Timer |
| 19 | WP3400882 Whirlpool Screw |
| 19 | WP9750638 Whirlpool Infinite Switch |
| 19 | WP9750641 Whirlpool Infinite Switch |
| 24 | WP3400832 Whirlpool Screw |
| 24 | Base, Console |
| 24 | WP4159387 Whirlpool Compactor Screw |
