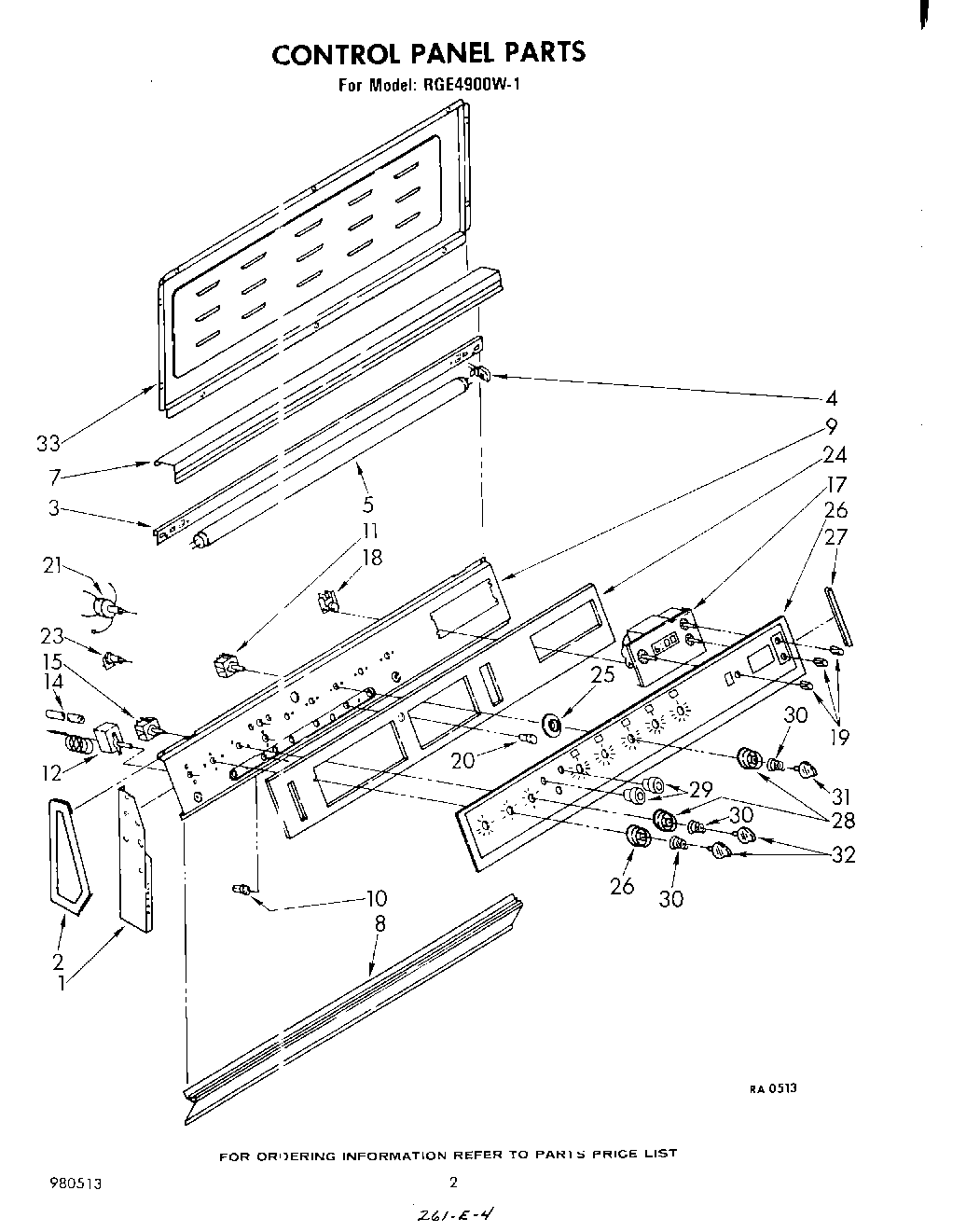

RGE4900W1 02 – CONTROL PANEL

Written by

Products

Position	Product
1	Support, Backguard (L.H.)
1	Support, Backguard (R.H.)
2	End Cap (R.H.)
2	End Cap (L.H.)
2	Nut, Timer (4)
3	Channel, Light Mounting
4	Lampholder (L.H.)
4	Lampholder (R.H.)
5	Light, Fluorescent 33“
7	Shade, Lamp
8	Base, Backguard
9	Bracket, Control
10	Light, Indicator (3) Surface Unit, Griddle, Clean (Alternate Light Indicator (3) Main Oven, Auxiliar
10	Light, Indicator (3) Surface Unit, Griddle, Clean (Alternate)
10	Light, Pilot (3) (Clean, Lock & Surface Unit)
10	Light, Pilot (Oven)
11	W10900107 Whirlpool Oven Surface Element Switch
11	(switch infinite 8“ (2)) (alternate)
11	switch, infinite 6“ & griddle (3) (alternate)
11	switch, infinite 6“ & griddle (3) (alternate)
12	thermostat, oven (auxiliary)
12	WPL 868808
12	WPL 487428
14	Sleeving Insulation
15	WPL 486525
15	WPL 866291
15	WPL 868292
17	Hex Nut, 10-32 (6)
17	WPL 868291
18	Motor, Timer
19	Knob, Timer (3)
20	WPL 834956
21	Switch, Fluorescent Light
23	WPL 866138
23	WPL 98754
24	WPL 868293
25	Dial, Surface Unit (4)
26	WPL 868874
27	Trim, Glass (2)
28	WPL 868296
29	WPL 866053
30	WPL 868297
31	WPL 868298
32	WPL 868299
33	Screw, 10-24 x 1/2 (3)
33	WPL 866233
