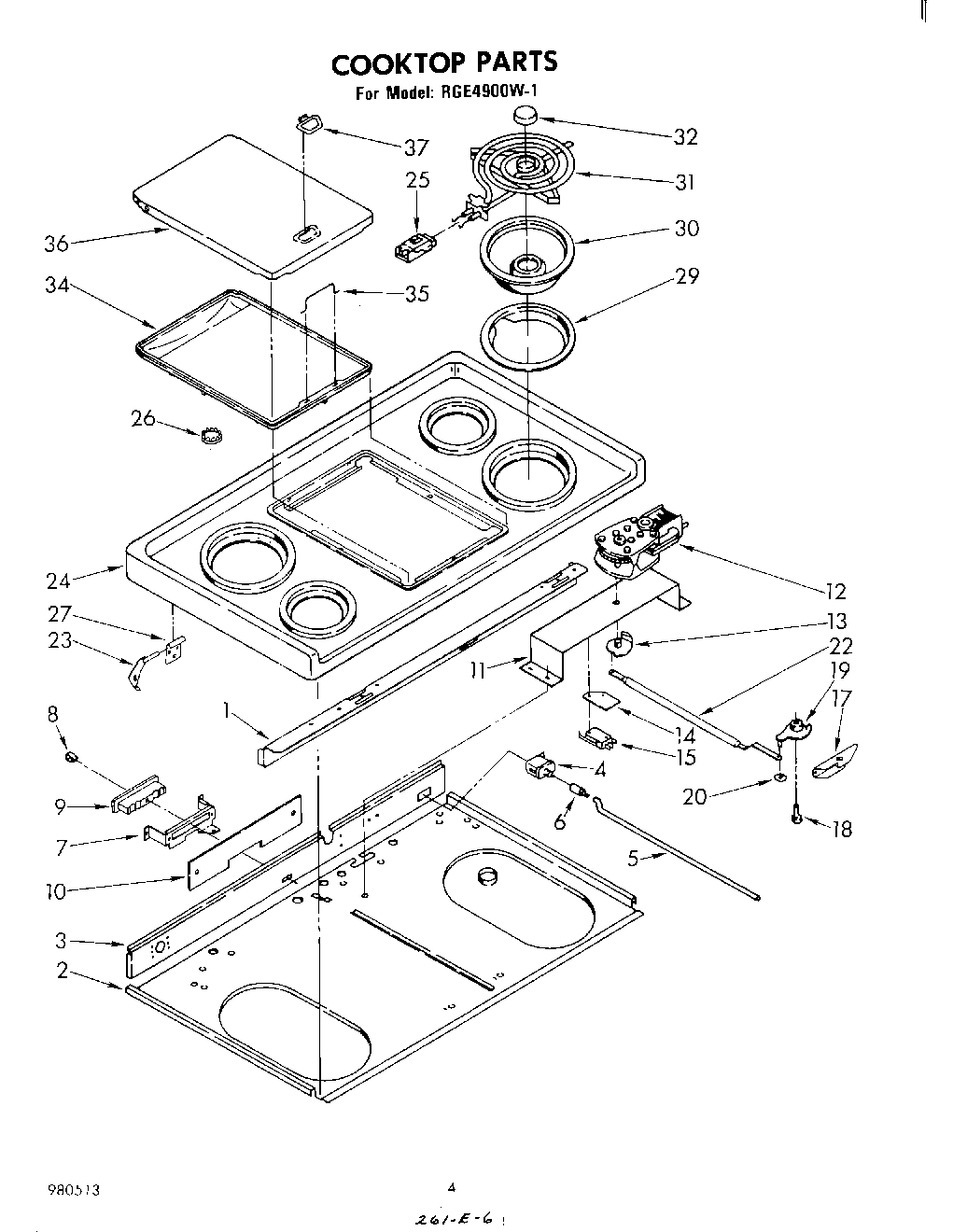

RGE4900W1 03 – COOKTOP

Written by

Products

Position	Product
1	Bracket, Cooktop
2	Panel, Sub Top
3	Shield, Wiring
4	WP8283288 Whirlpool Door Switch
5	Push Rod, Switch
6	Rod End, Switch
7	WPL 834649
7	Bracket, Receptacle
7	Washer, Fiber (2)
8	Terminal, Female (3)
9	Receptacle, Female
10	Insulator, Wire Shield
11	Support Latch Motor
12	WPL 273225
12	Motor (Alternate)
12	Motor (Alternate)
12	motor, door latch (alternate)
13	Cam, Door Latch (Pin, Spring)
13	Cam, Door Latch (Alternate)
13	cam, door latch (alternate)
14	Insulator, Limit Switch (3)
15	Switch, Upper Limit (Alternate)
15	Switch, Upper Limit (Alternate)
15	Switch, Upper Limit (Alternate)
15	Switch, Upper Limit (Screw, 4-40 x 1-1/4 (2))
15	Switch, Lower Limit (2) (Alternate)
15	Switch, Lower Limit (2) (Alternate)
15	Switch, Lower Limit (2) (Alternate)
17	Washer (2)
17	Screw 10-24 x 1/2
17	Housing, Latch
18	Axle, Latch
19	Latch, Door
20	Pushnut, 1/4
22	WPL 868323
22	Cam, Door Latch (Pushnut, 3/16“)
23	Bracket, Hinge Pin ((RH))
23	Bracket, Hinge Pin ((LH))
24	WPL 868283
24	WPL 868285
24	WPL 868284
24	WPL 868282
24	WPL 868286
25	BURNER RECEPTACLE KIT
25	WP486754 Whirlpool Compactor Screw
26	WPL 241283
27	Screw, 10-24 x 1/2 (3)
27	Retainer, Hinge Pin (2)
29	Ring, Trim (6“ (2))
29	Ring, Trim (8“ (2))
30	WPL 868490
30	WPL 868491
31	WP660532 Whirlpool Oven Surface Element
31	WP660533 Whirlpool Oven 8" Surface Element
32	WPL 868522
34	Griddle
35	Lifter, Griddle
36	WPL 868331
36	WPL 244085
36	WPL 868333
36	WPL 868330
36	WPL 868332
37	Handle, Griddle Cover
