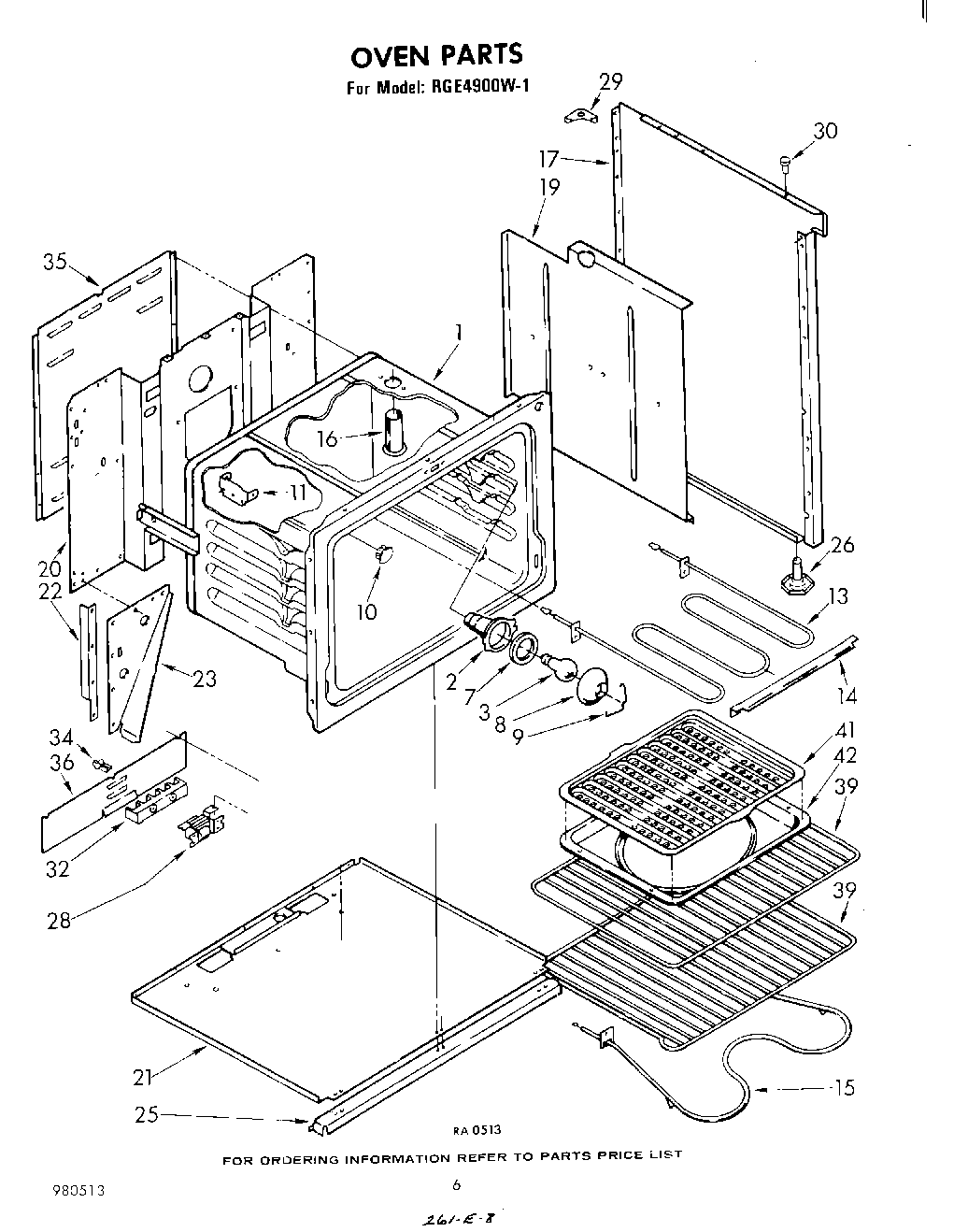

RGE4900W1 04 – OVEN

Products

Position	Product
1	oven
2	Socket, Light
2	Washer (2)
3	RANGE ONLY 40W 120V APPL BULB
7	Gasket, Light
8	Cover, Light
9	retainer, oven light
10	Plug, Button
10	Button, Plug
11	Bracket, Thermo Bulb
13	Unit, Broil
14	Hanger, Broil Unit
15	Unit Bake (Screw, 10-24 x 1/2 (2))
15	WP865940 Whirlpool Bake Element
16	vent tube (alternate)
16	vent tube (alternate)
16	Screw, 10-24 x 3/8 (2)
16	WP965173 Whirlpool Dishwasher Screw
17	Panel, End R.H. (Coffee Panel, End L.H.)
17	Panel, End R.H. (White)
17	Panel, End R.H. (New Avocado)
17	panel, end R.H. (harvest gold)
17	Panel, End R.H. (New Avocado)
17	panel, end R.H. (white)
17	Panel, End R.H. (Coffee)
17	Panel, End R.H. (Almond)
17	Panel, End R.H. (Harvest Gold)
17	End Panel, Almond (R.H.)
19	retainer, insulation (L.H.)
19	Retainer, Insulation (R.H.)
20	Back, Range
21	Panel, Bottom
22	Support, Gusset
23	Gusset, Rear (L.H.)
23	Gusset, Rear (R.H.)
25	Channel, Support
26	Leg Leveler (4)
28	Ballast (Alternate)
28	Ballast (Alternate)
28	balla
28	WPL 868959
29	Gusset, Backguard (2)
30	WPL 834667
32	Hex Nut, 10-32 (6)
32	WPL 834649
32	WP8203546 Whirlpool Terminal Block
34	WPL 877584
34	WPL 834760
35	Screw, 10-24 x 1/2 (3)
35	Cover Wiring, Low
36	WPL 251459
39	WPL 865983
39	Rack, Oven Offset
41	4396923 Whirlpool Broil Pan Set Gray Porcelain
42	Pan, Broiler
