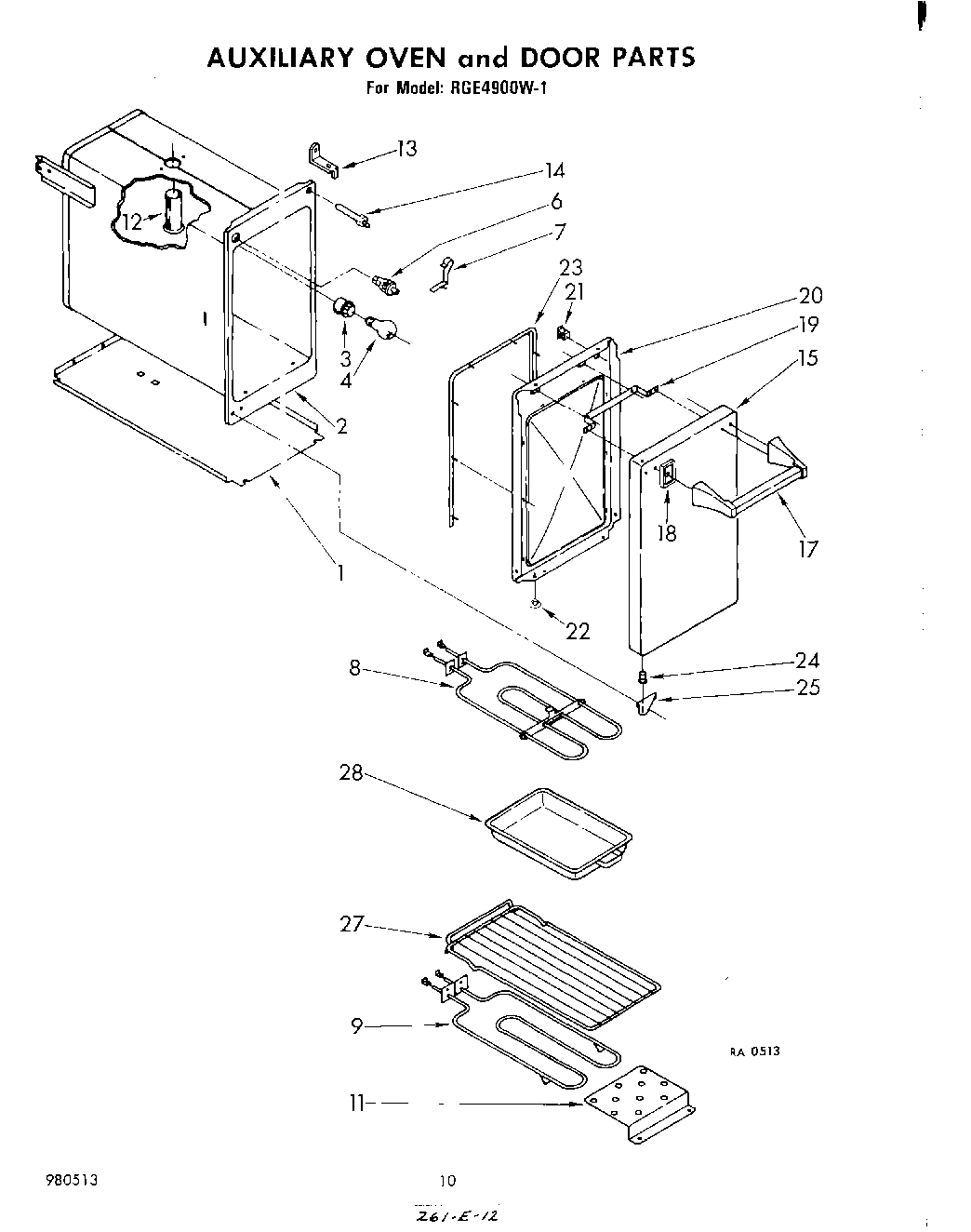

RGE4900W1 06 – AUXILIARY OVEN AND DOOR , LITERATURE

Products

PositionProduct
511873 Whirlpool Refrigerator Paint
Enamel, Coffee (1 Qt. Uncut)
Golden Harvest (Uncut)
Almond (Uncut)
799344 Whirlpool Refrigerator Paint
Enamel, New Avocado (1 Qt. Uncut)
1Panel, Bottom
2oven, auxiliary
2Screw, 10-24 x 1/2 (3)
3Socket, Light
4WPL 834649
4RANGE ONLY 40W 120V APPL BULB
6Switch, Oven Light
798005642 Whirlpool Clip
8unit, broil (alternate)
8Element, Broil
9Element, Bake
9unit, bake (alternate)
11Shield, Bake Unit
12Vent Tube
12Screw, 10-24 x 3/8 (2)
13Unit Bake (Screw, 10-24 x 1/2 (2))
13Bracket, Strike
14strike, door
14W10080180 Whirlpool Nut
15Panel, Oven Door (Auxiliary) (Coffee)
15panel, oven door (auxiliary) (white)
15panel, oven door (auxiliary) (almond)
15Panel, Oven Door (Auxiliary) (New Avocado)
15Panel, Oven Door (Auxiliary) (Harvest Gold)
17handle, door
18Screw, 10-24 x 5/8 (2)
18Spacer, Handle (2)
19Spacer, Door
20washer, rubber
20liner, door
20Washer (2)
21Catch, Door Panel
22Button, Plug
23gasket, door (w/clips) (alternate)
23Gasket, Door
24Spacer, Hinge (2) Pin
25Screw 10-24 x 1/2
25Hinge, Oven Door (Auxiliary) (Screw, 8-32 x 3/8 (2) (Top))
25Hinge, Oven Door (
25WPL 865930
27Rack, Oven Regular
28WPL 865885
28FOIL, ALUMINUM OVEN (18“ X 25 )
28Wire, 25` Roll (Black 14 Ga.)
28Wire, 25` Roll (Red 14 Ga.)
28Wire, 25“ Roll (White 14 GA.)
28285006 Whirlpool Spray
28WPW10208653 Whirlpool Insulation
28WPL 799832
28WPL 980513
28WPL 868849
28350956 Whirlpool Spray Assembly
2872017 Whirlpool Appliance Touch-Up Paint White
28WP72107 Whirlpool Touchup
2872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
28Golden Harvest
28350942 Whirlpool Spray Paint
28350930 Whirlpool White Spray Paint
28Paint, Touch-Up 1/2 Oz. (Coffee)
28paint, spray 13 oz. (coffee)
28Wire (12 Ga. 150 c Black)
28WPL 72019
28WPL 865621
28Wire (14 Ga. 200 c Brown)
28WPL 308500
281
28Leveler (Thinner) (2oz.)
28Grease
28Wire (14 Ga. 150 c Yellow)
2818 Ga. 80~c Rating (Red)
28Paint, Spray 13 Oz. (Avocado)
28Touch-Up Oven (1 Oz.)
28242831 Whirlpool Oven Wire
28Wire (14 Ga. 150 c Blue)
28Wire (14 Ga. 150 c Brown)
28Kit, Broiler Pan And Grid
28Wire (14 Ga. 150 c Green)
28Wire (14 Ga. 150 c Orange)
28WPL 799351
