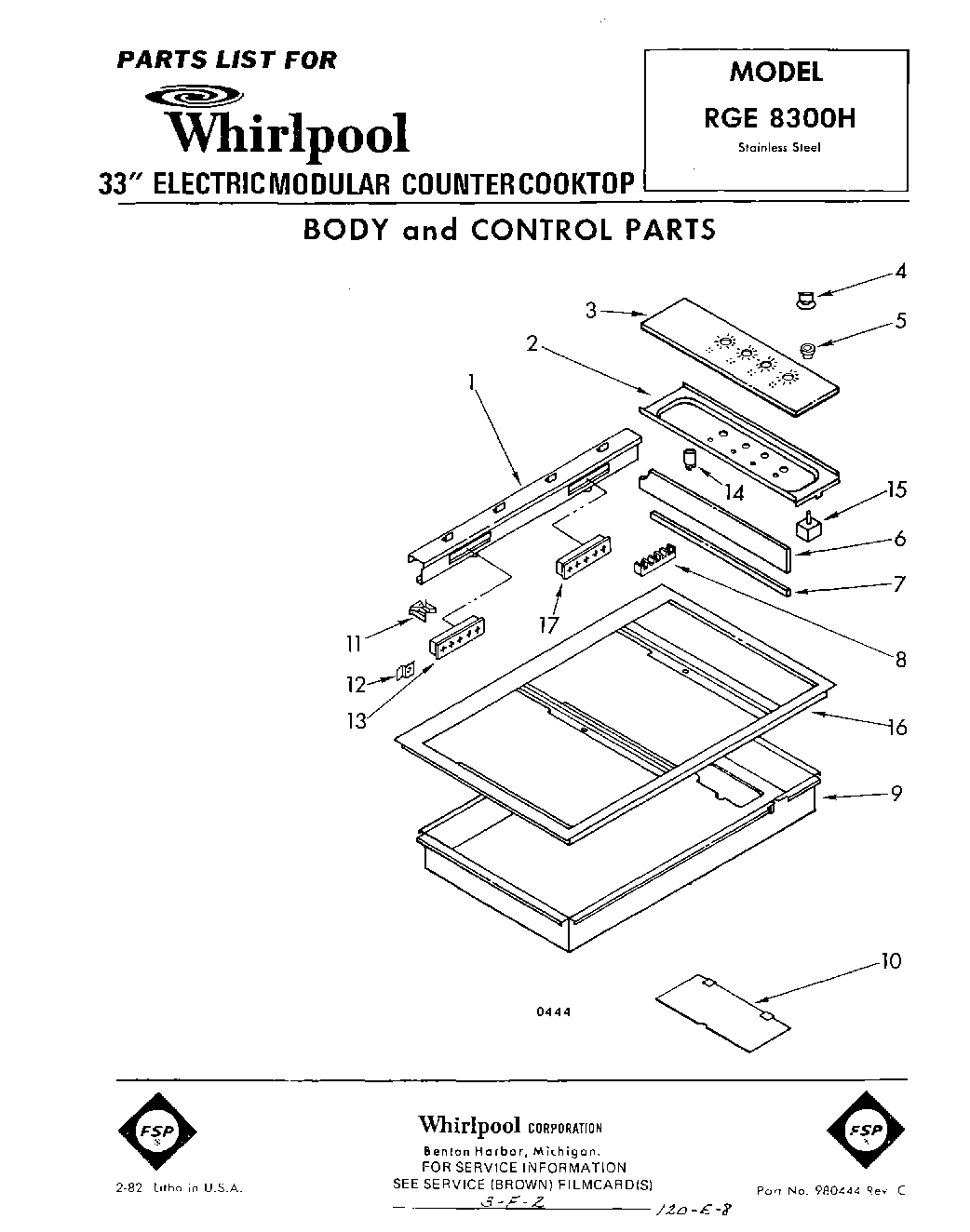

RGE8300H 01 – BODY AND CONTROL

Products

Position	Product
1	Shield, Wire
2	Bracket, Control
3	Glass, Control Panel
3	WPL 866454
4	Knob, Control (2) (Oven Selector & Thermostat)
5	Bushing, Switch (4)
6	Divider, Box
7	Pad, Foam
8	WP8203546 Whirlpool Terminal Block
8	Hex Nut, 10-32 (6)
8	WPL 834649
9	Box, Outer
10	Cover, Access
11	Terminal, Female (10)
12	Clip, Receptacle (4)
12	Model KIH160UK (Cord Only)
13	Receptacle, Female (2)
14	WPL 868433
15	Switch, Infinite (4)
15	WPL 486525
16	Screw 10-24 x 1/2
16	Clip, Frame (4)
16	Frame, Cooktop
16	Screw, 10-24 x 1 (4)
17	List, Repair Parts
17	Instructions, Installation
17	Guide, Use & Care
17	Receptacle, Female
