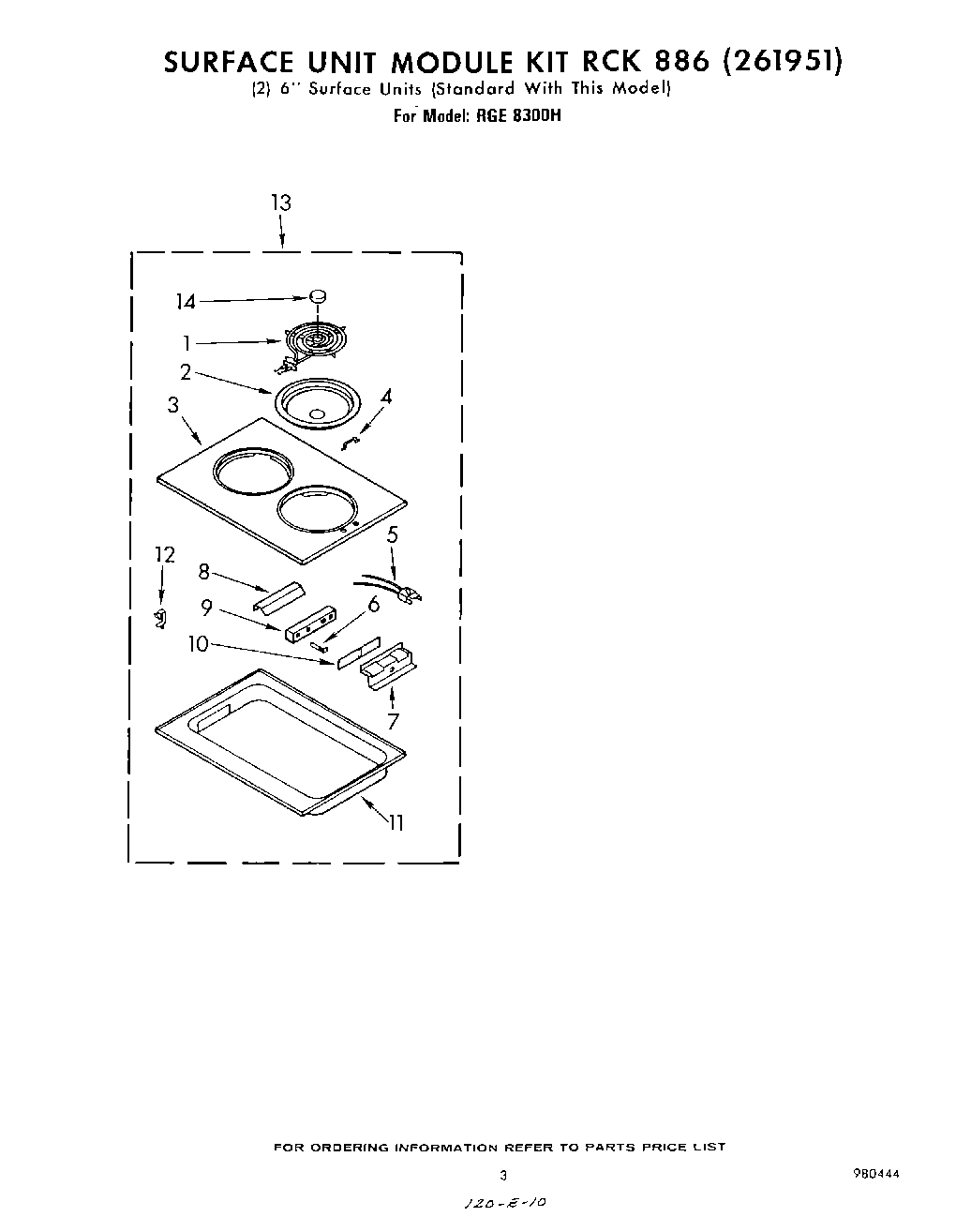

RGE8300H 03 – SURFACE UNIT MODULE KIT RCK886(2619admin2025-04-26T12:34:14+00:00RGE8300H 03 – SURFACE UNIT MODULE KIT RCK886(2619
Products
| Position | Product |
|---|
| 1 | WP660532 Whirlpool Oven Surface Element |
| 2 | Bowl, Surface Unit (6``) (2) |
| 3 | Cooktop, 6/6 |
| 3 | Screw, 8-32 x 3/8 (4) |
| 4 | Handle, Cooktop |
| 5 | BURNER RECEPTACLE KIT |
| 6 | Terminal, Male (4) |
| 7 | Pushnut, 1/8 |
| 7 | Bracket, Ground |
| 8 | Shield, Wire |
| 9 | Receptacle, Male |
| 9 | WPL 486525 |
| 9 | WP486754 Whirlpool Compactor Screw |
| 10 | Insulator, Receptacle |
| 11 | Pan, Surface Unit |
| 12 | Clamp, Wire |
| 13 | Kit, Surface Unit Module (6/6) (Complete) |
| 14 | WPL 868522 |
